Wire Tracer PCE-180 CBN

PCE-180 CBN Wire Tracer
Portable handheld cable locator, fault meter or electrical circuit tester with built-in headphone jack

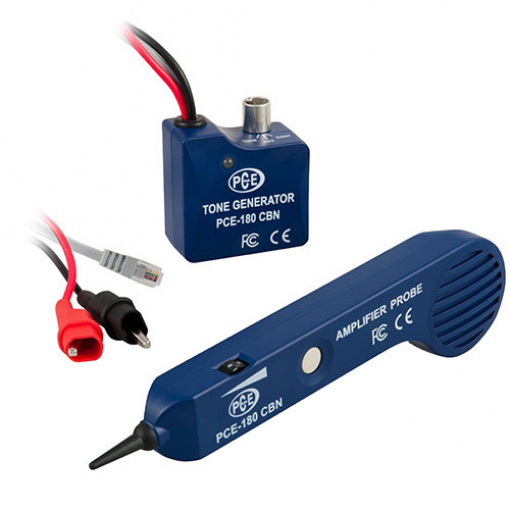

PCE-180 CBN is a handheld, portable, battery-powered wire tracer or cable locator that consists of an amplifier probe and acoustic signal or tone generator. This locating device is designed to detect wires or cables hidden behind walls or insulation, including network and coaxial cables.

– Features a 3-position toggle switch (and 3-color LED) for line polarity, continuity and voltage testing
– Adjustable volume and selection of either pulsing or continuous tones
– Recessed on / off button prevents accidental activation and battery drain
– Comes with red and black test leads with alligator clips
– Includes 2-year warranty against manufacturer defects

– Uses an acoustic signal to detect wires and cables, including network and coaxial cables
– Compatible with other signal or tone generators used to detect wires or cables
– Has a standard 4-conductor modular cord and plug
– Contains a built-in headphone jack
– Battery powered





Detection method: Acoustic signal
Tones: Pulsing or continuous
Connections: RJ-11, alligator clips and headphone jack
Power supply: 2 x 9 V batteries
Certifications: CE, IEC / EN 61010-1:01
Operating conditions: 0 … +50 °C / +32 … +122 °F and 5 … 95% rh
Dimensions: 60 x 65 x 30 mm / 2.36 x 2.56 x 1.18″ signal generator and 245 x 60 x 30 mm / 9.65 x 2.36 x 1.18″ amplifier probe
Weight: 120 g / 0.26 lb signal generator and 140 g / 0.31 lb amplifier probe
