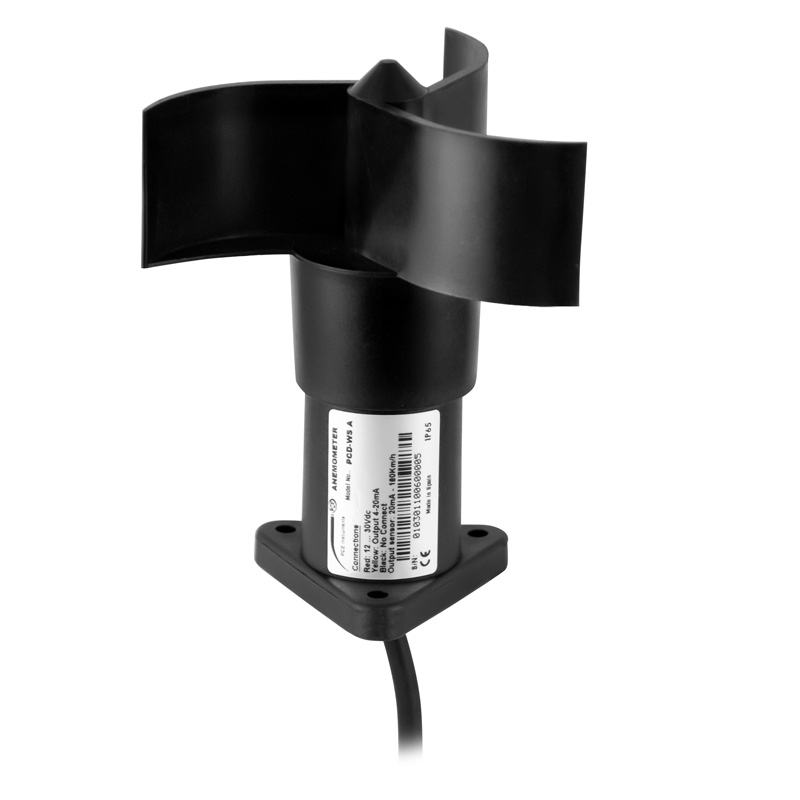

Wind Speed Meter / Wind Speed Sensor PCE-WS CR

The Wind Speed Meter / Wind Speed Sensor impresses with its compact design and various output signals. The wind speed meter can be used for applications in warning technology, building automation and home technology. Depending on the wind speed meter, a 4 … 20 mA, 0 … 10 V, Modbus or pulse output is available. The wind speed meter is designed as a star, so that operation independent of the wind direction is guaranteed.

The wind speed meter is made of robust plastic and is therefore resistant to rust and corrosion. The wind speed meter is also protected to IP65. The design of the wind speed meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 … 164.04 ft/s, 0.8 … 50 m / s. The wind speed meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the wind speed meter is optionally available.

– Robust PA plastic housing
– IP 65 protection
– mA, V, pulse or Modbus output
– Long lifetime
– Direct measurement of wind speed
– Measurement from 2.62 ft/s, 0.8 m/s





Measuring range	0.8 m/s … 50 m/s, 2.62 … 164.04 ft/s
Measurement from	≤0.8 m/s, ≤2.62 ft/s
Output	Adjustable relay
Accuracy	<4 m/s: ± 0.27 m/s, <13.12 ft/s: ± 0.89 ft/s
	>4 m/s: ± 3 %, >13.12 ft/s: ± 3%
Operating voltage	12 … 24 V DC
Operating temperature range	-20 … +80 °C, -4 … +185 ° F at ≤95 % rel. humidity
Maximum wind speed	55 m/s, 180.45 ft/s, 123 mph
Electrical connection	20 m, 65 ft connection cable
Protection class	IP65
