Wind Speed Alarm / Wind Alarm Controller KWS 1

KWS1

หมวดหมู่: Wind Speed Alarm / Wind Alarm Controller

Simple wind meter with pulse output / With wind direction sensor /
suitable for PCE-WL1 und PCE-WL2

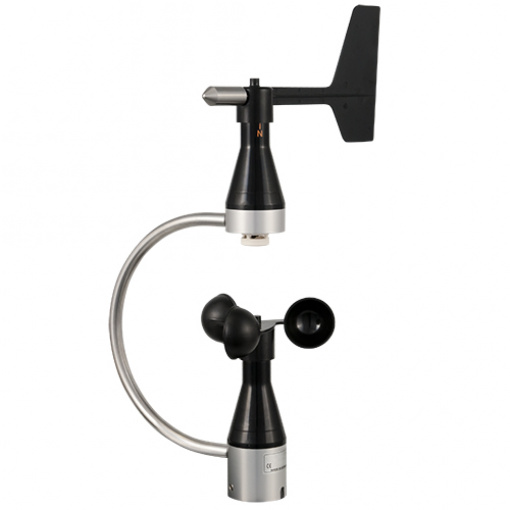

Wind meter KWS1 for, for example, PCE-WL windlogger. Simple cross-hair anemometer with pulse output and wind direction sensor

– Basic wind transmitter
– 3 m connection cable
– Easy assembly
– Compatible with PCE-WL 1 and PCE-WL 2

Technical Specification
Output wind speed	0 … 100 Hz
Measuring range wind speed	0.9 … 40 m/s
Accuracy wind speed	± 0.5 m/s or 5 % v. M
Load wind speed	max. 60 m/s short-term
Contact load	10 VA, max. 42 V DC, max. 0.4 A
Measuring range wind direction	5 … 355 °
Sensor Wind direction	0 … 1 kOhm
Assembly	Pipe mounting 31 mm
Environmental temperature	-25 … +60 °C (with ice-free)
Cable	3 m; LiYY 4 x 0.5 mm²
Protection class	IP54
Dimensions	418 x 30mm
Weight	ca. 1000g
