Track-It™ Barometric/Temperature Data Logger

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

DESCRIPTION

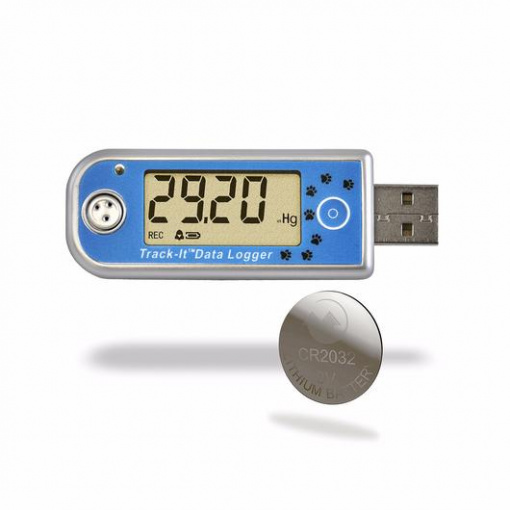

The Track-It Barometric Pressure/Temperature Data Logger is a battery-alone compact data logger that records up to 64,000 samples of barometric pressure and/or temperature data. The unit is easily configured using the included Track-It™ Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The onboard data storage is non-volatile so data will not be lost in the event of a depleted battery. Barometric (also known as atmospheric) pressure can be displayed in a variety of engineering units. It can be used as an altimeter. The information displayed on the LCD is user-selectable and can be sequenced by pressing the logger button. A multicolored LED indicator notifies the user of alarms or general activity. A splash-proof protective cover protects the logger when in use. Additionally, the logger can be used to record external inputs using optional Track-It DC Voltage and Current modules.

Typical Uses

Weather
Environmental Comfort
Health and Well Being
Building Management
Healthcare Facilities
Laboratory
Altitude
Manufacturing
Transportation
Aviation

FEATURES

Up to 64,000 samples per record
Small compactcompact size
Integral USB interface (no custom cable!)
Free Android Transporter App
Free Windows software
Long-life battery option
Temperature range –4 to 185°F/-20 to 85°C
Accepts external DCV/DCI inputs
High accuracy and repeatability
Multiple user-selectable displays
NIST Calibration Certificate available
Alarm setpoints
Multiple engineering units
Protective rubber boot included

SPECIFICATIONS*

General

Record	Sample Rates: user-configured 1 every 2 seconds up to 1 every 24 hours Number of ofSamples: 32,000 or 64,000 (depends on setup)
Record Trigger	Two independent triggers Multiple trigger modes: instantaneous, button control, on alarm, time and date (start and stop), day of week
Record Mode	Fill to end of memory; cyclic, number of samples, time duration
Display	4-digit LCD user programmable: indication of data value, eng units, alarms, record mode, battery condition, time/date, memory used Logger display units: kPa, PSI, bar, mbar, inches Hg, mm Hg, feet, meters Max logger display: 9999
LED	User programmable: indication of alarms, recording, triggered
Button	User programmable: view display, record on/off, reset alarms
Alarms	2 user-programmable alarms (high or low)
Communication	Direct USB connection
Software	Track-It™ Software — program device, view data (historic or real-time), export to Excel; simple and advanced modes
Battery	Coin Cell Battery option: Lithium CR2032 Life: 12-15 months @ 1-minute sample rateHi-Energy Battery option: EF651625 Life: 3 to 5 years @ 1-minute sample rate
Dimensions LxHxW	3.66 x 0.75 x 1.16 in. (9.29 x 1.91 x 2.95cm)
