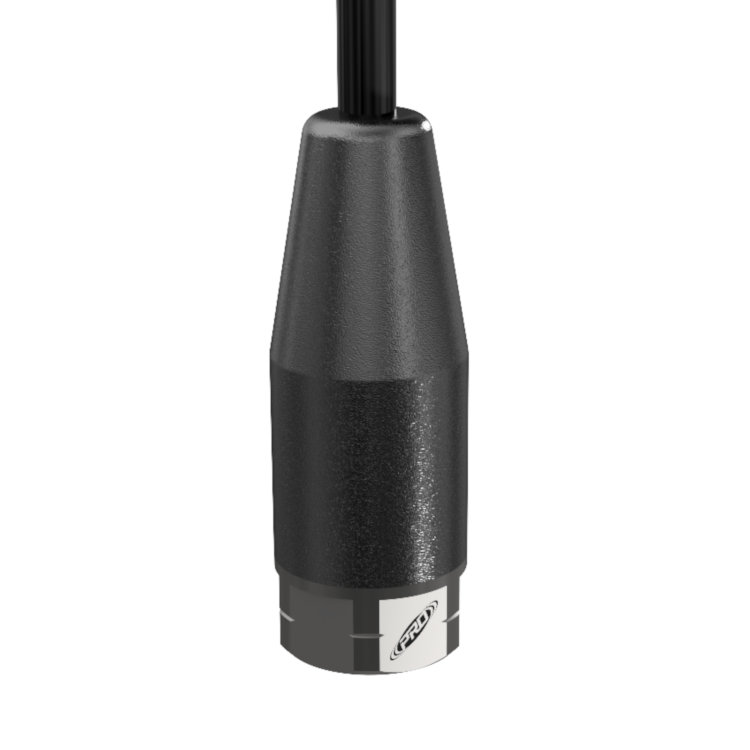

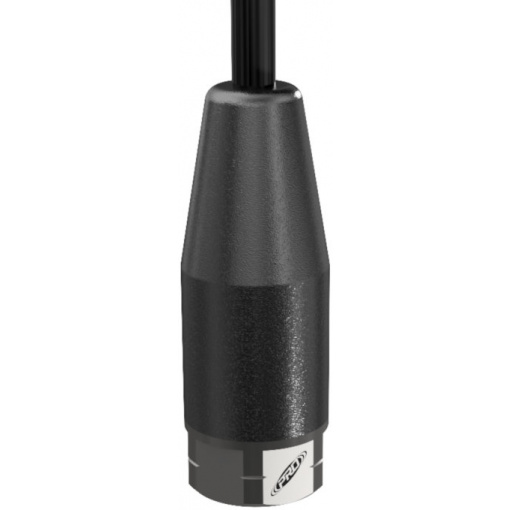

MEB211 – Lightweight, Molded Accelerometer, 100 mV/g Top Exit, Integral Cable, 10-32 Mounting, Premium, High Frequency

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 30-1,800,000 CPM
• Dynamic Range: ± 50g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
• Case Material: 316L Stainless Steel
• Connector: 10-32
• Max Temp: 250°F (121°C)

Options

MEB211-010-Z�
Lightweight, molded accelerometer; 100 mV/g; Top Exit; Integral Cable; 10-32 Mounting; Premium, High Frequency; 10ft Length; Blunt Cut;

MEB211-020-Z�
Lightweight, molded accelerometer; 100 mV/g; Top Exit; Integral Cable; 10-32 Mounting; Premium, High Frequency; 20ft Length; Blunt Cut;

MEB211-030-Z�
Lightweight, molded accelerometer; 100 mV/g; Top Exit; Integral Cable; 10-32 Mounting; Premium, High Frequency; 30ft Length; Blunt Cut

MEB211-040-Z �
Lightweight, molded accelerometer; 100 mV/g; Top Exit; Integral Cable; 10-32 Mounting; Premium, High Frequency; 40ft Length; Blunt Cut;

MEB211-050-Z �
Lightweight, molded accelerometer; 100 mV/g; Top Exit; Integral Cable; 10-32 Mounting; Premium, High Frequency; 50ft Length; Blunt Cut;
