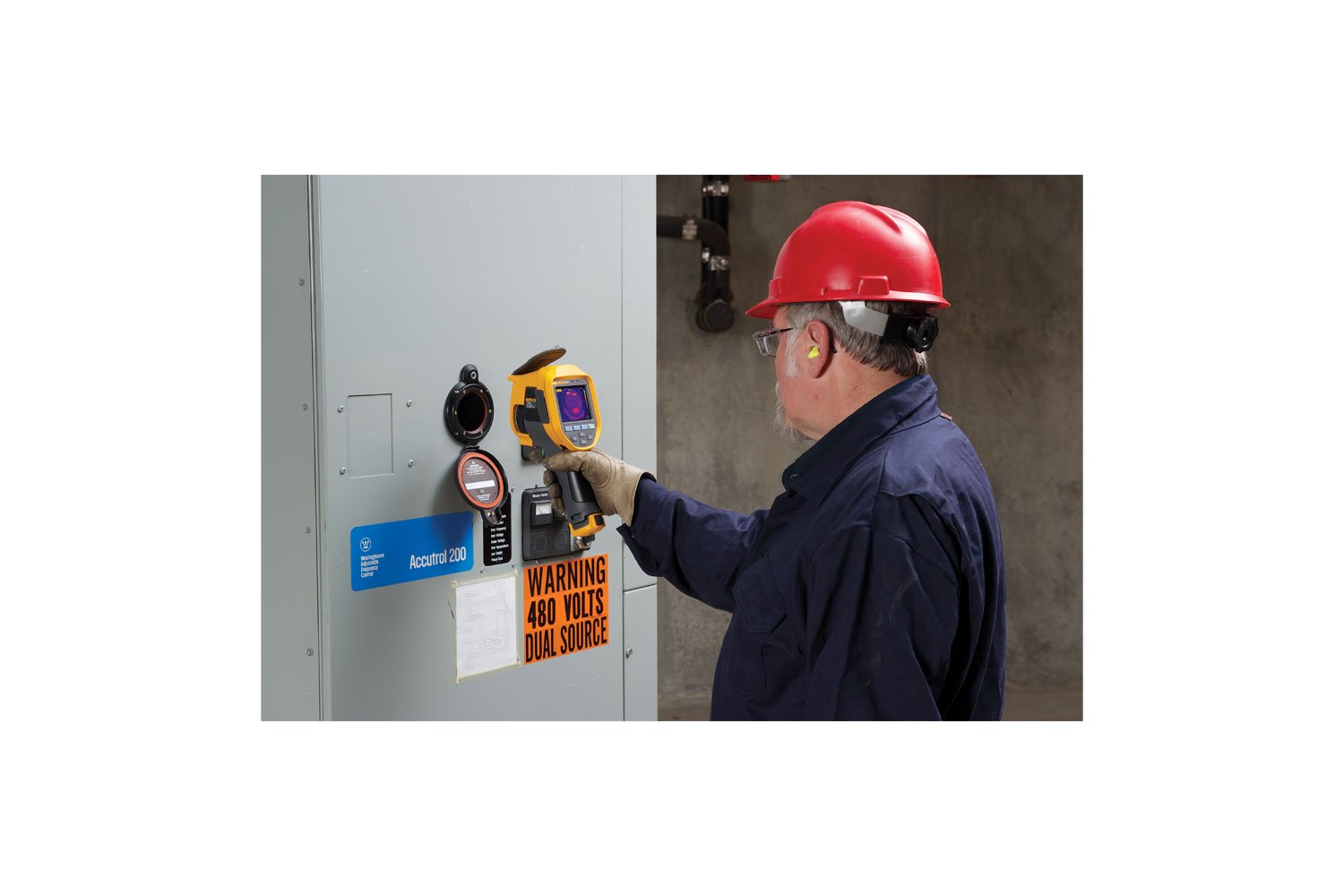

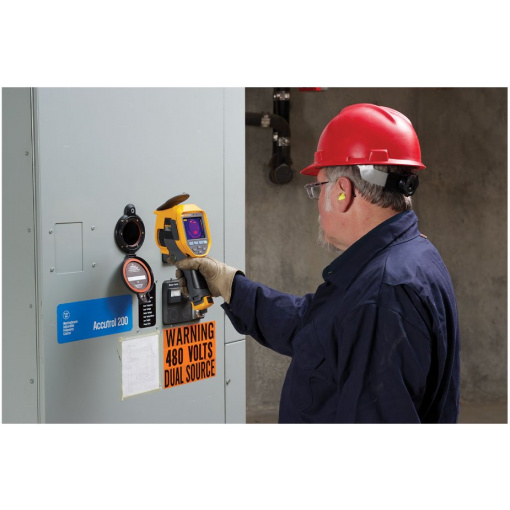

Specifications: Fluke CV301 ClirVu® 75 mm (3 in) Infrared Window
General Specifications | |
Size | 75 mm (3 in) |
Voltage range | Any |
NEMA environment type | Type 4/12 (indoor/outdoor) |
AutoGround™ | Yes |
ClirVu® optic | Yes |
Operating temperature | -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent |
Compatible with all Fluke cameras | Yes |
Jam nut locking system | Yes |
Cover and fastener permanently attached | Yes |
Single-hole install | Yes |
Hand turn and security key door latch options | Yes |
Visual inspection and fusion capable | Yes |
Short/Mid/Long-wave IR and UV capable | Yes |
Ratings and Testing | |
Arc-tested (IEEE C37.20.7) | 63 kA for 30 cycles @ 60 Hz at KEMA |
UL 50 / NEMA environmental rating | NEMA Type 4/12 |
UL1558 | Yes |
CSA C22.2 No. | Yes |
CSA type rating | Type 4 |
IP rating | IP67 at TUV |
Lloyds register | Up to 11 kV marine switchgear, indoor or outdoor (offshore only) |
Vibration rating | IEC60068-2-6 at TUV |
Humidity rating | IEC60068-2-3 at TUV |
Install | |
Actual mounting hole diameter required | 89.89 mm (3.539 in) |
Greenlee® punch kit = punch/die | 739BB = 1431AV/1432AV |
Recommended max panel thickness | 10 gage |
Overall window height | 141.5 mm (5.57 in) |
Overall window width | 111.5 mm (4.39 in) |
Overall window thickness | 16.2 mm (0.64 in) |
Door latch | Security Key |
Optics | |
Optic insert diameter | 75 mm (2.96 in) |
Viewing aperture diameter | 67.95 mm (2.675 in) |
Viewing aperture area | 3626 mm2 (5.62 in2) |
Thickness | 2 mm (0.08 in) |
Other | |
Warranty | Lifetime replacement against manufacturing defects |
