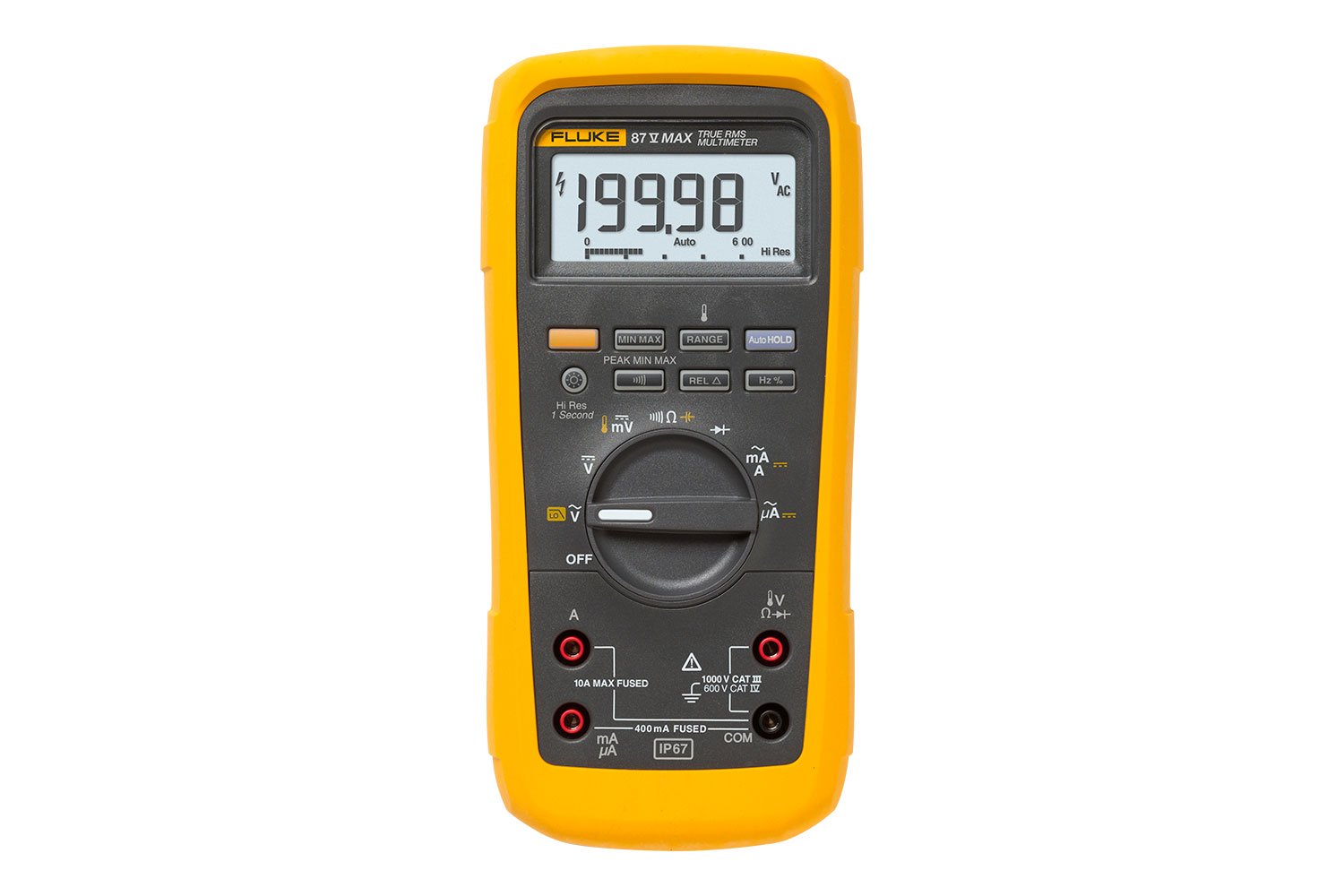

Fluke 87V MAX True-rms Digital Multimeter

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 87V MAX True-rms Digital Multimeter

Electrical Specifications
DC Voltage	Range	0.1 mV to 1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	0.1 mV
AC Voltage	Range	0.1 mV to 1000 V
	Accuracy	±(0.7% + 4) true-rms
	AC bandwidth	20 kHz with low pass filter; 3 dB @ 1 kHz
	Maximum resolution	0.1 mV
DC Current	Range	0.1 μA to 10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.1 µA
AC Current	Range	0.1 μA to 10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) true-rms
	Maximum resolution	0.1 µA
Resistance	Range	0.1 Ω to 50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Range	0.01 nF to 9999 μF
	Accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Range	0.5 Hz to 199.99 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per kHz + 0.1%)
	Maximum resolution	0.1%
Temperature measurement range	–200.0 °C to 1090 °C –328.0 °F to 1994.0 °F excluding probe
80 BK temperature probe	–40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater –40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode test	Range	2 V
	Resolution	0.001V
	Accuracy	±(1% + 1)
Diagnostics and data storage	Peak Min/Max	250 μS
	Min/Max/Avg	Yes
	Reading hold/Auto (Touch) Hold	Yes
	Relative reference	Yes
Display	Digital	6000 counts updates 4/second 19,999 counts in high–resolution mode
	Analog bar graph	32 segments, updates 40/second
	Backlight	Two level
Low pass filter (VFD measurements)	Yes
Input Alert™	Yes
Safety Specifications
Safety rating	IEC61010-1: Pollution Degree 2 IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V
Agency approvals	CE, CSA
Mechanical and General Specifications
IP rating	IEC 60529: IP67
Power	Three AA batteries. 800 hours typical, without backlight
Size	6.0 x 10.1 x 21.5 cm (with holster)
Weight	698.5 g (with holster)
Warranty	1 Year
Environmental Specifications
Operating temperature	-15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C
Storage temperature	-40 °C to + 60 °C
Humidity (without condensation)	0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)
Operating altitude	2000 m
