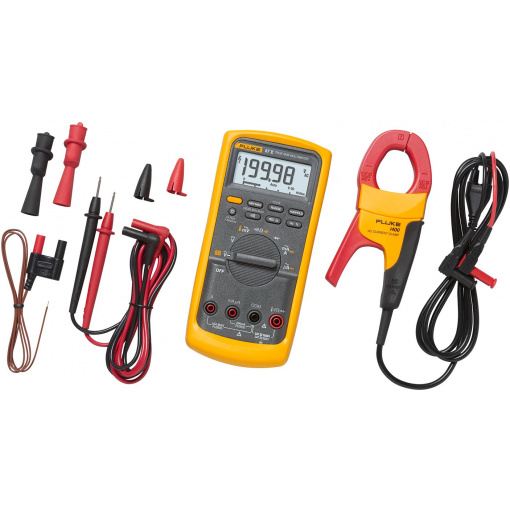

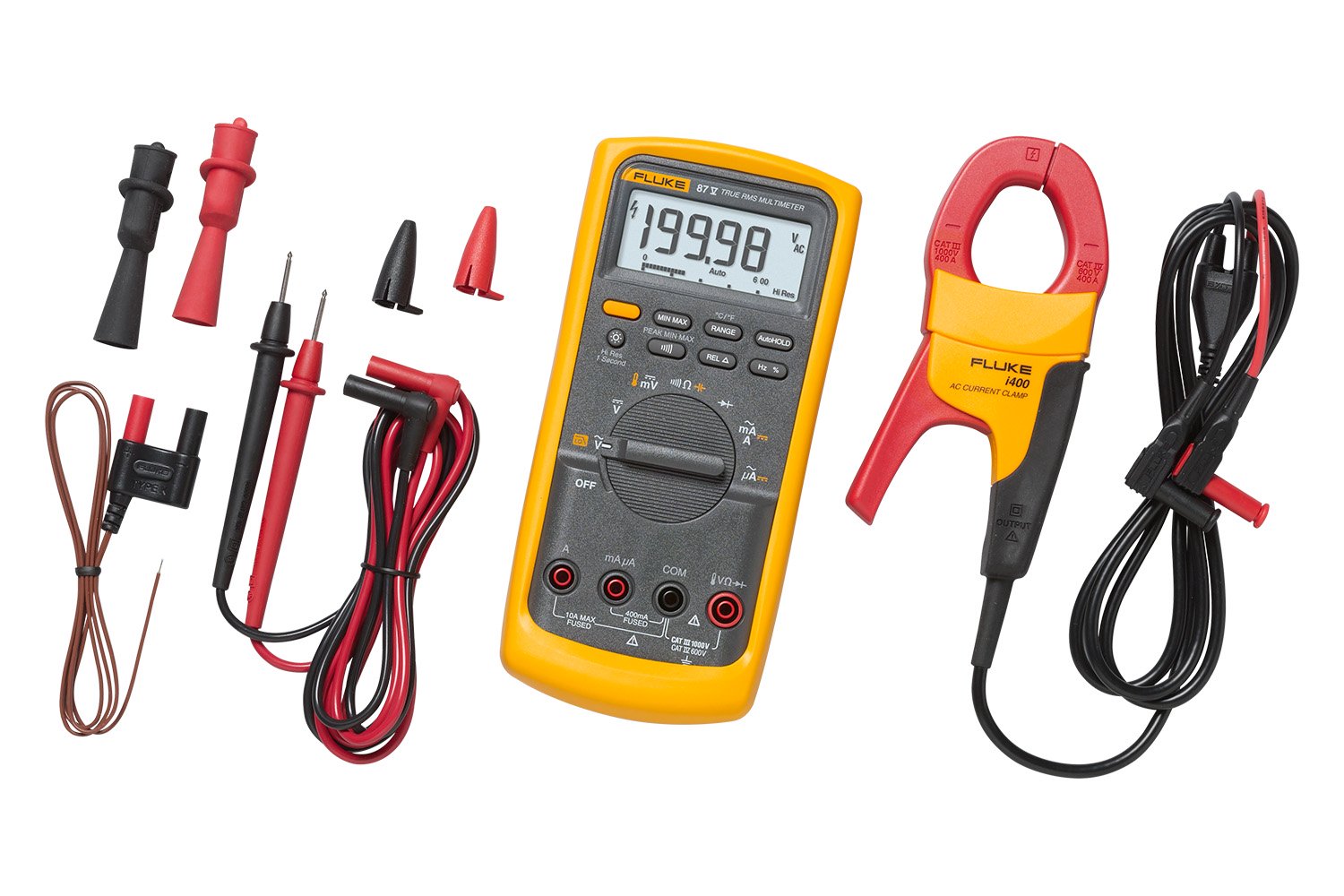

Fluke 87V IMSK Industrial Multimeter Service Combo Kit

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 87V IMSK Industrial Multimeter Service Combo Kit

Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 dB @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per kHz + 0.1%)
	Maximum resolution	0.1%
Temperature measurement	–200.0 °C – 1090 °C –328.0 °F – 1994.0 °F excluding probe
80 BK temperature probe	–40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20 °C to + 55 °C
Storage temperature	–40 °C to + 60 °C
Humidity (without condensation)	0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	CE, CSA, RCM
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g 624 g – with holster
Display	Digital	6000 counts updates 4/sec. 19,999 counts in high–resolution mode
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	1 Year
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument

Specifications: Fluke i400 AC Current Clamp

Specifications
Nominal current range	400 A
Continuous current range	1 A – 400 A
Maximum non-destructive current	1000 A
Lowest measurable current	1 A
Basic accuracy	2% + 0.06 A
	(45-400 Hz)
	(% reading + floorspec)
Useable frequency	5 Hz – 20 kHz
Output level(s)	1 mA/A
Safety Specifications
Safety	CAT IV 600 V, CAT III, 1000 V
Maximum voltage	1000 V AC rms from earth to ground, in compliance with EN61010
Mechanical and General Specifications
Warranty	1 Year
Maximum conductor diameter	32 mm (1.25 in)
Maximum conductor size (busbar)	750 MCM
Output cable length	1.5 m (59 in)
Shrouded banana plugs	Yes
