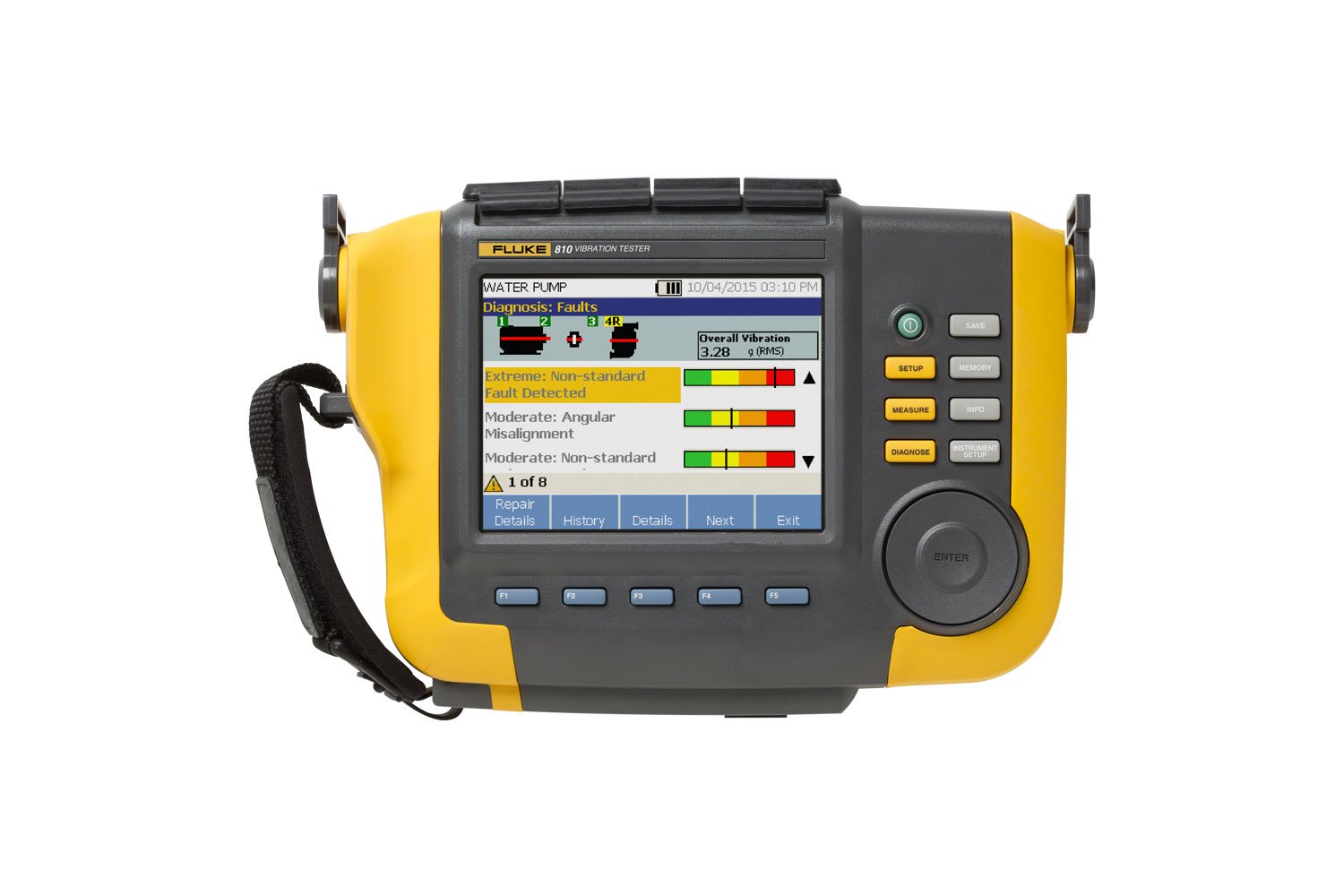

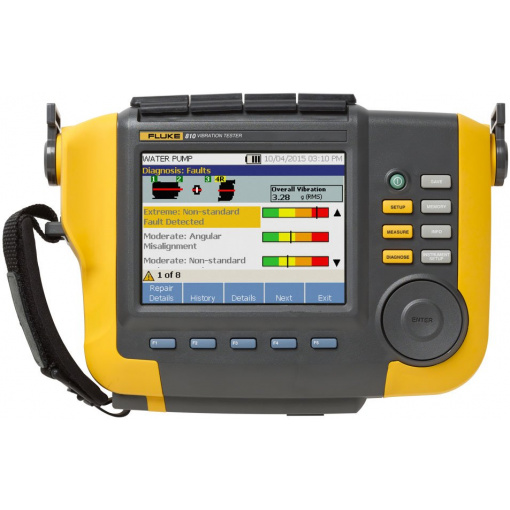

Fluke 810 Vibration Tester

Name: Fluke 810 Vibration Tester
SKU: 7548
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 810 Vibration Tester

Diagnostic Specifications
Standard Faults	Unbalance, looseness, misalignment and bearing failures
Analysis For	Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
Motor Rotational Speed Range	200 rpm to 12000 rpm
Diagnosis Details	Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra

Electrical Specifications
Ranging	Automatic
A/D Converter	4 channel, 24 bit
Usable Bandwidth	2 Hz to 20 kHz
Sampling	51.2 Hz
Digital Signal Processing Functions	Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging
Sampling Rate	2.5 kHz to 50 kHz
Dynamic Range	128 dB
Signal To Noise Ratio	100 dB
FFT Resolution	800 lines
Spectral Windows	Hanning
Frequency Units	Hz, orders, cpm
Amplitude Units	in/sec, mm/sec, VdB (US), VdB* (Europe)
Non-volatile Memory	SD micro memory card, 2 GB internal + user accessible slot for additional storage

General Specifications
Dimensions (H x D x W)	18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in)
Weight (With Battery)	1.9 kg (4.2 lb)
Display	¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight
Input/Output Connections	Triaxial sensor connection	4 pin M12 connector
	Single axis sensor connection	BNC connector
	Tachometer Connection	Mini DIN 6 pin connector
	PC Connection	Mini ‘B’ USB (2.0) connector
Battery	Battery type	Lithium-ion, 14.8 V, 2.55 Ah
	Battery charging time	Three hours
	Battery discharge time	Eight hours (under normal conditions)
AC Adapter	Input voltage	100 VAC to 240 VAC
AC Adapter	Input frequency	50/60 Hz
Operating System	WinCE 6.0 Core
Language Support	English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish
Warranty	1 year

Environmental Specifications
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	10% to 95% RH (non-condensing)
Agency Approvals	CHINA RoHS, CSA, CE, C TICK, WEEE
Electromagnetic Compatibility	EN 61326-1:2006, EN 61010:1:2001 2nd ed.

Sensor Specifications
Sensor Type	Accelerometer
Sensitivity	100 mV/g (±5%, 25°C)
Acceleration Range	80 g peak
Amplitude Nonlinearity	1%
Frequency Response	Z	2 – 7,000 Hz ±3dB
Frequency Response	X, Y	2 – 5,000 Hz ±3dB
Power Requirement (IEPE)	18 VDC to 30 VDC, 2 mA to 10 mA
Bias Output Voltage	12 VDC
Grounding	Case grounded
Sensing Element Design	PZT ceramic / shear
Case Material	316L stainless steel
Mounting	10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength)
Output Connector	4-Pin, M12
Mating Connector	M12 – F4D
Non-volatile Memory	TEDS 1451.4 compatible
Vibration Limit	500 g peak
Shock Limit	5000 g peak
Electromagnetic Sensitivity, Equivalent g	100 μg/gauss
Sealing	Hermetic
Temperature Range	-50°C to 120°C (-58°F to 248°F) ±7%
Warranty	One-year

Tachometer Specifications
Dimensions (D x W)	2.86 x 12.19 cm (1.125 x 4.80 in)
Weight	96 g (3.4 oz) with cable
Power	Powered by 810 Vibration Tester
Detection	Laser Diode Class 2
Range	6.0 to 99,999 rpm
Accuracy	6.0 to 5999.9 rpm	±0.01% and ±1 digit
Accuracy	5999.9 to 99999 rpm	±0.05% and ±1 digit
Resolution	0.1 rpm
Effective Range	1 cm to 100 cm (0.4 in to 39.27 in)
Response Time	1 second (> 60 rpm)
Controls	Measure on/off transparent button
Interface	6 Pin Mini DIN
Cable Length	50 cm (19.586 in)
Warranty	1 year
Tachometer Accessories	Reflective tape	1.5 x 52.5 cm (0.59 x 20.67 in)

Viewer PC Software
Minimum Hardware Requirements	1 GB RAM
Operating System Requirements	Windows 7, 8.1, and 10
