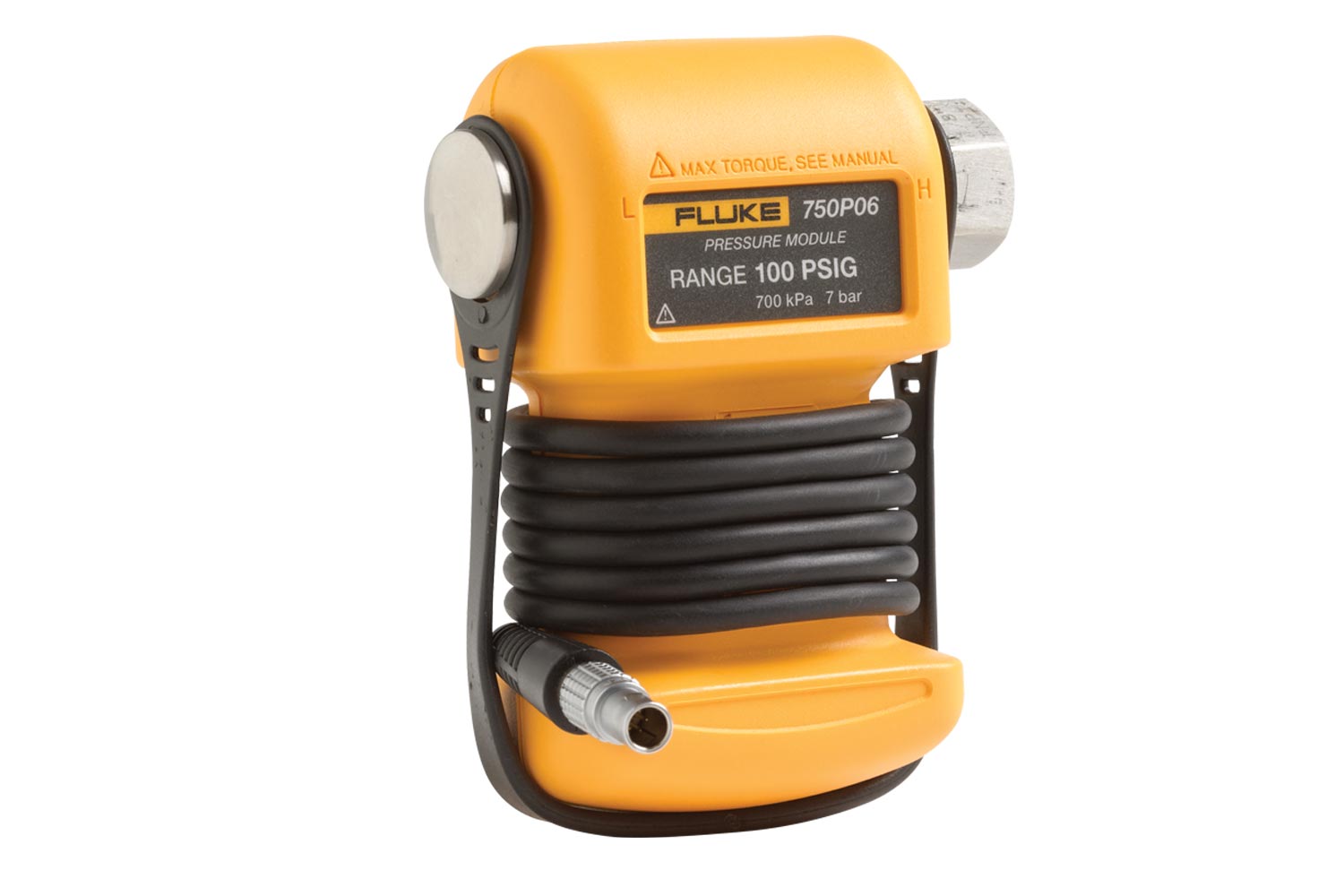

FLUKE-750P27EX Pressure Modules
Availability : กรุณาติดต่อสอบถาม
Specifications: Fluke 750P Series Pressure Modules
| Differential Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750P00 | 0 to 1 inH2O (0 to 2.5 mBar) | 30X | Dry air | Dry air | |
| 750P3IN | 0 to 3 Inch H2O (0 to 7.5 mbar) | 10X | Dry air | Dry air | |
| 750P5IN | 0 to 5 Inch H2O (0 to 12.5 mbar) | 6X | Dry air | Dry air | |
| 750P017 | 0 to 10 inH2O (0 to 25 mBar) | 3X | Dry air | Dry air | |
| 750P02 | 0 to 1 psi (0 to 70 mBar) | 3X | Dry air | Dry air | |
| 750P22 | 0 to 1 psi (0 to 70 mBar) | 3X | 316 SS | Dry air | |
| 750P03 | 0 to 5 psi (0 to 350 mBar) | 3X | Dry air | Dry air | |
| 750P23 | 0 to 5 psi (0 to 350 mBar) | 4X | 316 SS | Dry air | |
| 750P04 | 0 to 15 psi (0 to 1 bar) | 3X | Dry air | Dry air | |
| 750P247 | 0 to 15 psi (0 to 1 bar) | 4X | 316 SS | Dry air | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750P00 | ±0.15% | ±0.3% | ±0.35% | ±0.25% | ±0.30% |
| 750P3IN | ±0.15% | ±0.3% | ±0.35% | ±0.25% | ±0.30% |
| 750P5IN | ±0.15% | ±0.3% | ±0.35% | ±0.25% | ±0.30% |
| 750P017 | ±0.1% | ±0.2% | ±0.3% | ±0.15% | ±0.25% |
| 750P02 | ±0.050% | ±0.1% | ±0.15% | ±0.075% | ±0.125% |
| 750P22 | ±0.050% | ±0.1% | ±0.15% | ±0.075% | ±0.125% |
| 750P03 | ±0.02% | ±0.04% | ±0.05% | ±0.035% | ±0.04% |
| 750P23 | ±0.02% | ±0.04% | ±0.05% | ±0.035% | ±0.04% |
| 750P04 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P247 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| Gage Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750P057 | 0 to 30 psi (0 to 2 bar) | 4X | 316 SS | N/A | |
| 750P067 | 0 to 100 psi (0 to 7 bar) | 4X | 316 SS | N/A | |
| 750P277 | 0 to 300 psi (0 to 20 bar) | 4X | 316 SS | N/A | |
| 750P07 | 0 to 500 psi (0 to 35 bar) | 4X | 316 SS | N/A | |
| 750P08 | 0 to 1000 psi (0 to 70 bar) | 3X | 316 SS | N/A | |
| 750P097 | 0 to 1500 psi (0 to 100 bar) | 3X | 316 SS | N/A | |
| 750P2000 | 0 to 2000 psi (0 to 140 bar) | 3X | 316 SS | N/A | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750P057 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P067 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P277 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P07 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P08 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P097 | ±0.0175% | ±0.035% | ± 0.045% | ±0.03% | ±0.04% |
| 750P2000 | ±0.0175% | ±0.035% | ± 0.045% | ±0.03% | ±0.04% |
| High Pressure Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750P29 | 0 to 3000 psi (0 to 200 bar) | 3X | 316 SS | N/A | |
| 750P30 | 0 to 5000 psi (0 to 340 bar) | 3X | 316 SS | N/A | |
| 750P31 | 0 to 10000 psi (0 to 700 bar) | 2X | 316 SS | N/A | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750P29 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P30 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P31 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| Absolute Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750PA3 | 0 to 5 psia (0 to 350 mBar) | 4X | 316 SS | N/A | |
| 750PA47 | 0 to 15 psia (0 to 1 bar) | 4X | 316 SS | N/A | |
| 750PA5 | 0 to 30 psia (0 to 2 bar) | 4X | 316 SS | N/A | |
| 750PA6 | 0 to 100 psia (0 to 7 bar) | 4X | 316 SS | N/A | |
| 750PA27 | 0 to 300 psia (0 to 20 bar) | 4X | 316 SS | N/A | |
| 750PA7 | 0 to 500 psia (0 to 35 bar) | 4X | 316 SS | N/A | |
| 750PA8 | 0 to 1000 psia (0 to 70 bar) | 3X | 316 SS | N/A | |
| 750PA9 | 0 to 1500 psia (0 to 100 bar) | 3X | 316 SS | N/A | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750PA3 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA47 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA5 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA6 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA27 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA7 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA8 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA9 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| Vacuum Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750PV3 | -5 psi (-350 mBar) | 4X | 316 SS | Dry air | |
| 750PV4 | -15 psi (-1 bar) | 4X | 316 SS | Dry air | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750PV3 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PV4 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| Dual Range Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750PD2 | -1 to 1 psi (-70 to 70 mBar) | 4X | 316 SS | Dry air | |
| 750PD3 | -5 to 5 psi (-350 to 350 mBar) | 4X | 316 SS | Dry air | |
| 750PD10 | -10 to 10 psi (-700 to 700 mBar) | 4X | 316 SS | Dry air | |
| 750PD4 | -15 to 15 psi (-1 to 1 bar) | 4X | 316 SS | Dry air | |
| 750PD5 | -15 to 30 psi (-1 to 2 bar) | 4X | 316 SS | — | |
| 750PD50 | -15 to 50 psi (-1 to 3.5 bar) | 4X | 316 SS | — | |
| 750PD6 | -15 to 100 psi (-1 to 7 bar) | 4X | 316 SS | — | |
| 750PD7 | -15 to 200 psi (-1 to 14 bar) | 4X | 316 SS | — | |
| 750PD27 | -15 to 300 psi (-1 to 20 bar) | 4X | 316 SS | — | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750PD2 | ±0.05% | ±0.1% | ±0.15% | ±0.075% | ±0.125% |
| 750PD3 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PD10 | ±0.025% | ±0.05% | ±0.07% | ±0.04% | ±0.06% |
| 750PD4 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ± 0.04% |
| 750PD5 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD50 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD6 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD7 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD27 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| Reference Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750R045 | 0 to 15 psi (0 to 1 bar) | 3X | Dry air | Dry air | |
| 750R065 | 0 to 100 psi (0 to 7 bar) | 4X | 316 SS | — | |
| 750R27 | 0 to 300 psi (0 to 20 bar) | 4X | 316 SS | — | |
| 750R07 | 0 to 500 psi (0 to 35 bar) | 4X | 316 SS | — | |
| 750R085 | 0 to 1000 psi (0 to 70 bar) | 3X | 316 SS | — | |
| 750R29 | 0 to 3000 psi (0 to 200 bar) | 3X | 316 SS | — | |
| 750R30 | 0 to 5000 psi (0 to 340 bar) | 3X | 316 SS | — | |
| 750R315 | 0 to 10000 psi (0 to 700 bar) | 2X | 316 SS | — | |
| 750RD5 | -15 to 30 psi (-1 to 2 bar) | 4X | Dry air | — | |
| 750RD65 | -12 to 100 psi (-0.8 to 7 bar) | 4X | 316 SS | — | |
| 750RD27 | -12 to 300 psi (-0.8 to 20 bar) | 4X | 316 SS | — | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750R045 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R065 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R27 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R07 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R085 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R29 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R30 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R315 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750RD5 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750RD65 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750RD27 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 1. Total uncertainty, % of full span for temperature range 0°C to +50°C, one year interval. Total uncertainty, 1.0% of full span for temperature range -10°C to 0°C, one year interval. No 6 month specification available for range -10°C to 0°C. 2. “Non-corrosive gasses” indicates Dry air or non-corrosive gas as compatible media. “Stainless Steel 316-SS” indicates media compatible with Type 316 Stainless Steel. 3. Specifications % of Full Span unless otherwise noted. 4. Reference Uncertainty is the specification for as left data for 24 hours. 5. When reference class modules are used with fixed resolution products (717, 718, 719 series, 725 and 726) calibrators add ±1 count to the overall accuracy specification. 6. Burst rating specification refers to the multiplier times full scale of the module for the rated burst pressure. 7. Intrinsically Safe pressure module available in this pressure range. | |||||
