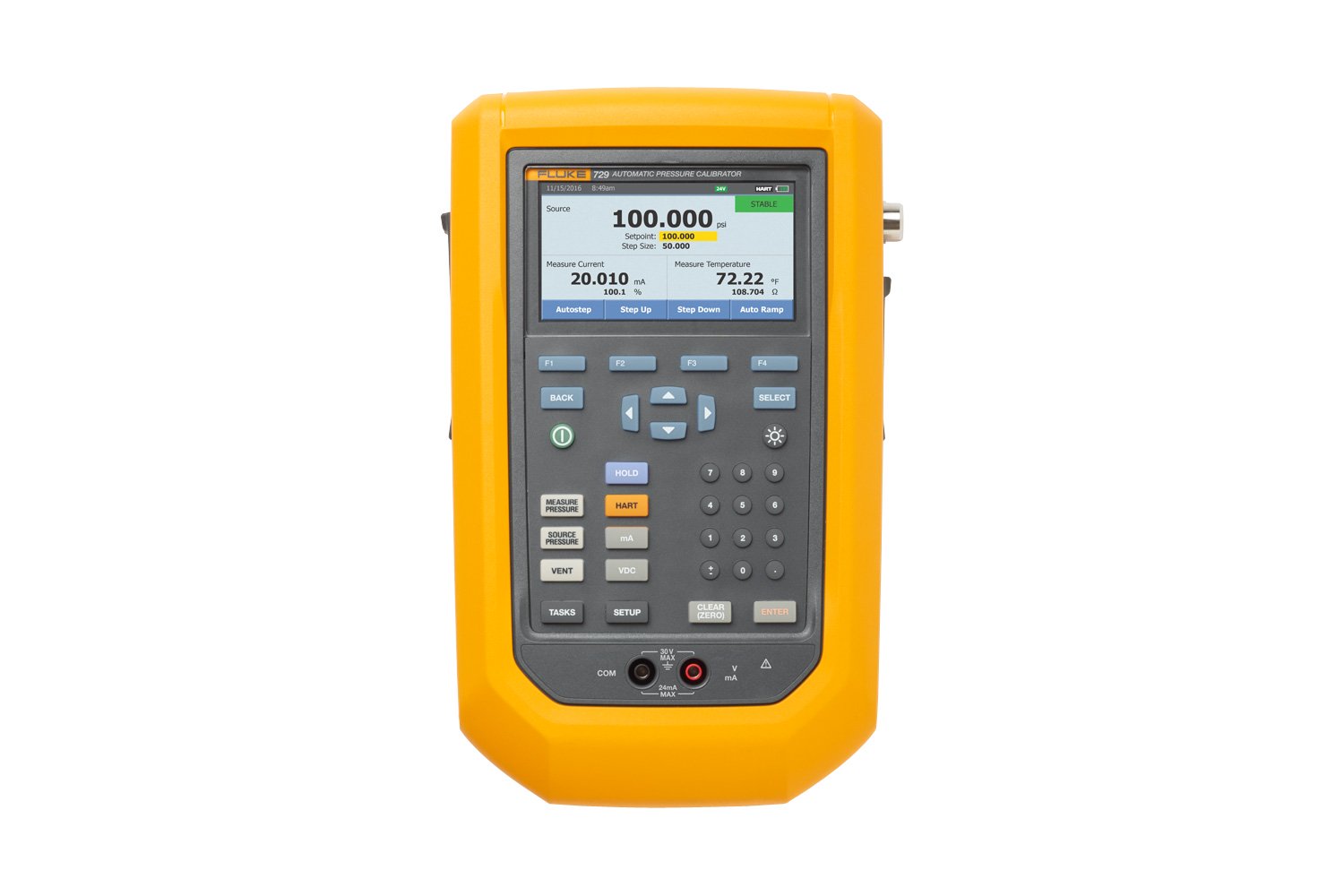

Fluke 729-30G FC Automatic Pressure Calibrator

Name: Fluke 729-30G FC Automatic Pressure Calibrator
SKU: 7511
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 729 Automatic Pressure Calibrator

Pressure specification*

One-year specification 0.02% of full scale

Control specification 0.005% full scale minimum

*See manual for detailed specifications

Model

729 30G

729 150G

729 300G

729 30G FC

Psi range, resolution	-12.0000 to 30.0000 psi
Bar range, resolution	-0.82737 to 2.06842 bar
kPa range, resolution	-82.737 to 206.843 kPa
Comment	Wireless communication for Fluke Connect

729 150G FC

Psi range, resolution	-12.000 to 150.000 psi
Bar range, resolution	-0.8273 to 10.3421 bar
kPa range, resolution	-82.73 to 1034.21 kPa
Comment	Wireless communication for Fluke Connect

729 300G FC

Psi range, resolution	-12.000 to 300.000 psi
Bar range, resolution	-0.8273 to 20.6843 bar
kPa range, resolution	-82.73 to 2068.43 kPa
Comment	Wireless communication for Fluke Connect

729CN 200K

Psi range, resolution	-12.0000 to 30.0000 psi
Bar range, resolution	-0.82737 to 2.06842 bar
kPa range, resolution	-82.737 to 206.843 kPa
Comment	For China, no wireless communication

729CN 1M

Psi range, resolution	-12.000 to 150.000 psi
Bar range, resolution	-0.8273 to 10.3421 bar
kPa range, resolution	-82.73 to 1034.21 kPa
Comment	For China, no wireless communication

729CN 2M

Psi range, resolution	-12.000 to 300.000 psi
Bar range, resolution	-0.8273 to 20.6843 bar
kPa range, resolution	-82.73 to 2068.43 kPa
Comment	For China, no wireless communication

729CN 200K FC

Psi range, resolution	-12.0000 to 30.0000 psi
Bar range, resolution	-0.82737 to 2.06842 bar
kPa range, resolution	-82.737 to 206.843 kPa
Comment	For China, wireless communication for Fluke Connect

729CN 1M FC

Psi range, resolution	-12.000 to 150.000 psi
Bar range, resolution	-0.8273 to 10.3421 bar
kPa range, resolution	-82.73 to 1034.21 kPa
Comment	For China, wireless communication for Fluke Connect

729CN 2M FC

Psi range, resolution	-12.000 to 300.000 psi
Bar range, resolution	-0.8273 to 20.6843 bar
kPa range, resolution	-82.73 to 2068.43 kPa
Comment	For China, wireless communication for Fluke Connect

729JP 200K

kPa range, resolution	-82.737 to 206.843 kPa
Comment	For Japan, no wireless communication

729JP 1M

kPa range, resolution	-82.73 to 1034.21 kPa
Comment	For Japan, 1 MPa range, no wireless communication

729JP 2M

kPa range, resolution	-82.73 to 2068.43 kPa
Comment	For Japan, 2 MPa range, no wireless communication

729JP 200K FC

kPa range, resolution	-82.737 to 206.843 kPa
Comment	For Japan, wireless communication for Fluke Connect

729JP 1M FC

kPa range, resolution	-82.73 to 1034.21 kPa
Comment	For Japan, wireless communication for Fluke Connect

729JP 2M FC

kPa range, resolution	-82.73 to 2068.43 kPa
Comment	For Japan, wireless communication for Fluke Connect

Electrical specification
All specifications are valid to 110% of range, except 24 mA source and simulate which are valid to 100% of range.
Ranges
mA measure, source and simulate	0 mA to 24 mA
Volts dc measure	0 V dc to 30 V dc
Resolution
mA dc source, simulate and measure	1 μA
Voltage dc measurement	1 mV
Accuracy	0.01% ±2 LSD all ranges (at 23 °C ±5 °C)
Stability	20 ppm of full scale /°C from -10 °C to +18 °C and 28 °C to +50 °C
mA simulate external voltage requirement	12 V dc to 30 V dc
Loop compliance voltage	24 V dc @ 20 mA
mA simulate external voltage requirement	12 V dc to 30 V dc
Temperature measurement only/100 Ω Pt(385) RTD	-50 °C to 150 °C (-58 °F to 302 °F)
Temperature resolution	0.01 °C (0.01 °F)
Temperature accuracy	±0.1 °C (0.2 °F) ±0.25 °C (±0.45 °F) combined uncertainty when using 720 RTD probe (optional accessory)
Drive capability	1200 Ω without HART resistor, 950 Ω with internal HART resistor
Mechanical specification
Size (HxWxL)	7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in)
Weight	6.5 lbs., 2.95 kg
Ingress protection	IP54
Environmental specification
Operating temperature	-10 °C to 50 °C for measurement, 0 °C to 50 °C for pressure control
Operating temperature with battery	-10 °C to 40 °C
Battery will only charge to 40 °C
Storage temperature	-40 °C to 60 °C
Operating altitude	3000 m
Storage altitude	13000 m
Wireless (729 FC only)
Radio frequency certification	FCC ID: T68-FBLE IC:6627A-FBLE
Wireless radio frequency range	2412 MHz to 2462 MHz
