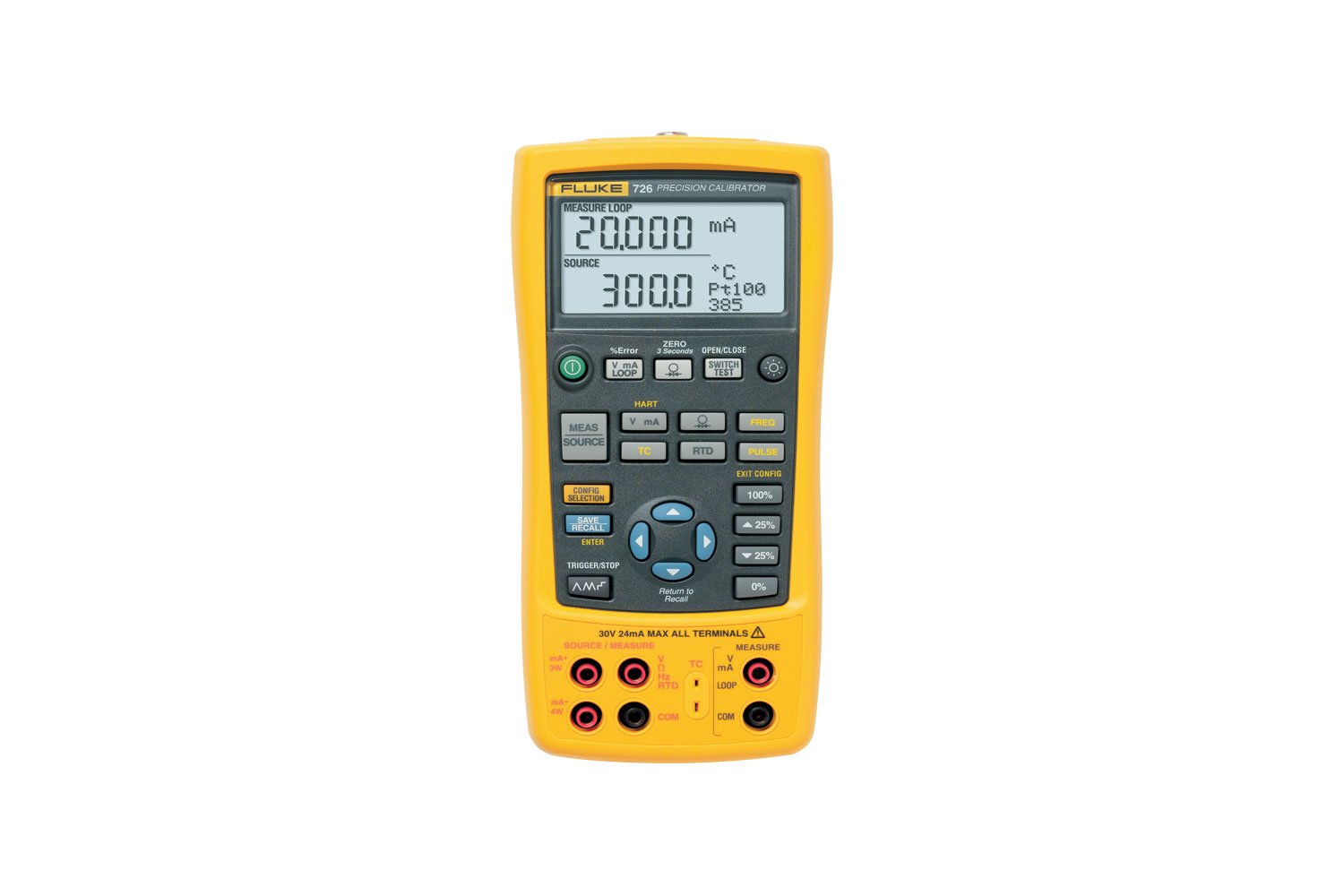

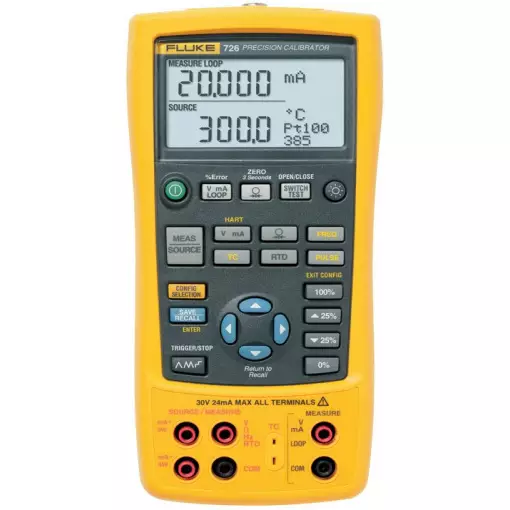

Fluke 726 Precision Multifunction Calibrators

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 726 Precision Multifunction Calibrators

Measurement Accuracy
Voltage DC	30.000 V	0.01% + 2 mV (upper display)
	20.000 V	0.01% + 2 mV (lower display)
	90.00 mV	0.01% + 10 μV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.01%+ 2 mA
Resistance	0.0 to 4000.0 Ω	± 0.015%
Frequency	2.0 to 1000.0 CPM	0.05% + 0.1 cpm
	1.0 to 1000.0 Hz	0.05% + 0.1 Hz
	1.00 to 15.00 kHz	0.05% + 0.01 kHz
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.01% + 10 μV
	20.000 V	0.01% + 2 mV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (Source)	0.01% + 2 μA
Current DC	24.000 mA (Simulate)	0.01% + 2 μA
Resistance	Range, accuracy (percent of reading + floor) and excitation current	5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
		5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 3 mA
		400 to 1500 Ω, 0.015% + 0.5 Ω, 0.05 to 0.8 mA
		1500 to 4000 Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1000.0 Hz	0.05%
	1.0 to 10.0 kHz	0.25%
	10.0 to 15.0 kHz	0.5%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure and source accuracy	Cu10	1.8°C
	NI-120	0.15°C
	PT-100 (385)	0.45°C
	PT-100 (392)	0.35°C
	PT-100 (391-JIS)	0.35°C
	PT-200 (385)	0.95°C
	PT-500 (385)	0.55°C
	PT-1000 (385)	0.35°C
	RTD Resolution	0.01°C (0.01°F)
	Cu10.01 C	0.1°C (0.1°F)
	J	0.4°C
	K	0.5°C
	T	0.4°C
	E	0.4°C
	R	1.4°C
	S	1.4°C
	B	1.4°C
	L	0.45°C
	U	0.45°C
	N	0.6°C
	XK	0.4°C
	BP	1.1°C
	TC Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to +71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in)
Weight	650 g (23 oz)
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessible without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming
