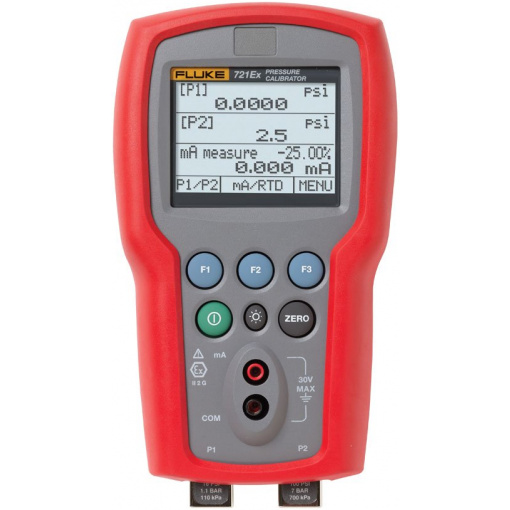

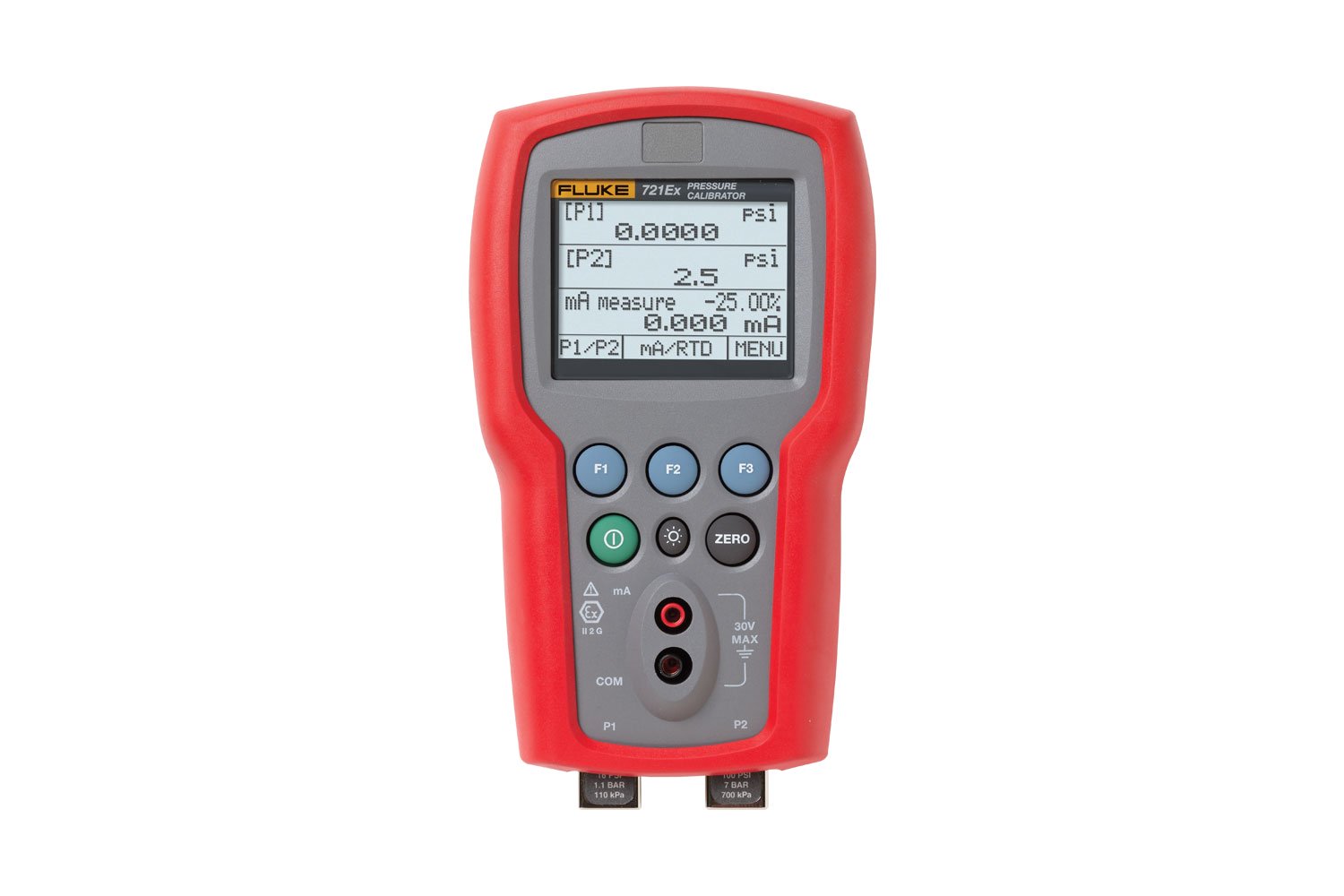

Fluke 721EX-1603 Precision Pressure Calibrator

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 721Ex Precision Pressure Calibrator

Specifications 1-Year
Fluke-721Ex-1601	Low pressure sensor
	Range	Resolution	Accuracy
	-14 psi to +16 psi, -0.97 bar to 1.1 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	-12 psi to +100 psi, -0.83 bar to 6.9 bar	0.01 psi, 0.0001 bar	0.025% of full scale
Fluke-721Ex-1603	Low pressure sensor
	-14 psi to +16 psi, -0.97 bar to 1.1 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	-12 psi to +300 psi, -0.83 bar to 20 bar	0.01 psi, 0.001 bar	0.025% of full scale
Fluke-721Ex-1605	Low pressure sensor
	-14 psi to +16 psi, -0.97 bar to 1.1 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	-12 psi to +500 psi, -0.83 bar to 34.5 bar	0.01 psi, 0.001 bar	0.025% of full scale
Fluke-721Ex-1610	Low pressure sensor
	0 psi to +1000 psi, 0.00 bar to 69 bar	0.1 psi, 0.001 bar	0.025% of full scale
	High pressure sensor
	-12 psi to +500 psi, -0.83 bar to 34.5 bar	0.01 psi, 0.001 bar	0.025% of full scale
Fluke-721Ex-1615	Low pressure sensor
	Range	Resolution	Accuracy
	-14 psi to +16 psi, -0.97 bar to 1.1 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	0 psi to +1500 psi, 0.00 bar to 103.4 bar	0.1 psi, 0.001 bar	0.025% of full scale
Fluke-721Ex-1630	Low pressure sensor
	-14 psi to +16 psi, -0.97 bar to 1.1 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	0 psi to +3000 psi, 0.00 bar to 200 bar	0.1 psi, 0.01 bar	0.025% of full scale
Fluke-721Ex-1650	Low pressure sensor
	-14 psi to +16 psi, -0.97 bar to 1.1 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	0 psi to +5000 psi, 0.00 bar to 345 bar	0.1 psi, 0.01 bar	0.035% of full scale
Fluke-721Ex-3601	Low pressure sensor
	Range	Resolution	Accuracy
	-14 psi to +36 psi, -0.97 bar to 2.48 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	-12 to +100 psi, -0.83 bar to 6.9 bar	.01 psi, 0.0001 bar	0.025% of full scale
Fluke-721Ex-3603	Low pressure sensor
	-14 psi to +36 psi, -0.97 bar to 2.48 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	-12 psi to +300 psi, -0.83 bar to 20 bar	0.01 psi, 0.001 bar	0.025% of full scale
Fluke-721Ex-3605	Low pressure sensor
	-14 psi to +36 psi, -0.97 bar to 2.48 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	-12 psi to +500 psi, -0.83 bar to 34.5 bar	0.01 psi, 0.001 bar	0.025% of full scale
Fluke-721Ex-3610	Low pressure sensor
	Range	Resolution	Accuracy
	-14 psi to +36 psi, -0.97 bar to 2.48 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	0 psi to +1000 psi, 0.00 bar to 69 bar	0.1 psi, 0.001 bar	0.025% of full scale
Fluke-721Ex-3615	Low pressure sensor
	-14 psi to +36 psi, -0.97 bar to 2.48 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	0 psi to +1500 psi, 0.00 bar to 103.4 bar	0.1 psi, 0.01 bar	0.025% of full scale
Fluke-721Ex-3630	Low pressure sensor
	-14 psi to +36 psi, -0.97 bar to 2.48 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	0 psi to +3000 psi, 0.00 bar to 200 bar	0.1 psi, 0.01 bar	0.025% of full scale
Fluke-721Ex-3650	Low pressure sensor
	-14 psi to +36 psi, -0.97 bar to 2.48 bar	0.001 psi, 0.0001 bar	0.025% of full scale
	High pressure sensor
	0 psi to +5000 psi, 0.00 bar to 345 bar	0.1 psi, 0.01 bar	0.035% of full scale
General Specifications
Instrument setup recall	Last used on power-up
Environmental	Operating temperature -10°C to +45°C Storage temperature (without batteries) -20°C to +60°C
Altitude	2,000 m
Ingress protection	IP-40
Power requirements	6.0 V DC
Battery life	>35 hours, typical usage
Batteries required	(4) Standard AA cells
Dimensions (H x W x D)	7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Weight	03539 kg (1 lb 3 oz)
Connectors/ports pressure	Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe
Electrical and Temperature Measurement 1-Year
Function	Range	Resolution	Accuracy
mA measure	0 to 24 mA	0.001 mA	±0.015% of rdg ±0.002mA
Temperature Effect
No effect on accuracy on all functions from 15°C to 35°C
Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
Available Pressure Engineering Units
psi, bar, mbar, kPa, kgcm2, cmH₂O @ 4°C, cmH₂O @ 20°C, mH₂O @ 4°C, mH₂O @ 20°C, inH₂O @ 4°C, inH₂O @ 20°C, inH₂O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH₂O @ 4°C, ftH₂O @ 20°C, ftH₂O @ 60°F
Available Pressure Engineering Units
ATEX	Ex ia IIB T3 Gb (Ta= -10… +45 °C)
	KEMA 10 ATEX 0168X
IECEx	Ex ia IIB T3 Gb (Ta= -10…+45 °C)
	II 2 G IECEx CSA 10.0013X
