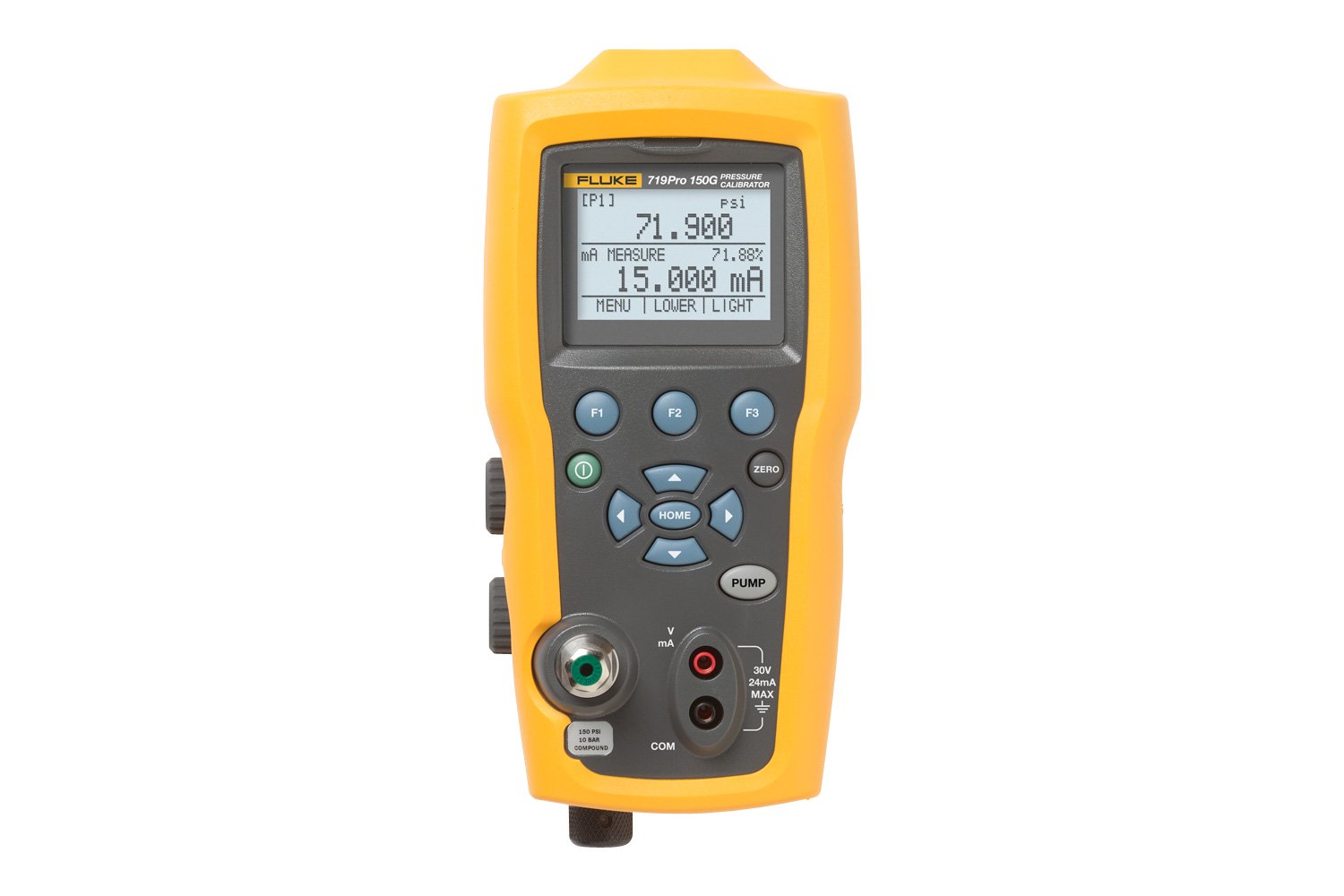

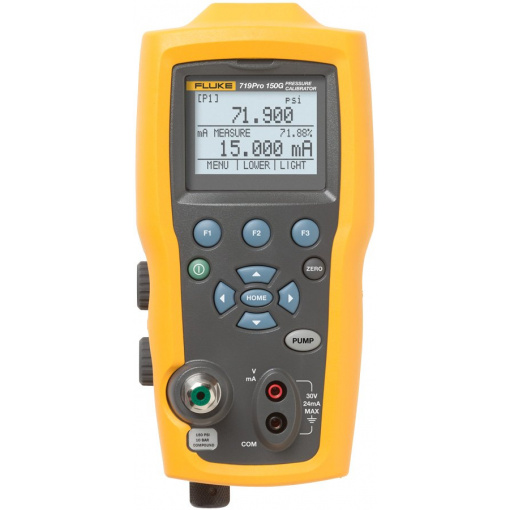

FLUKE-719PRO 300G Electric Pressure Calibrator

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 719Pro Electric Pressure Calibrator

Measurement
Fluke-719Pro-30G	Range	-12 to 30 psi / -0.8 to 2 bar
	Resolution	0.001 psi / 0.0001 bar
Fluke-719Pro-150G	Range	-12 to 150 psi / -0.8 to 10 bar
	Resolution	0.01 psi / 0.001 bar
Fluke-719Pro-300G	Range	-12 to 300 psi / -0.8 to 20 bar
	Resolution	0.01 psi / 0.001 bar
Accuracy	±0.025% of full scale, 6 months ±0.035% of full scale, 1 year
Temperature effect (all ranges)	Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
Dry air and non-corrosive gas only No effect on accuracy on all functions from 15°C to 35°C
Function	Range	Resolution	Accuracy (1 year)
mA DC (simulation and measurement)	0-24 mA DC	0.001 mA	±0.015% of reading ±2 counts
	1000 ohm maximum load in mA source, 26 V DC maximum voltage in mA simulate
Volts DC (measurement only)	30 V DC	0.001 V	±0.015% of reading ±2 counts
	No AC voltage measurement, do not exceed 30 V DC
Temperature (measurement only, Pt100 RTD)	-50 to 150°C (-50°F to 302°F)	0.01°C 0.01°F	Temperature ±0.1°C (0.2°F)
	±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe (optional accessory)
Loop power supply	24 V DC	N/A	24 mA at 24 V
Temperature effect (all functions)	–	–	Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
	No effect on accuracy on all functions from 15°C to 35°C
Environmental
Operating temperature	-10°C to +50°C
Storage temperature (with batteries)	Per battery manufacturer’s specification within storage specification below
Storage temperature (without batteries)	-20°C to +60°C
Power Requirements
Battery	Eight (8) standard Alkaline AA batteries
Battery life	300 pump cycles to 150 psi minimum; 1000 pump cycles to 30 psi; 100 pump cycles to 300 psi minimum
Physical
Dimensions (H x W x D)	24.13 x 11.18 x 7 cm (9.5 x 4.4 x 2.8 in)
Weight	With holster 1.2 kg (2.5 lb)
Connections
Pressure	1/8 inch female NPT
Electrical	Standard banana jacks
RTD	4 pin miniature circular
External module	6 pin miniature circular
Engineering Units (Configurable)
psi, bar, mbar, kPa, kgcm², cmH₂O @ 4°C, cmH₂O @ 20°C, mH₂O @ 4°C, mH₂O @ 20°C, inH₂O @ 4°C, inH₂O @ 20°C, inH₂O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH₂O @ 4°C, ftH₂O @ 20°C, ftH₂O @ 60°F
