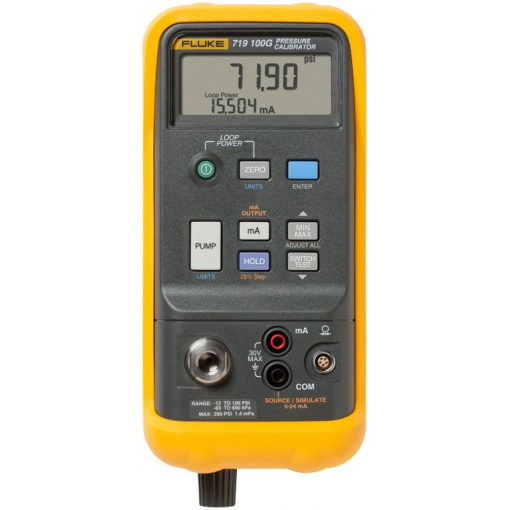

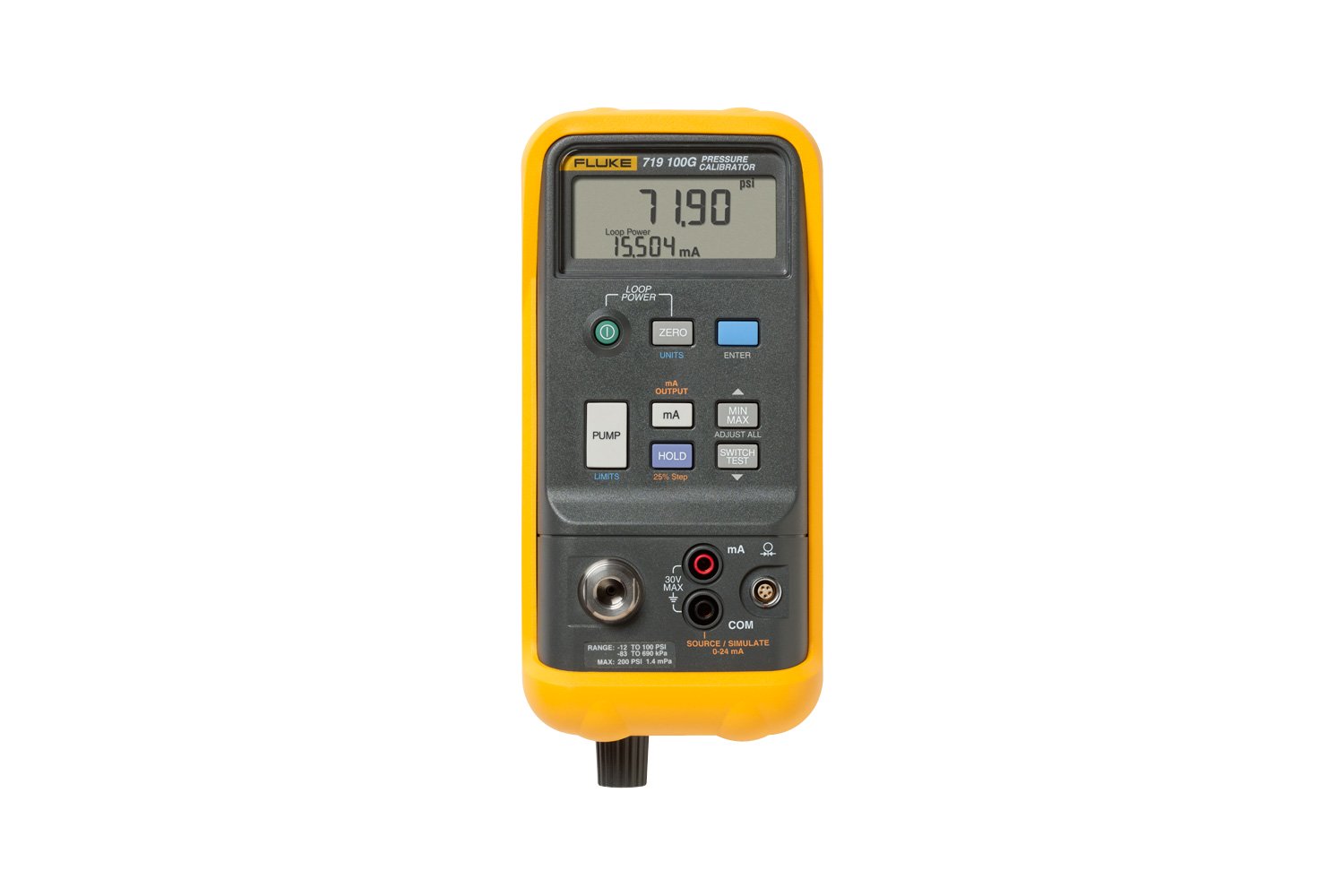

FLUKE-719 100G Pressure Calibrator

Name: FLUKE-719 100G Pressure Calibrator
SKU: 7498
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 719 Pressure Calibrator

General Specifications
Storage temperature	-30°C to 60°C
Operating temperature	-10°C to 55°C
Relative humidity	95% (-10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	35% (50°C to 55°C)
Shock	1 meter drop test
Safety	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Size (H x W x L)	60 x 87 x 210 mm
	(2.19 x 3.41 x 8.28 in)
Weight	912 g (2 lb)
Battery	Two 9 V alkaline batteries
Battery life	12 hours with 12 mA into 500 Ω, 200 pump cycles to 100 psi, 500 pump cycles to 30 psi
Warranty	1 year, 1 year for pump
Specifications
Fluke-719 30G	Range	-12 to 36 psi, -850 mbar to 2.4 bar
	Resolution	0.001 psi, 0.1 mbar
	Accuracy	0.025% range for 6 months 0.035% of range for one (1) year
Fluke-719 100G	Range	-12 to 120 psi, -850 mbar to 8 bar
	Resolution	0.01 psi, 1 mbar
	Accuracy	0.025% range for 6 months 0.035% of range for one (1) year
mA	Range	0 to 24 mA
	Resolution	0.001 mA
	Accuracy	.015% Rdg + 2 counts
	Max load, 1000 Ω, 750 Ω ohm in HART mode
Loop supply	Range	24 V DC
	Resolution	N/A
	Accuracy	±10%
Pump Specifications
Maximum pressure generation	120 psi (8 BAR) (100 psi model)
Pump to	-30 psi in less than 15 seconds¹
	-100 psi in less than 45 seconds¹
	1. With 1 meter of 1/8 inch test hose
Pump cycles between rebuilds	5000
Total pump life	20,000 calibration cycle
