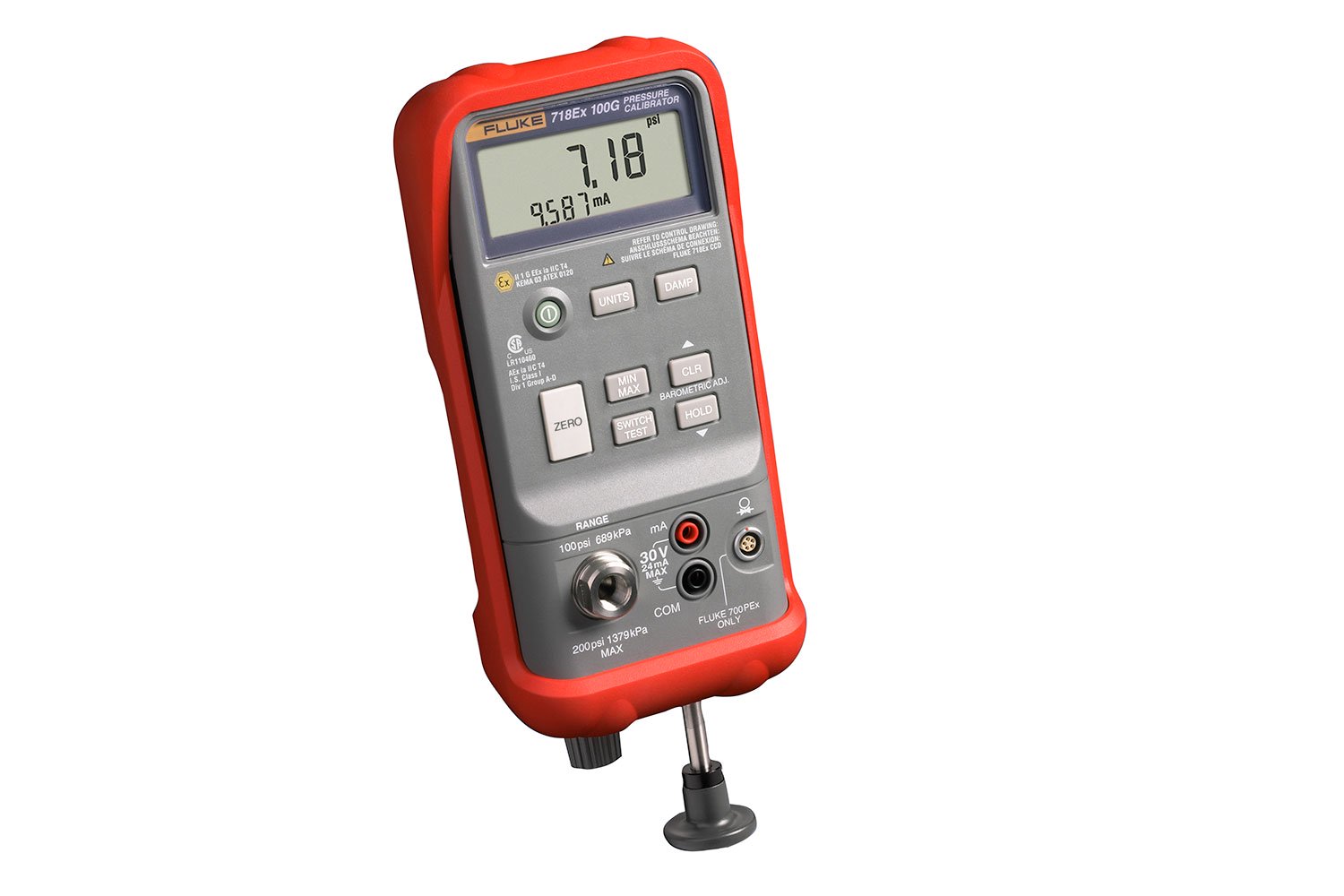

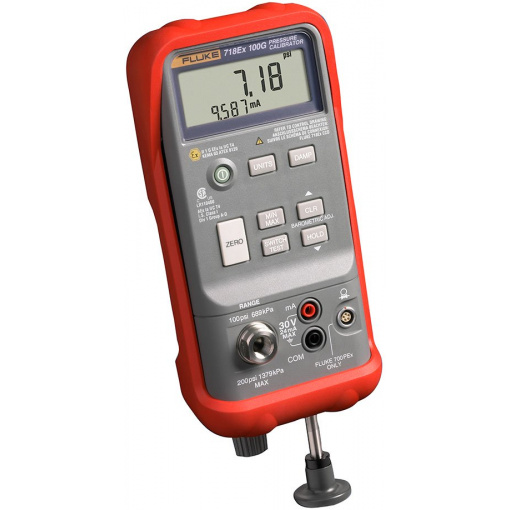

FLUKE-718EX 30 Intrinsically Safe Pressure Calibrator

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 718Ex Intrinsically Safe Pressure Calibrator

Pressure Measurement Accuracy
Fluke 718Ex 30G	Range	-830 mbar to 2 bar (internal sensor) Over pressure: 3x FS
	Resolution	0.0001 bar
	Accuracy	0.05% FS
	Functions	Zero, Min, Max, Hold, Damp
Fluke 718Ex 100G	Range	-830 mbar to 2 bar (internal sensor) Over pressure: 2x FS
	Resolution	0.001 bar
	Accuracy	0.05% FS
	Functions	Zero, Min, Max, Hold, Damp
Fluke 718Ex 300G	Range	-830 mbar to 20 bar (internal sensor) Over pressure: 375 psi, 25 bar
	Resolution	0.0001 bar
	Accuracy	0.05% FS
	Functions	Zero, Min, Max, Hold, Damp
Fluke 718Ex series	Range	Via pressure module connector 29 pressure modules, 2.5 mbar to 700 bar Over pressure per pressure module specs
	Resolution	Per pressure module specs
	Accuracy	To 0.025% of full span, per pressure module specs
	Functions	Zero, Min, Max, Hold, Damp
	Source pressure, built in pump range	-820 mbar to full scale
For use with non-corrosive gasses. Supported Pressure Units psi, inH₂O (4°C), inH₂O (20°C), kPa, cmH₂O (4°C), cmH₂O (20°C), bar, mbar, kg/cm², mmHg, inHg Media compatibility per pressure module specs
Technical Data
Measure accuracy	Range	0-24 mA
	Resolution	0.001 mA
	Accuracy	0.02% rdg ±2 counts
Display	LCD, 5 digit pressure and current simultaneous
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% (10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	35% (50°C to 55°C)
Operating altitude	3,000 m max
Safety Specifications
Safety	ATEX II 1G Ex ia IIC T4 compliant
	CSA Certification I.S. Class I
	Div 1 Groups A-D , T4
Mechanical and General Specifications
Size (L x W x H)	216 x 94 x 66 mm (with holster)
Weight	Approx. 992 g (with holster)
Warranty	1 year, 1 year for pump
Shock	1 meter drop test
Vibration	Random, 2 G, 5-500 Hz
Battery type	One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V
Battery life	4 to 20 hours, depending on functions used
