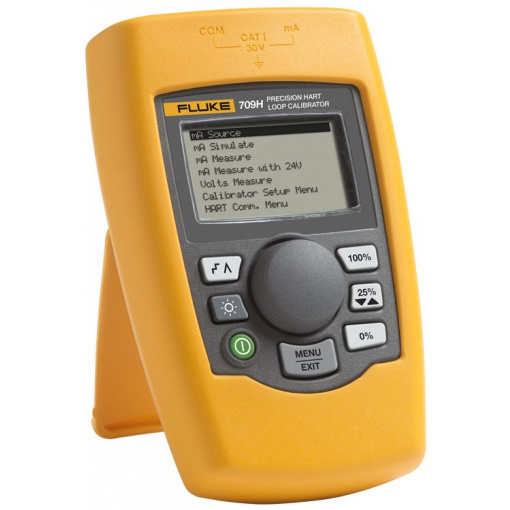

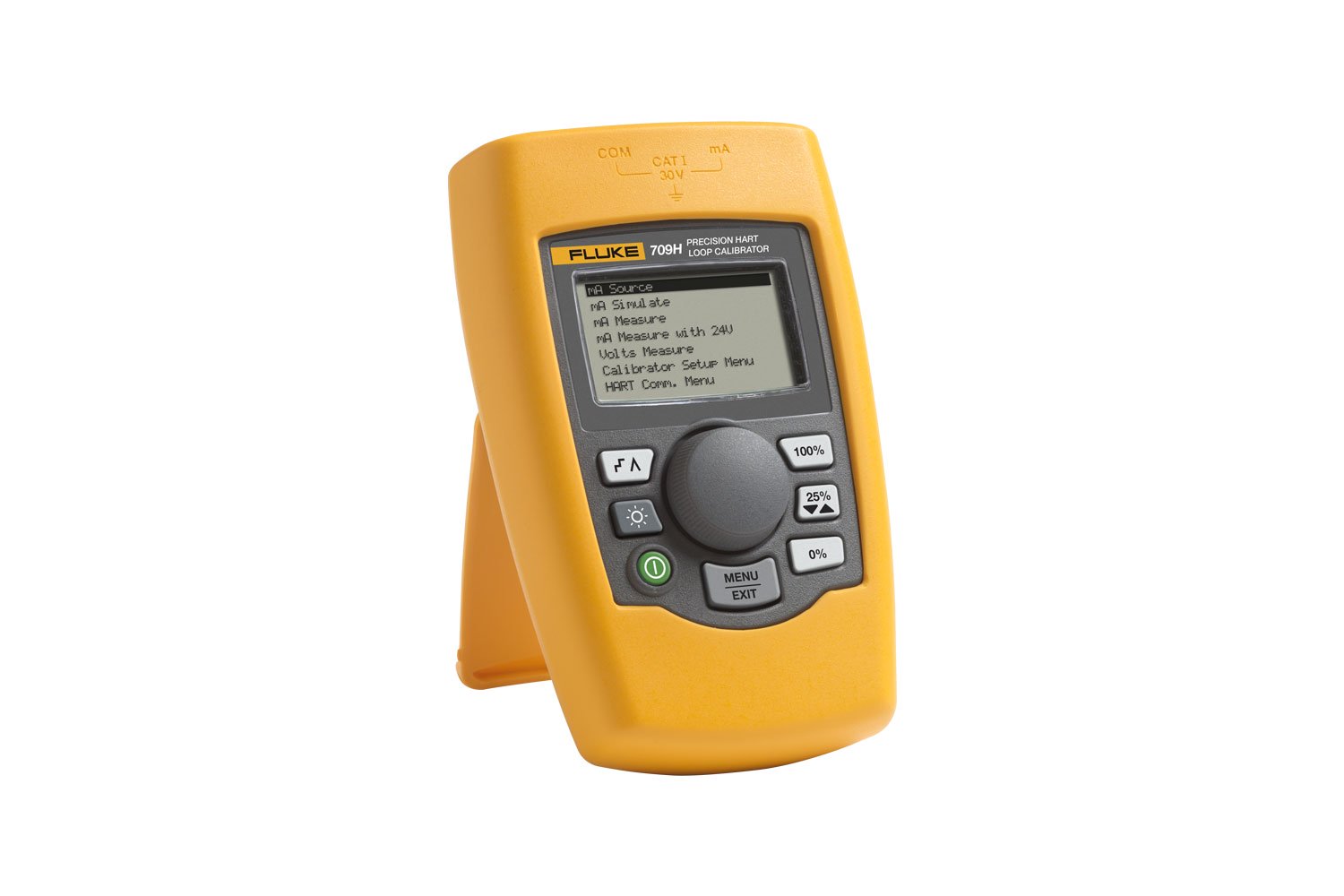

Fluke 709H Precision mA Loop Calibrator with HART Communications / Diagnostics

Name: Fluke 709H Precision mA Loop Calibrator with HART Communications / Diagnostics
SKU: 7084
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 709H Precision mA Loop Calibrator with HART Communications / Diagnostics

Detailed Specifications
Functions	mA source, mA simulate, mA read, mA read/loop power, and volts read.
Ranges	mA (0 to 24 mA) and Volts (0 to 30 V DC)
Resolution	1 µA on mA ranges and 1 mV on voltage range
Accuracy	0.01% ± 2 counts, all ranges (@23° ± 5°C)
Operating temperature range	-10°C to 55°C (14°F to 131°F)
Humidity range	10 to 95% non-condensing
Stability	20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display	128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
Power	6 AAA alkaline
Battery life	40 hours typical
Loop compliance voltage	24 V DC @ 20mA
Over-voltage protection	240 V AC
Overload current protection	28 mA DC
EMC	EN61326 Annex A (Portable Instruments)
Dimensions (L x W x D)	15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Weight	0.3 kg (9.5 oz)
Included accessories	NIST traceable calibration certificate with data, batteries, test leads, and manual
Warranty	1 year
