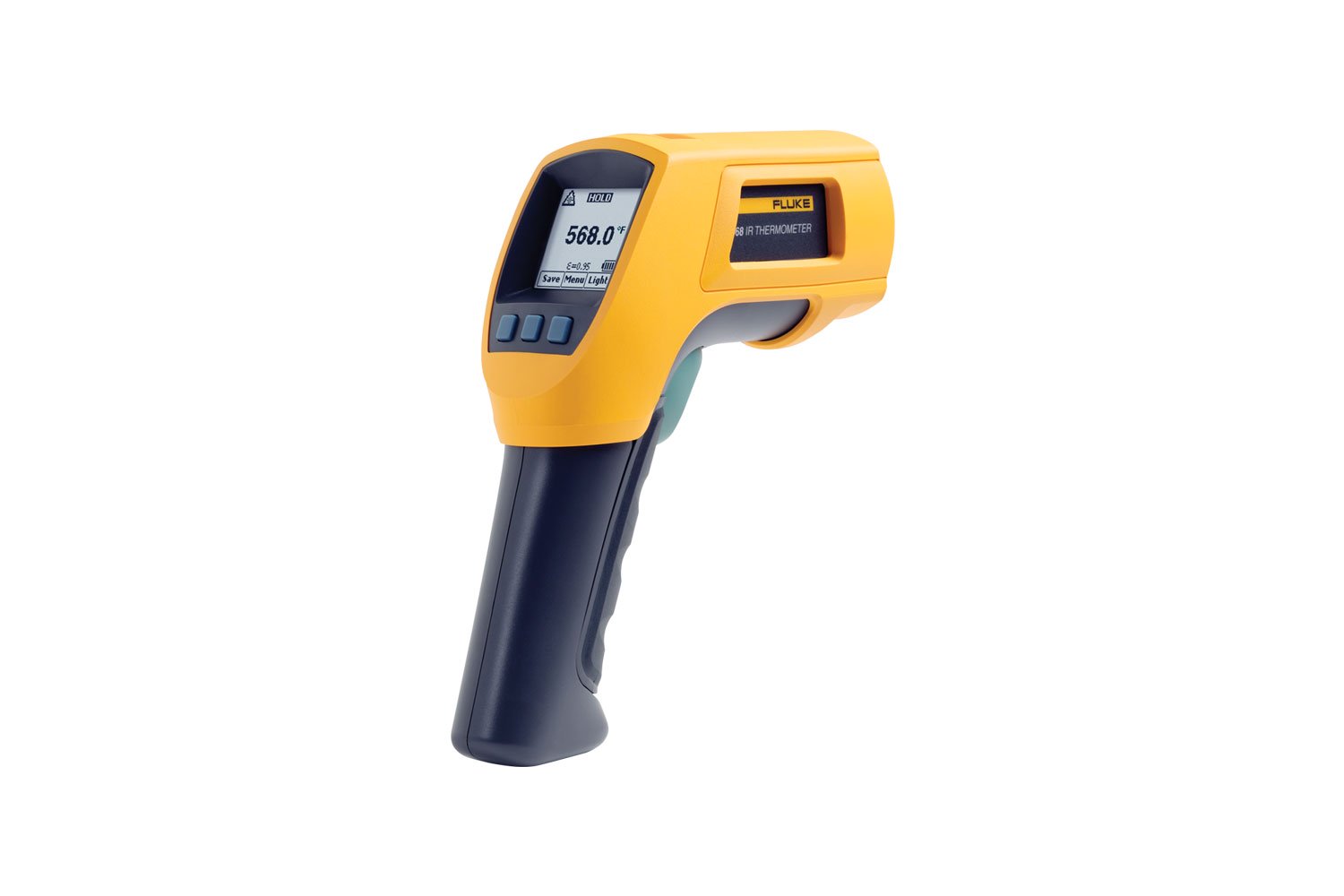

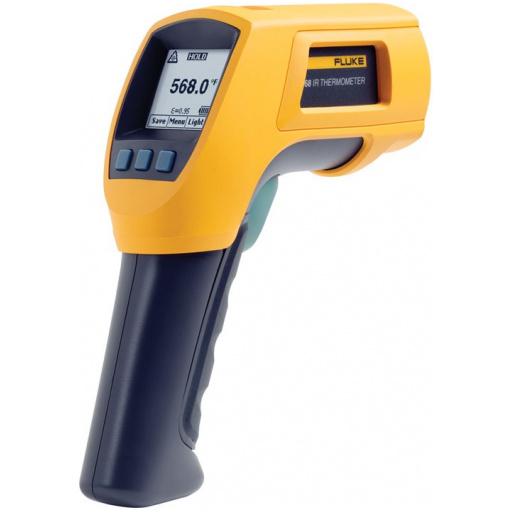

Fluke 568 Contact & Infrared Temp Gun

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: 568 Contact & Infrared Temp Gun

Product Specifications
Infrared temperature range	-40°C to 800°C (-40°F to 1472°F)
Infrared accuracy	< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F);
	> 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display resolution	0.1°C / 0.1°F
Infrared spectral response	8 µm to 14 µm
Infrared response time	< 500 msec
Thermocouple Type-K input temperature range	-270°C to 1372°C (-454°F to 2501°F)
Thermocouple Type-K input accuracy	-270°C to -40°C	±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F))
	-40°C to 1372°C	±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater
D:S (distance to measurement spot size)	50:1
Laser sighting	Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm
Minimum spot size	19 mm (0.75 in)
Emissivity adjustment	By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage with date/time stamp	99 points
PC interface and cable	USB 2.0 with FlukeView® Forms software
Hi/Low alarms	Audible and two-color visual
Min/Max/Avg/Dif	Yes
Display	Dot matrix 98 x 96 pixels with function menus
Backlight	Two levels, normal and extra bright for darker environments
Trigger lock	Yes
Switchable Celsius and Fahrenheit	Yes
Power	2 AA/LR6 Batteries and USB when used with a PC
Battery life	If used continuously	Laser and backlight on,12 hours; laser and backlight off, 100 hours
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	-20°C to 60°C (-40°F to 140°F)
Bead thermocouple Type-K range	-40°C to 260°C (-40°F to 500°F)
Bead thermocouple Type-K accuracy	±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
