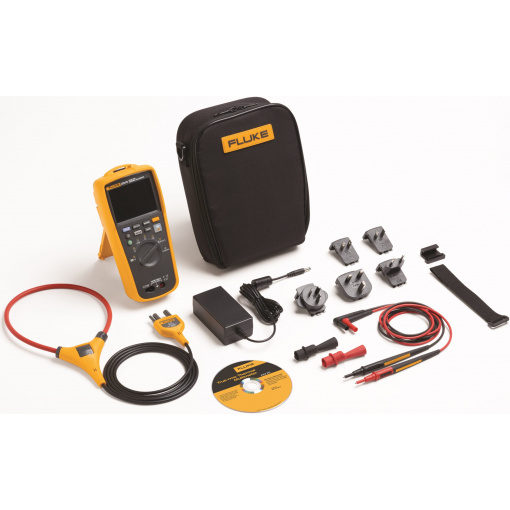

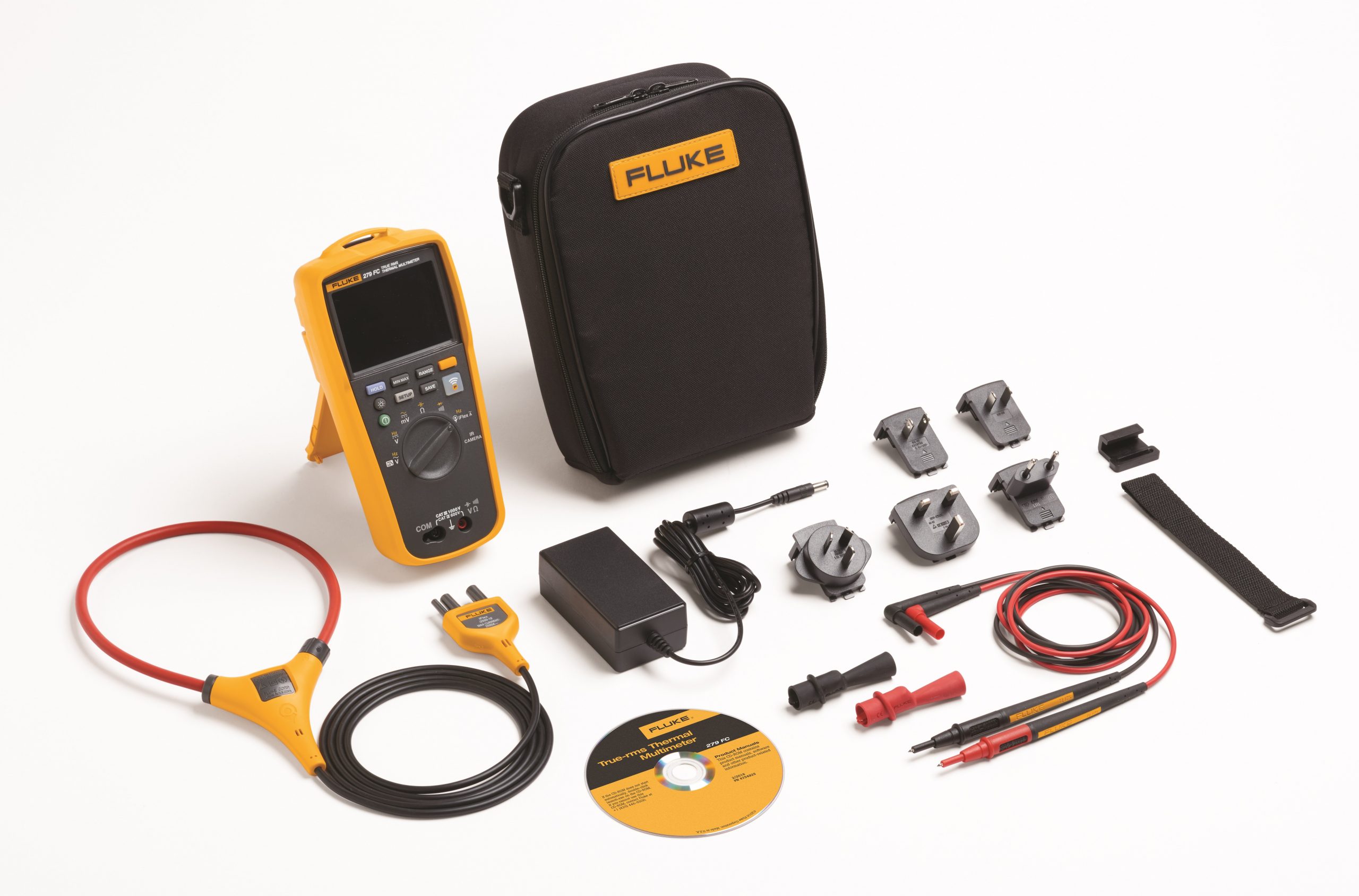

Fluke 279 FC True-rms Thermal Multimeter

Name: Fluke 279 FC True-rms Thermal Multimeter
SKU: 7083
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 279 FC True-rms Thermal Multimeter

DMM
Basic dc accuracy	0.09%
Bandwidth	1% 45 Hz to 65 Hz, full time low pass filter
Voltage	ac/dc 1000 V
Current ac	2500 A with included iFlex Flexible Current Probe
Resistance	50 MΩ
Frequency	100 kHz
Capacitance	9,999 µF
Continuity with beeper	Yes
Diode test	Yes
Min/Max recording	Yes
Display Hold	Yes

Infrared camera
Infrared resolution	102 x 77
Image capture frequency	8 Hz
Field of View	36° (w) x 27° (h)
NETD	≤200 mK
Infrared spectral band	7.5 to 14 microns
Center point	Yes (with center point temp)
Focus mechanism	Fixed focus
Temperature Range (selectable °C and °F)	-10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (9 °F) or (±5% as tested)
Emissivity	0.95 fixed
Background compensation	20 °C fixed
Memory storage	Approximately 100 images (internal)
File format	Non-radiometric .is2

General specifications
Battery type	Rechargeable lithium ion battery (charge time: 4.5 hours)
Operating temperature	-10 °C to 50 °C (14 °F to 122 °F)
Storage temperature	-20 ºC to 60 ºC (-4 °F to 140 °F)
Relative humidity	0% to 90% (0 °C to 35 °C) (32 °F to 95 °F) 0% to 75% (35 °C to 40 °C) (95 °F to 104 °F) 0% to 45% (40 °C to 50 °C) (104 °F to 122 °F)
Altitude	2,000 meters (6,561 feet)
Temperature coefficient	Add 0.1 x specified accuracy for each °C above 28 °C or below 18 °C (°F above 82 °F or below 64° F)
Ingress Protection	(IP) IP40 (non-operating)
Wireless frequency	2.4 GHz ISM Band, 20 meter range
Certifications	CE, CSA, FCC
Safety compliance	IEC 61010-1: Pollution degree 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V
EMC	EN 61326-1:2012
Size	215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in)
Weight	0.793 kg (1.75 lb)
Warranty	1 year
