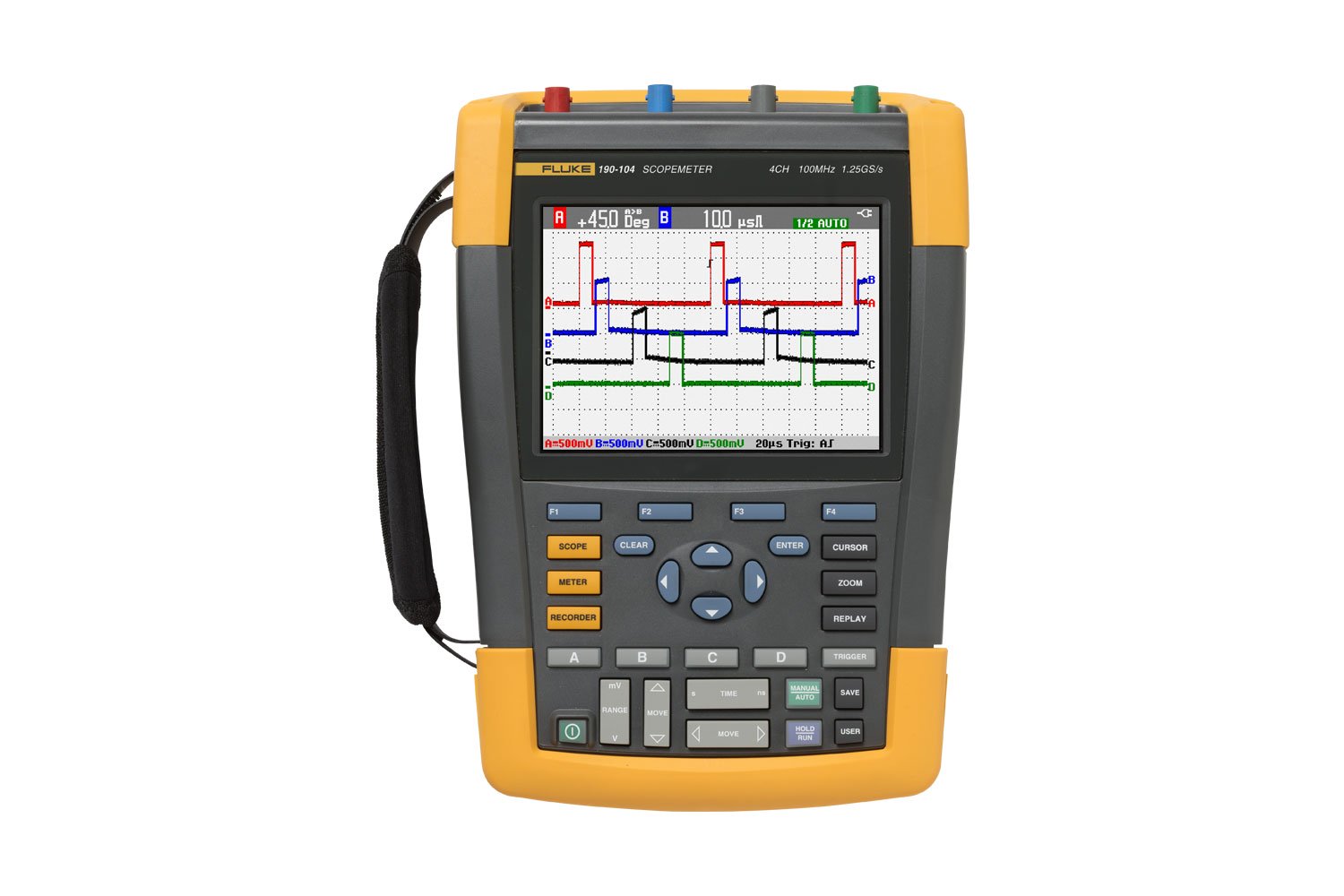

FLUKE-190-104/UN ScopeMeter® Test Tool

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 190-104 ScopeMeter® Test Tool

Specifications
Bandwidth	100 MHz
Number of channels	100MHz: 4 channels
Real-time sample rate	1.25 GS/s
Inputs	4scope plus DMM input
Independently floating isolated inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase range	G5 ns – 2 min/div
Input sensitivity	2 mV-100 V/div
Trigger types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger source	Any scope input channel, or external via DMM
Glitch capture	8 ns
Scope measurements	Cursor: 7
Scope measurements	Automatic: 30
Maximum record length	ScopeRecord mode: 30,000 pts
Maximum record length	Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform compare	Waveform reference with automatic Pass/Fail testing
Environmental Specifications
Operating temperature	0 °C to 40 °C Including Batteries
Operating temperature	0 °C to 50 °C Excluding Batteries
Storage temperature	-20 °C to +60 °C
Operating altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
Operating altitude	Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
Safety Specifications
Electrical safety	1,000 V CAT III/600V CAT IV (EN61010-1)
Mechanical and General Specifications
Size	270 x 190 x 70 mm
Weight	2.2 kg
Warranty	3-years on main instrument, 1-year on accessories
Li-Ion battery	BP291 4800 mAh battery up to 7 Hours included standard
Included Accessories
	VPS410 Voltage Probe Sets (one red, one blue, one grey, one green)
	BC190 Battery Charger/mains Adapter
	BP291 4800 mAh high capacity Li-ion Battery
	Handstrap (affixed to instrument)
	Hangstrap
	FlukeView ScopeMeter® demo package (restricted functionality)
	USB Interface Cable
Warranty	1 year
