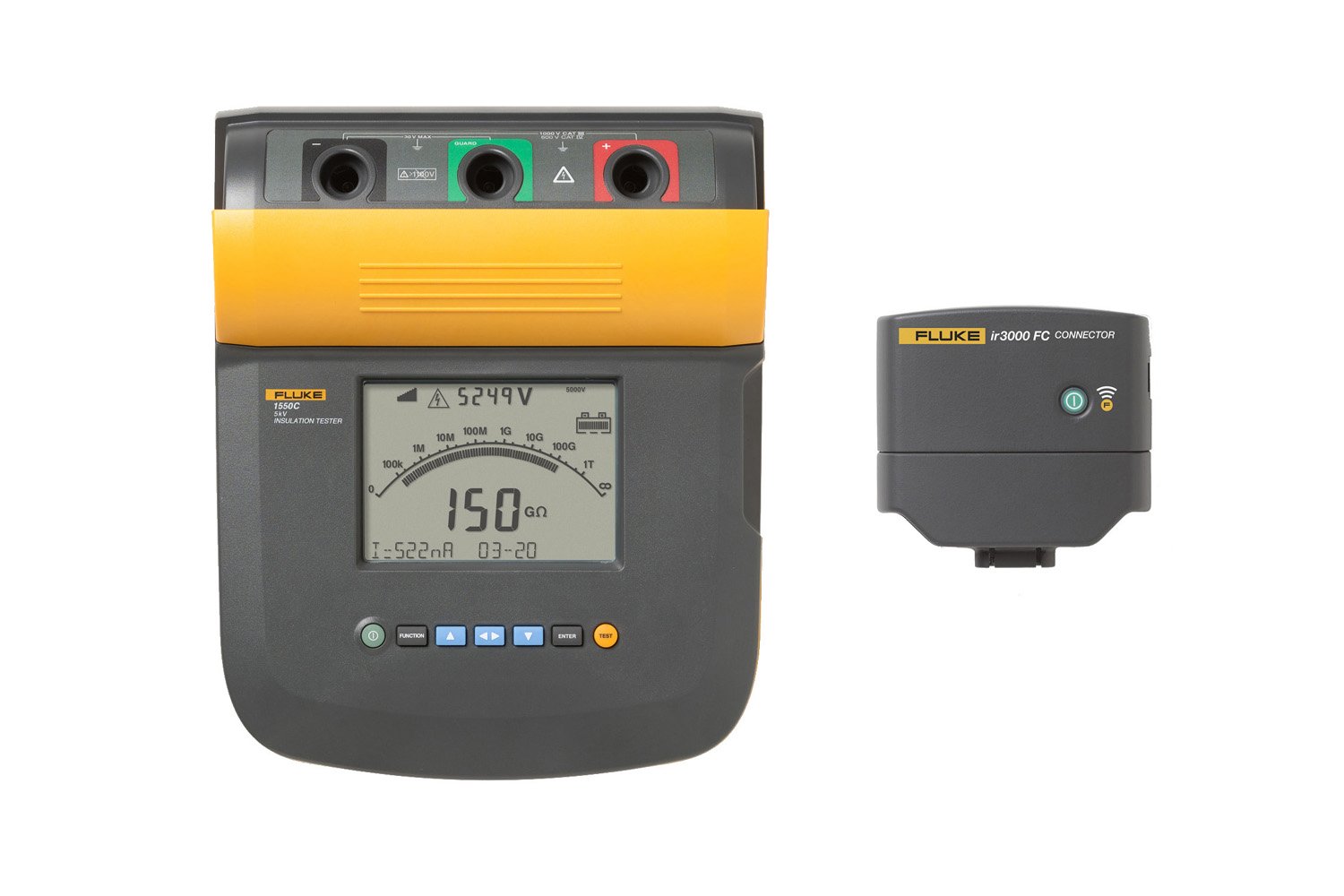

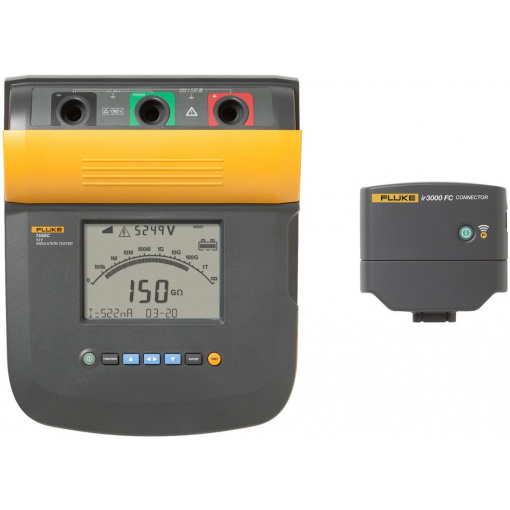

Fluke 1555 FC 10 kV Insulation Tester

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 1555 FC 10 kV Insulation Tester

Electrical Specifications
The tester’s accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ±.25% per °C, except on the 20% bands add ±1% per °C.
Insulation Resistance Measurement
Test voltage (DC)
250 V	Range	< 250 kΩ, 250 kΩ to 5 GΩ 5 GΩ to 50 GΩ > 50 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
500 V	Range	< 500 kΩ 500 kΩ to 10 GΩ 10 GΩ to 100 GΩ > 100 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
1000 V	Range	< 1 MΩ 1 MΩ to 20 GΩ 20 GΩ to 200 GΩ > 200 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
2500 V	Range	< 2.5 MΩ 2.5 MΩ to 50 GΩ 50 GΩ to 500 GΩ > 500 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
5000 V	Range	< 5 MΩ 5 MΩ to 100 GΩ 100 GΩ to 1 TΩ > 1 TΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
10000 V	Range	< 10 MΩ 10 MΩ to 200 GΩ 200 GΩ to 2 TΩ > 2 TΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
Bar graph range	0 to 1 TΩ (1550C) – 0 to 2 TΩ (1555)
Insulation test voltage accuracy	-0%, +10% at 1 mA load current
Induced AC mains current rejection	2 mA maximum
Charging rate for capacitive load	5 seconds per μF
Discharge rate for capacitive load	1.5 s/μF
Leakage current measurement	Range	1 nA to 2 mA
	Accuracy	±(5% + 2 nA)
Capacitance measurement	Range	0.01 μF to 15.00 μF
	Accuracy	±(15% rdg + 0.03 μF)
Timer	Range	0 to 99 minutes
	Resolution setting	1 minute
	Resolution indication	1 second
Live circuit warning	Warning range	30 V to 660 V AC/DC, 50/60 Hz
	Voltage accuracy	±(15% + 2 V)
Software specifications	FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display	75 x 105 mm
Power	12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC)	85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions	269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight	3.7 kg (8.2 lb)
Temperature (operating)	-20°C to 50°C (-4°F to 122°F)
Temperature (storage)	-20°C to 65°C (-4°F to 149°F)
Humidity	80% to 31°C decreasing linearly to 50% at 50°C
Altitude	2000 m
Enclosure sealing	IP40
Input overload protection	1000 V AC
Electromagnetic compatibility	EN 61326
Safety compliance	IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III IEC 61557-1, IEC 61557-2
