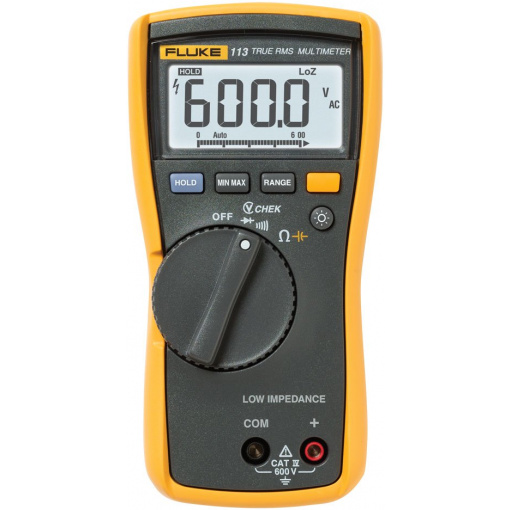

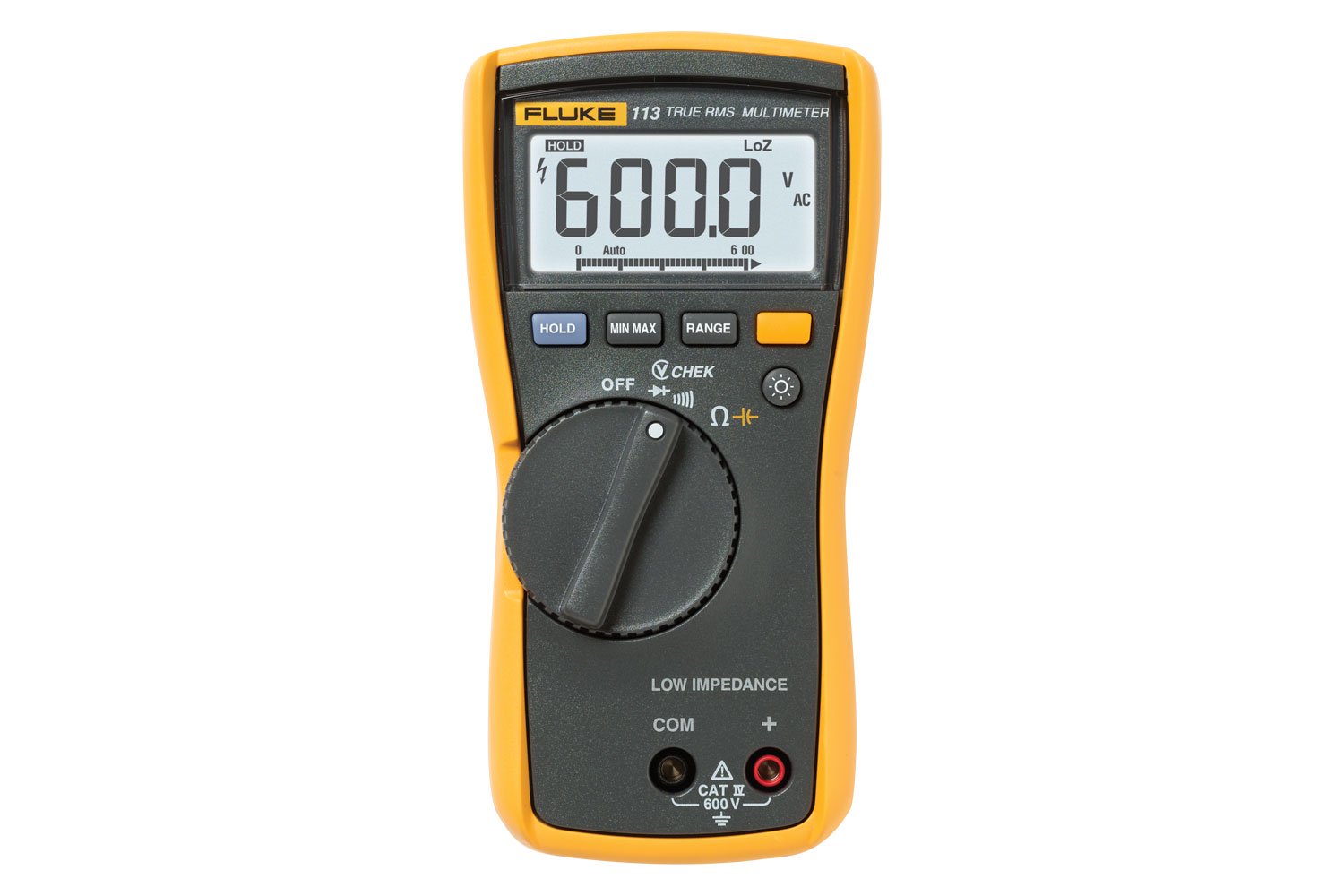

Fluke 113 Digital Multimeter

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 113 Digital Multimeter

Specifications
VCHEK^{1 2 3}	Range	6.000 V / 60.00 V / 600.0 V
	Resolution	0.001 V / 0.01 V/ 0.1 V
	Accuracy	DC, 45 to 500 Hz: 2.0% + 3 500 Hz to 1 kHz: 4.0% + 3
Diode test⁴	Range	2.000 V
	Resolution	0.001 V
	Accuracy	2.0% + 3
Continuity⁴	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer
Ω⁴	Range	600.0 Ω / 6.000 kΩ / 60.00 kΩ
	Resolution	0.1 Ω / 0.001 kΩ / 0.01 kΩ
	Accuracy	0.9% + 2 / 0.9% + 1 / 0.9% + 1
Capacitance⁴	Range	1000 nF / 10.00 μF / 100.0 μF / 9999 μF
	Resolution	1 nF / 0.01 μF / 0.1 μF / 1 μF
	Accuracy	1.9% + 2 100 μF – 1000 μF: 1.9% + 2 1000 μF: 5% + 20
1. All VChek voltage ranges are specified from 60 counts to 100% of range. Because inputs below 60 counts are not specified, it is possible and normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. 2. Crest factor of ≤ 3 at 4000 counts, decreasing linearly to 1.5 at full scale. 3. Minimum measureable input in VCHEK autorange is 3 VDC. For measurements below 3 VDC, push Range button twice to get to 6 VDC manual range. 4. After measuring voltage, a wait time of 1 minute is required to maintain accuracy of ohms, capacitance, diode test, and continuity.
Specifications
Maximum voltage between any terminal and earth ground	600 V
Display	3 3/4-digits, 6000 counts, updates 4/sec
Operating temperature	-10°C to 50°C (14°F to 122°F)
Storage temperature	-40°C to 60°C (-22°F to 140°F)
Temperature coefficient	0.1 x (specified accuracy) / °C (< 18°C or > 28°C)
Operating altitude	2,000 m
Storage altitude	10,000 m
Relative humidity	95% to 30°C 75% to 40°C 45% to 50°C
Battery type	9 Volt Alkaline, IEC 6F22
Battery life	Alkaline: 300 hours typical, without backlight
Size (H x W x L)	167.1 x 85.1 x 46.0 mm (6.58 x 3.35 x 1.81 in)
Weight	13.0 oz (404 g)
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
EMI regulations	Complies with FCC Part 15, Class B
Specifications
VCHEK	Input impedance (nominal)	~3 kΩ < 300 pF
VCHEK	Common mode rejection ratio (1 kΩ unbalanced)	> 60 dB at DC, 50 or 60 Hz
Ω	Open circuit test voltage	< 2.7 VDC
Ω	Full scale voltage	< 0.7 VDC
Diode test	Open circuit test voltage	2.7 VDC
Diode test	Full scale voltage	2.000 VDC
Ω	Short circuit current	< 350 μA
Diode test	Short circuit current	< 1.0 mA
