Ultrasonic Thickness Tester PCE-TG 250

PCE-TG 250 Ultrasonic Thickness Tester

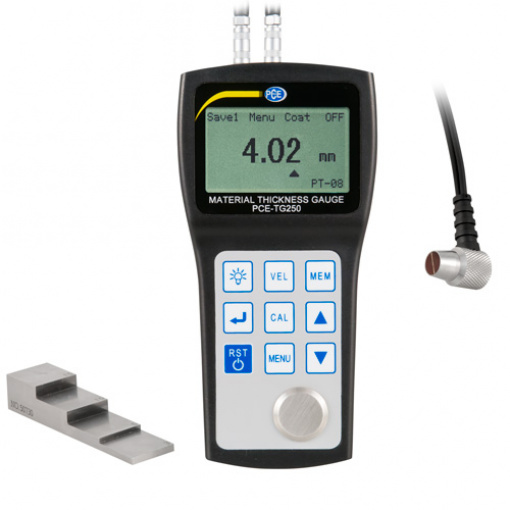

PCE-TG 250 is a portable Ultrasonic Thickness Tester with an easy-to-read 4-digit display. This ultrasound-based Thickness Tester uses a contact transducer (included) to measure the thickness of coated and uncoated ferrous and non-ferrous metal, glass, plastic, and other homogeneous materials including aluminum, brass, copper, iron, lead, nickel, steel, gold, titanium, pyrex and quartz glass, nylon, polyethylene, and silicone rubber. See accessories for replacement contact gel and ISO calibration options.

– Measurement range: 1 mm … 250 mm / 0.04 in … 9.84 in (uncoated steel)
– 2.5 mm … 20 mm / 0.1 in … 0.79 in (coated surfaces)
– Accuracy: ±0.5% of measured value + 0.02 mm / 0.0008 in
– Resolution: 0.01 mm / 0.1 mm (0.0004 in / 0.004 in)
– Sound velocity: 1000 m/s … 9999 m/s / 3280 ft/s … 32805 ft/s
– Adjustable velocity speed in increments of 1 m/s
– Requires use of contact gel or paste
– Features a built-on 4 mm (0.2 in) steel calibration standard and user-friendly DIY calibration procedure
