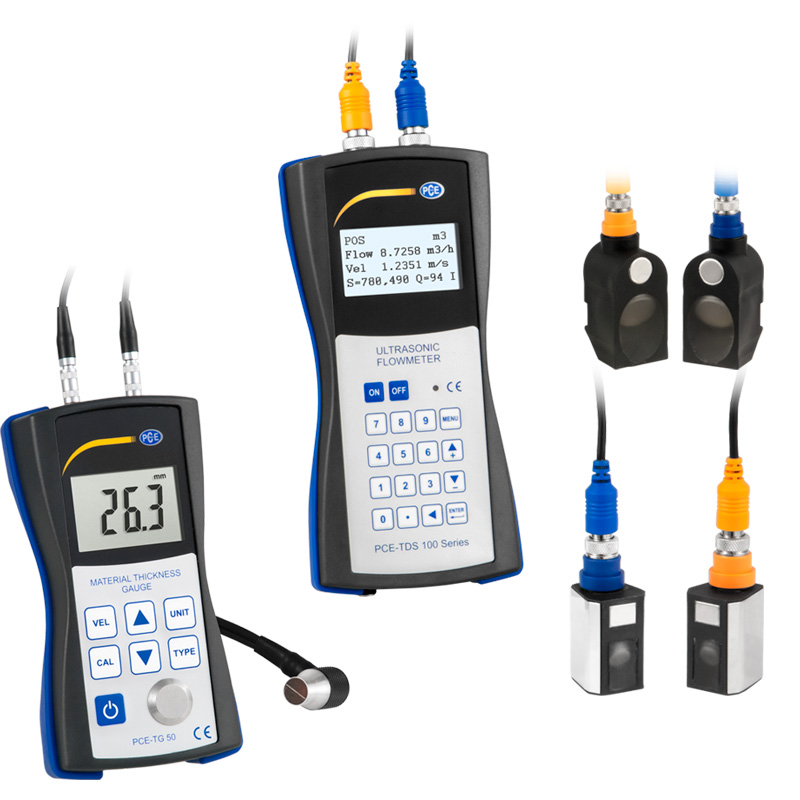

Ultrasonic Flow Tester Kit PCE-TDS 100HSH incl. Ultrasonic Thickness Tester

The ultrasonic flow tester is required as part of a control measurement or for quickly determining the flow in a pipeline and is therefore a portable / easy-to-install measuring system. The ultrasonic flow meter works according to the transit time difference method. The measuring principle of the ultrasonic flow meter is quite simple.

Measuring a pipe obliquely with the flow takes less time than measuring against the flow. The stronger the current, the longer it takes to fight it and the faster you go with it. The difference between the flow times with the flow or against it therefore depends directly on the flow velocity of the river. The ultrasonic flow meter uses this effect to determine flow velocity and flow rate.

Electro-acoustic transducers (“piëzo effect”) send and receive short ultrasonic pulses through the medium flowing in the pipe. The transducers are offset in the longitudinal direction on both sides of the measuring tube. The non-destructive sensors are placed on the pipe and e.g. attached with a cable tie. The display shows the flow velocity within a short time. The ultrasonic flow meter can be used to measure on metallic pipes, plastic pipes or rubber pipes.

Measurable liquids
Acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ether, ethyl ether, ethylene glycol, Freon R12, gasoline, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, motor oil , Diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1,1,1 – trichloroethane, turpentine, distilled water, sea water.

The ultrasonic material thickness meter is a compact measuring device for metals, glass and homogeneous plastics. This ultrasonic testing device works with an external ultrasonic probe, this probe guides ultrasonic waves into the material to be tested. Different materials transmit ultrasound at different speeds, so you can select different ultrasound speeds on the ultrasound tester.

With the thickness gauge, you can determine the material thicknesses of metal, glass and plastics and other homogeneous materials in seconds. The operation on the ultrasonic testing device is very easy using the seven buttons. This measuring device can be calibrated on site with little effort using the integrated calibration block. All measured values can be transferred to the PC and analyzed using the optionally available software. The software also offers the option of exporting the data to Microsoft Excel.

Ultrasonic Flow Tester
– ideal for retrofitting
– installation without process interruption
– easy assembly
– accurate and reliable
– no pressure loss
– maintenance-free, no moving parts
– wear-free
– portable devices for control measurements

Ultrasonic Material Thickness Tester
– adjustable ultrasound velocity (for thickness measurements of different materials)
– measures thicknesses from 1.2 … 200.00 mm / 0.05 … 7.87″
– integrated steel calibration block
– delivery incl. transport case

Ultrasonic Flow Tester	PCE-TDS 100HSH
Handheld measuring range	-32 … +32 m/s
Resolution	0.0001 m/s, 0.00033 ft/s
Accuracy for DN ≥ 50 mm: for DN < 50 mm:	±1.5 % of measured value ±3.5 % of measured value
Reproducibility	±1.0 % of measured value
Media	All liquids with an impurity <5% and a flow >0.03 m³/h
Flow units	Cubic meter [m³] Liter [l] Gallon (USA) [gal] Imperial gallon (UK) [igl] Million USA gallon [mgl] Cubic foot [cf] Barrel (USA) [bal] Imperial barrel (UK) [ib] Oil barrel [ob]
Time settings	per day [/d] per hour [/h] per minute [/m] and per second [/s]
Data logger	1800 measurements
Interface	USB (for online measurement and reading of the internal memory)
Protection	IP 52
Power supply	3 x AA NiMH rechargeable battery / 2100 mAh (at full charge 12h running time) 100 … 240 V AC 50/60 Hz
Dimensions	214 x 104 x 40 mm / 8.4 x 4.1 x 1.5″
Weight	450 g / 15 oz
Sensor (only PCE-TDS 100 HS)	Nominal width  DN 15 … 100, 20 … 108 mm / approx. 3/4 … 4″
	Nominal width  DN 50 … 700, 57 … 720 mm /approx. 2 … 28″
Temperature of liquid	-30 … 160 °C / -22 … 320 °F
Dimensions	50 x 45 x 45 mm / 1.9 x 1.7 x 1.7″
Weight	75 g / 2.6oz



Ultrasonic Thickness Tester	PCE-TG 50
Measurement range	1.2 … 200 mm / 0.05 … 7.87 in (steel)
Accuracy	± 0.5% of rdg. ± 0.1 mm / ± 0.00393701 in
Transducer	5 MHz frequency, 8 mm / 0.32 inch diameter; Probe support surface: 10.2 mm / 0.4 in diameter; Head: 15.4 mm diameter / 0.61 in
Resolution	0.1 mm / 0.001 in
Ultrasound velocity	800 … 9950 m/s / 2624.67 … 32644.36 ft/s (adjustable)
Display	4-digit LCD
Operating conditions	-10 … 50°C / 14 … 122°F; Relative humidity: < 80% RH
Calibration block	5.0 mm / 0.2 in steel (integrated)
Measuring units	mm or in (adjustable)
Material temperature	0 … 50°C / 32 … 122°F (permanent); 50 … 85°C / 122 … 185°F (for 5 minutes, then 30 minutes cooling below 50° C / 122°F)
Data interface	RS-232 port
Power supply	3 x 1.5V AAA batteries (approx. 250 hours of battery life)
Dimensions	Approx. 142 x 77 x 40 mm / 5.6 x 3.1 x 1.6 inches (handset)
Weight	Approx. 265 g / < 1 lb (handset with batteries and probe)
