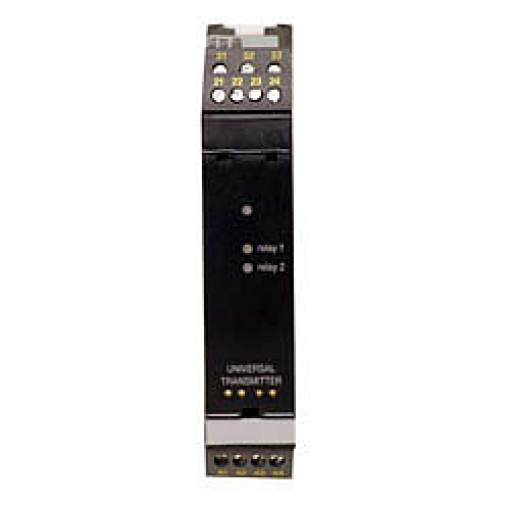

Temperature signal converter UMU-100 R with relay

Name: Temperature signal converter UMU-100 R with relay
SKU: 19958
Availability: BackOrder

UMU-100R

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Transducer

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Temperature signal converter for PT 100 sensors /�Connection for 2-, 3- or 4-wire connection

also for thermocouples /�additional current and voltage inputs

The signal converter UMU 100 is a transmitter suitable for the evaluation of PT 100 sensors as well as thermocouples (K, J, etc.). The UMU 100 signal converter is safe to operate and prevents failure of a machine or production plant. The signal converter has both a current output and a voltage output. Optionally, the signal converter can be equipped with two relay outputs so as to reach an alarm level, e.g. to activate a signal light. Due to the galvanic isolation, the supply voltage does not affect the measured signal and makes the signal converter a safe and accurate measuring instrument, which can be used universally during operation.

– for PT 100 sensors and thermocouples
– error indication on the display
– universal power supply
– galvanic isolation of the inputs and outputs
– with 2 alarm relays
– with current and voltage input
– with current and voltage output
– configurable via detachable display (optional)

Technical Data�
Input	Measuring range	Accuracy
PT 100	-200 … 850 °C / -328 … 1562 °F	± 0.2 °C
Linear resistance	0 Ω … 10 kΩ	± 0.1Ω
Potentiometer	10 Ω … 100 kΩ	—
Thermocouples (depending on the type)	– 200 °C … 2300 °C / -328 … 4172 °F	± 2 °C
Current (freely programmable)	0 mA … 20 mA 4 mA … 20 mA	± 4 µA
Voltage (freely programmable)	0 V … 1 V DC 0.2 V … 1 V DC 0 V … 5 V 1 V … 5 V 0 V … 10 V 2 V … 10 V	± 20 µV
Output	Measuring range	Load
Current	0 mA … 20 mA 4 mA … 20 mA 20 mA … 0 mA 20 mA … 4 mA	maximal 20 mA, 800 Ω, 16 V DC
Voltage	0 V … 1 V DC 0.2 V … 1 V DC 0 V … 5 V 1 V … 5 V 0 V … 10 V 2 V … 10 V 1 V … 0 V DC 1 V … 0.2 V DC 5 V … 0 V 5 V … 1 V 10 V … 0 V 10 V … 2 V	min. 500 kΩ
Relay (close, open, hold)	Maximum voltage: 250 V RMS Maximum current: 2 A AC or 1 A DC Maximum power (AC): 500 VA
General technical data
Supply voltage	24 V AC … 230 V AC / 50 Hz … 60 Hz 24 V DC … 250 V DC
Max. input	≤ 2.5 W
Response time (0% … 90% / 100% … 0%)	Temperature input: ≤ 1 s Current / voltage input: ≤ 400 ms
Calibration temperature	20 … 28 °C / 68 … 82 °F
Max. humidity	90% r.H.
Dimensions with front display (H x W x D)	109 x 23.5 x 116 mm / 42.9 x 9.2 x 45.6″
Dimensions without front display (H x W x D)	109 x 23.5 x 104 mm / 42.9 x 9.2 x 40.9″
Protection	Housing: IP 50 Clamp: IP 20
Weight	175 g / 6 oz
Here you can see the connection types of the temperature transmitter UMU-100R
