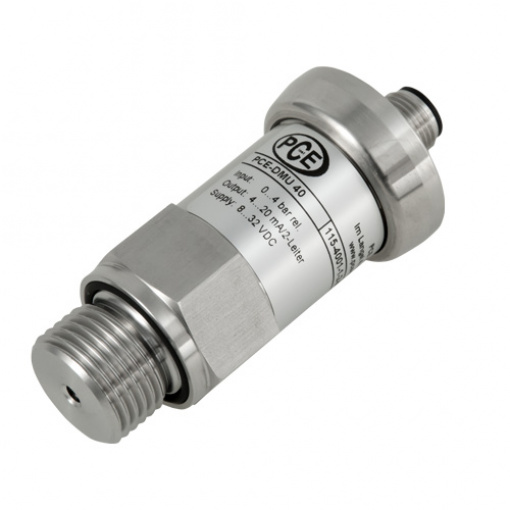

Pressure Transmitter PCE-DMU 40
Pressure Transmitter to 600 Bar / various connections / 0/4 … 20 mA or 0 … 10 V output / Stainless steel membrane

The pressure transducer PCE-DMU 40 can be used for relative and absolute pressure measurements. The pressure transmitter can be used for gases, water as well as fuels and oils. Its metallic stainless steel 1.4435 membrane provides good corrosion resistance in many industrial processes. The modular design of the pressure transmitter allows a combination of process connections, pressure ranges and electrical connection variants and therefore meets almost all requirements of industrial applications. The pressure transmitter has an accuracy of 0.25% of the measuring range. Stainless steel is used as the separating membrane.

– 2 or 3 conductor output
– 0/4 … 20 mA or 0 … 10 V (selectable)
– Smallest measuring range 0 … 100 mBar
– Maximum measuring range 0 … 600 bar
– 0.25% Accuracy of the measuring range
– Stainless steel diaphragm

รีวิว

ยังไม่มีบทวิจารณ์

เฉพาะลูกค้าที่เข้าสู่ระบบ และเคยซื้อสินค้าชิ้นนี้แล้วเท่านั้น ที่เขียนบทวิจารณ์ได้

Technical Specification Pressure Transmitter PCE-DMU 40
Nominal pressure relative in bar	-1 … 0	0.10	0.16	0.25	0.4	0.6	1	1.6	2.5	4	6
Nominal pressure absolute in bar	–	–	–	–	0.4	0.6	1	1.6	2.5	4	6
Overpressure in bar	5	0.5	1	1	2	5	5	10	10	20	40
Burst pressure in bar	7.5	1.5	1.5	1.5	3	7.5	7.5	15	15	25	50

Nominal pressure relative / absolute in bar	10	16	25	40	60	100	160	250	400	600
Overpressure in bar	40	80	80	105	210	600	600	1000	1000	1000
Burst pressure in bar	50	120	120	210	420	1000	1000	1250	1250	1800
Negative pressure	-1 … 0 Bar; Overload: 4 Bar; Burst pressure: 7 Bar
Vacuum resistance	P> 1 bar: unrestricted
Output signal and power supply				2-wire 4 … 20 mA: 8 … 32 V DC 3-wire 0 … 20 mA: 14 … 30 V DC 3-wire 0 … 10 V: 14 … 30 V DC
Load				2-wire : [(UB – UB min) / 0.02 A] Ω 3-wire current: 500 Ω 3 wire voltage: 10 kΩ
General technical data
Accuracy				± 0.25 % FSO
Long-term stability				< ±0.1 % FSO
Response time				2-wire : <10 ms 3-wire : < 3 ms
Media				Fuels, oils oxygen water
Temperature ranges				Medium: -40 … 125 °C Environment: -40 … 85 °C Storage: -40 … 100 °C
Pressure connection / housing				Stainless steel 1.4404
Seal				FKM
Diaphragm				Stainless steel 1.4435
Media contacting parts				Pressure connection, seals, separating diaphragm
