With up to 800 Hz /�Temperature, Humidity, Air pressure, Vibration, and Light

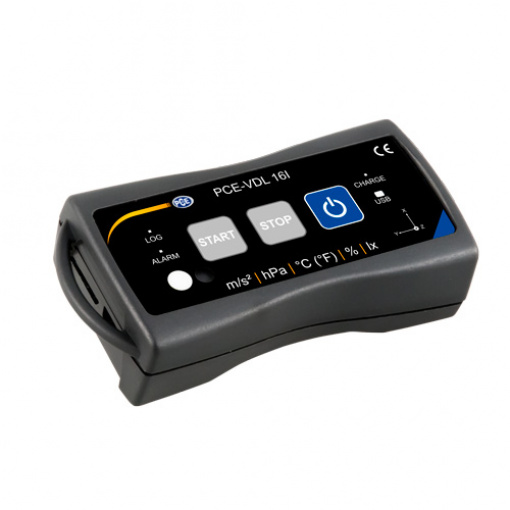

The thermometers of the PCE-VDL series are available in two versions. The thermometer PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz.
The thermometer is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.
Temperature | |
Measuring range | -20 … 65°C / -4 … 149°F |
Accuracy | ± 0.2°C / ± 0.36°F |
Resolution | 0.01°C / 0.018°F |
Max. Sampling rate | 1 Hz |
Humidity | |
Measuring range | 0 … 100% r.H. |
Accuracy | ± 1.8% r.H. |
Resolution | 0.04% r.H. |
Max. Sampling rate | 1 Hz |
Air pressure | |
Measuring range | 10 … 2000 mbar |
Accuracy | ±2 mbar (750 … 1100 mbar); otherwise ± 4 mbar |
Resolution | 0.02 mbar |
Max. Sampling rate | 1 Hz |
Light | |
Measuring range | 0.045 … 188,000 Lux |
Resolution | 0.045 Lux |
Max. Sampling rate | 1 Hz |
3 Axes Acceleration | |
Measuring range | ± 16 g |
Accuracy | 0.24 g |
Resolution | 0.00390625 g |
Max. Sampling rate | 800 Hz |
