Accurate Pt100 digital thermometer / Min, max and mean value function / High accuracy

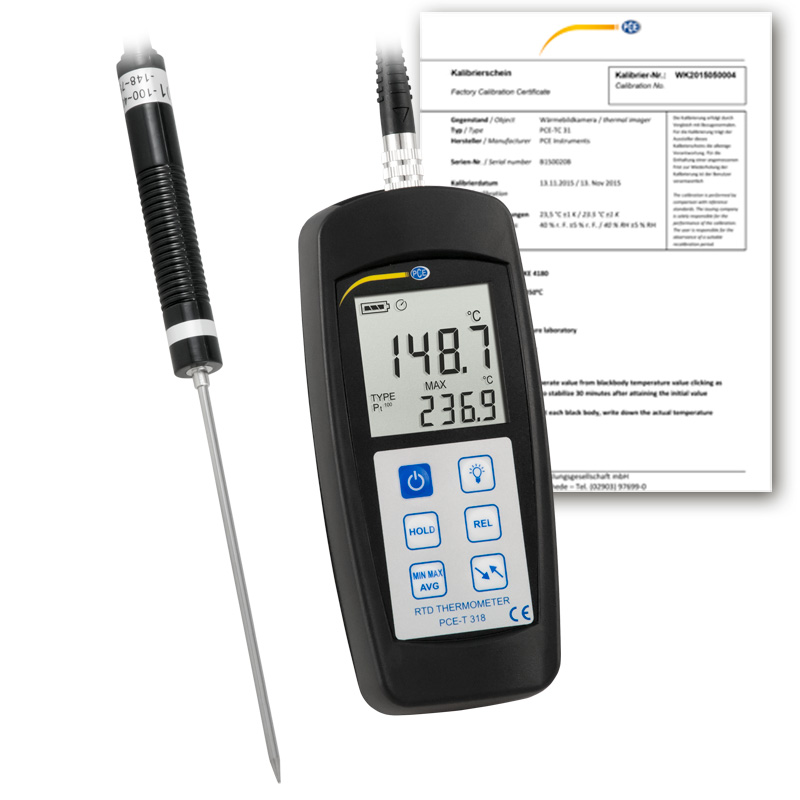

The precision probe thermometer PCE-T 318 is a measuring device for connecting resistance sensors. All platinum resistance sensors according to IEC751 can be connected to this precision thermometer. Pt100 sensors have a resistance of 100 Ohm at 0.0 °C. You can find an explanation of the measuring methods and the different PT-100 sensor elements here.
The measuring range extends from -100 … 300 °C / -148 … 572 °F. The temperature is resolved with 0.1 on the PCE-T 318. The platinum sensors are connected to the measuring device in 4-wire technology. In addition to continuous temperature measurement, the precision thermometer has a manual hold function. Here the user can freeze the measured value in the display by pressing a button. The temperature measuring device is also equipped with an automatic min, max and mean value function.
– High precision
– Large LCD display
– Min, max and mean value function
– Hold function
– Backlight
– Different units can be selected
– Automatic shutdown to save the battery
– incl. Pt100 sensor
– incl. ISO Calibration Certificate
Measuring range | -100 … 300 °C / -148 … 572°F |
Resolution | 0.1 °C / 0.18°F |
Accuracy (at 23°C / 73.4°F ± 5°C / 9°F) | ± 0.1 % of reading + 0.4 °C / 0.72°F |
Sensor | 4-wire PT100 class A sensor included, Pt100, Pt500 & Pt1000 connectable |
Measuring current | ca. 0.53 mA |
Inputs (for temperature sensors) | 1 |
Measuring rate | 0.5 s |
Protection | IP 67 |
Power supply | 3 x 1.5 V AAA batteries |
Battery life | ca. 100 h |
Operating conditions | 0 … 50 °C / 32 … 122°F, 0 … 80 % r.H. |
Storage conditions | -10 … 60 °C / 14 … 140°F, 0 … 80 % r.H. |
Dimensions | Handset: 150 x 66 x 31 mm / 5.9 x 2.6 x 1.2 in Sensor (stainless steel part): 124 x Ø 3,2 mm / 4.9 x Ø 0.13 in Sensor (total): 240 mm x Ø 15 mm / 9.4 x Ø 0.6 in |
Weight | ca. 175 g / < 1 lb |
