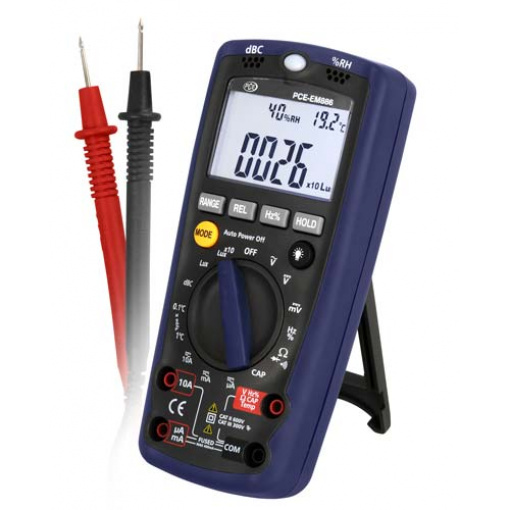

PCE-EM 886 is a portable handheld multifunctional digital device used to measure sound, light, humidity, temperature, AC / DC current, electrical resistance, capacitance and frequency. This multipurpose, all-in-one measuring instrument has myriad applications in a plethora of industries and environments.

As a sound level meter, the measuring device uses a built-in electric condenser microphone to measure noise in factories, schools, offices, airports and more. It can also be used to check the acoustics of studios, auditoriums and sound system installations.

As a light meter, the device uses a built-in silicon diode to measure illuminance and is fully cosine corrected for the angular incidence of light.

For temperature measurement, the device uses an external semiconductor sensor with a type K thermocouple (included in delivery contents).

Humidity measurements are made via a built-in sensor designed for evaluating indoor environmental conditions.

As an electrical multimeter, the device performs AC / DC voltage, current, continuity and diode measurements and testing.

– Large, easy-to-read LCD display with backlight
– Hold, Hz%, range and relative measurement functions
– Low battery indication icon
– Compact, portable design
– Auto-ranging electrical multimeter
– Delivery contents include an external temperature sensor with type K thermocouple and a set of electrical test leads
– Optional external infrared temperature sensor available for purchase separately (see accessories for additional details)

รีวิว

ยังไม่มีบทวิจารณ์

เฉพาะลูกค้าที่เข้าสู่ระบบ และเคยซื้อสินค้าชิ้นนี้แล้วเท่านั้น ที่เขียนบทวิจารณ์ได้

Sound
Measurement range	35 … 100 dB
Resolution	0.1 dB
Frequency range	30 Hz … 10 kHz
Frequency weighting	C
Time weighting	Fast
Accuracy	± 5 dB at 94 dB, 1 kHz sine wave
Microphone	Internal, electric condenser
Light
Measurement range	4,000 … 40,000 lux (40,000 lux range reading x 10)
Overrate display	Highest digit of “OL”
Accuracy	± 5% measurement value + 10 digits (calibrated to standard incandescent lamp at color temperature 2856k)
Repeatability	± 2%
Temperature characteristic	± 0.1% / °C (°F)
Sensor	Internal, silicon photodiode with filter
Humidity
Measurement range	33 … 99% relative humidity (RH)
Resolution	1% RH
Accuracy	± 3% measurement value + 5% RH
Temperature
Measurement range	Indoor: 0 … 50°C Type K: -20 … 1300°C
Resolution	Indoor and Type K to 400°C : 0.1°C Type K to 1300°C : 1°C
Accuracy	± 3% measurement value ± 3°C
Electrical
AC / DC current (auto-ranging for uA and mA) Measurement range Resolution Accuracy	400-uA / 4000-uA / 40-mA / 400-mA / 10 A 0.1-uA / 1-uA / 10-uA / 100-uA / 10-mA ± 1% measurement value ± 2 digits (up to 40-mA DC) ± 1.2% value ± 2 digits (up to 400-mA DC / 40-mA AC) ± 1.5% value ± 2 digits (up to 400-mA AC) ± 2% value ± 5 digits (up to 10 A)
Resistance (auto-ranging) Measurement range Resolution Accuracy	400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ 0.1 Ω / 1 Ω / 10 Ω / 100 Ω / 10 kΩ / 1 MΩ ± 1.5% value ± 4 digits (up to 400 Ω) ± 1.5% value ± 2 digits (up to 400 kΩ) ± 2% value ± 2 digits (up to 4 MΩ) ± 2.5% value ± 2 digits (up to 40 MΩ)
Capacitance (auto-ranging) Measurement range Resolution Accuracy	50 nF / 500 nF / 5 uF / 50 uF / 100 uF 10 pF / 0.1 nF / 1 nF / 10 nF / 0.1 uF ± 5% value ± 20 digits (up to 50 nF) ± 3% value ± 5 digits (up to 50 uF) ± 4% value ± 5 digits (up to 100 uF)
Frequency (auto-ranging) Measurement range Resolution Accuracy	5 Hz / 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 10 MHz 0.001 Hz / 0.01 Hz / 0.1 Hz / 1 Hz / 10 Hz / 100 Hz / 1 kHz ± 1.2% value ± 3 digits (up to 500 kHz) ± 1.5% value ± 4 digits (up to 10 MHz)
General specifications
Display	LCD
Overrange indicator	“OL”
Measurement rate	3 times per second, nominal
Operating conditions	0 … 40°C / 32 … 104°F
Storage conditions	-10 … 60°C / 14 … 140°F
Power supply	1 x 9V battery
Meter dimensions	170 x 78 x 48 mm
Weight	335 g
