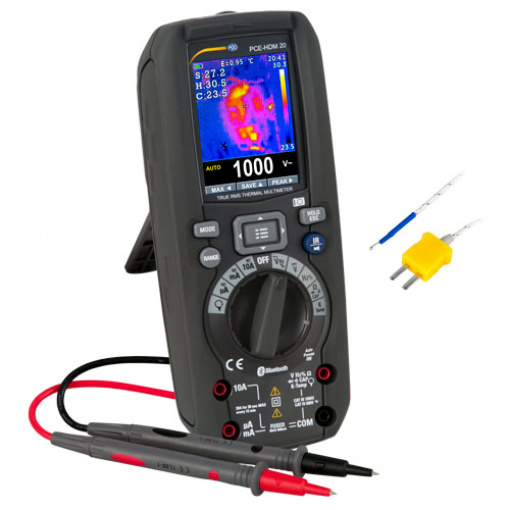

Thermal Imaging Camera PCE-HDM 20

The thermal imaging camera PCE-HDM 20 is a universal measuring instrument. The thermal imaging camera PCE-HDM 20 allows a variety of measurement projects. This makes it easy to investigate current, voltage, capacitance, frequency and resistances. In addition to these measurements, the PCE-HDM 20 thermal imaging camera can also perform measurements such as duty cycle, diode test and continuity test.

In addition to the electrical parameters, the thermal imaging camera can also be used for temperature determination. The determination of the temperature can be done in two different ways. In the first case, the temperature can be measured by plugging in a thermocouple. In the second case, the thermal imaging camera offers non-contact temperature measurement. For this purpose, an infrared optic is installed on the thermal imaging camera, which thus enables the temperature determination from a distance. The thermal image is then clearly shown on the display. For a closer look, there are five different colour palettes available, which can be chosen at will. To measure the temperature using the IR sensor, a lamp helps to make darkened areas brighter. In addition, the thermal imaging camera has a laser that helps to locate the target area.
