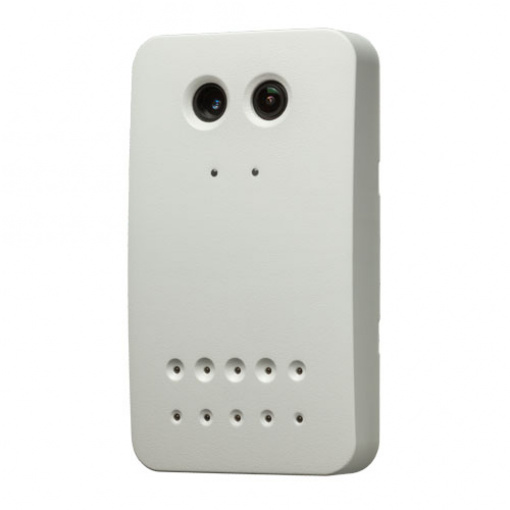

People Counter Thermal Imaging Camera Vector 4D – Analytical

The Vector 4D people counter thermal imaging camera is the most advanced people counter in the world. The time of flight measurement method does not just allow people to be counted, but rather to recognize them. The people counter works completely anonymously and in compliance with data protection regulations.

The people counter recognizes people who move through the counting window at up to 5 m/s. The people counter not only recognizes the person, but can also distinguish whether it is an adult or a child. This makes the people counter an innovative aid, especially when analyzing customer groups. Furthermore, the people counter can recognize employees via a lanyard and exclude them from the people count.

A special feature of the Vector 4D people counter is the ability to continuously monitor certain areas. In a hardware store, for example, this can be the area before the wood is cut. The people counter measures and recognizes the number of people waiting and can automatically trigger a command for an employee to be called for advice.

The people counter is integrated into the network via the Ethernet interface. Power is supplied via PoE. The people counter can be read out via various IoT protocols. The integrated web server also offers a web interface for visualizing the measured values. Up to 32 Vector 4D Count people counters can be connected to one another via LAN.

The people counter Vector 4D is able to monitor inputs of shops safely and contactlessly via its web interface. The people counter helps to determine the maximum number of people in a shop. This makes the people counter ideally suited to take over access control in pharmacies, grocery stores, hardware stores, furniture stores. The people counter can indicate live in the web interface whether people are still allowed to enter a shop. This is also done in colour.

– Mounting height: 2 … 4.5 m
– Detection range: 1.6 … 5.1 m
– Acquisition speed: max. 5 m/s
– Data protection-compliant people counting
– Employee recognition
– Height measurement
– Easy integration via MQTT, Rest API or HTTP Post
– HTML5 incl.
– Connection of 32 people counters possible

Talk to us if you need help with your measuring task with a people counter
