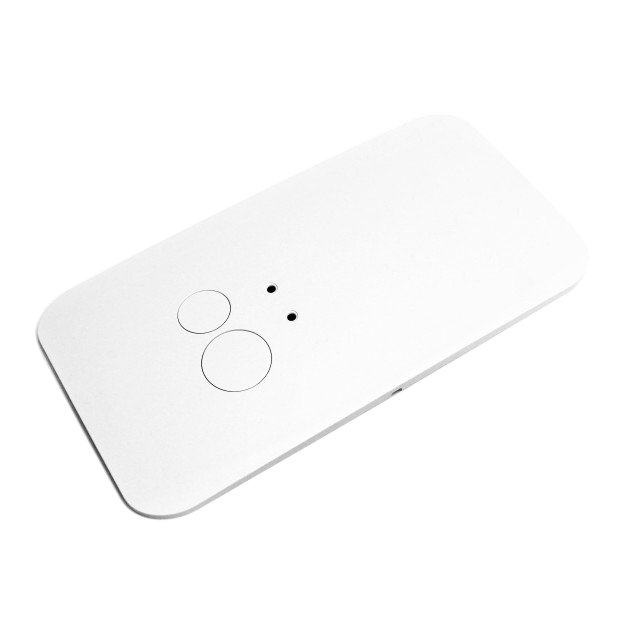

People Counter Thermal Imaging Camera Gazelle IP Counter 40° Master unit

The people counter thermal imaging cameras of the IRC5704-MW Gazelle series are infrared based and record people through their heat signature as soon as they step into the sensor field. A counting process is triggered when one of the up to 16 freely definable counting lines is exceeded.

An integrated web server makes it possible to configure the sensor from the browser and to query the recorded data directly via the network. In addition, an API documented completely in English is made available for many systems.

This is the master unit to which up to 8 node units can be connected. The node units have the same technical data but do not have an integrated web server.

The people counters recognize people and visitors based on their thermal image. The people counter works independently of the lighting conditions and can be used in areas and on buildings that are not illuminated at night as well as during the day.

By recognizing people based on their thermal image, the privacy of visitors is largely protected, since the people counters do not recognize faces. The counter readings of the customer counter can be queried via a web browser. The people counters have their own server on which the measurement data are stored.

Due to the simple installation, the sensors can be used quickly and without great effort in department stores, supermarkets, museums etc. Similar to a smoke detector, the people counter is mounted on the ceiling and is simply connected to the existing infrastructure via an Ethernet cable. In addition to counting, the people counters of the Gazelle series offer further options for analyzing the flow of customers and the movement behavior of people. For example, the queues at checkouts can be analyzed with the people counter.

Precise knowledge of the number of visitors / customers in your shop enables you to reliably evaluate the yield per customer.

– 40° field of view
– Mounting height: 3.5 m … 7.5 m
– Detection range: 2 … 4.5 m
– Detection speed: 0.5 m/s … 3 m/s
– Data protection-compliant people counting





Technical Data
Mounting height	3.5 m … 7.5 m
Detection speed	0.5 m/s … 3 m/s
Temperature sensitivity	>2°C
Possible counting lines	2 … 16 with up to 32 counting registers
Working range	0°C … 40°C (not damp rooms)
Power supply	12 … 28 VDC or POE
Input power	12V – 160mA 24V – 80mA
Connections	2 RJ45; 1x LAN 1x to node unit
Housing dimension	190mm x 111mm x 63mm
Weight	0.3kg
