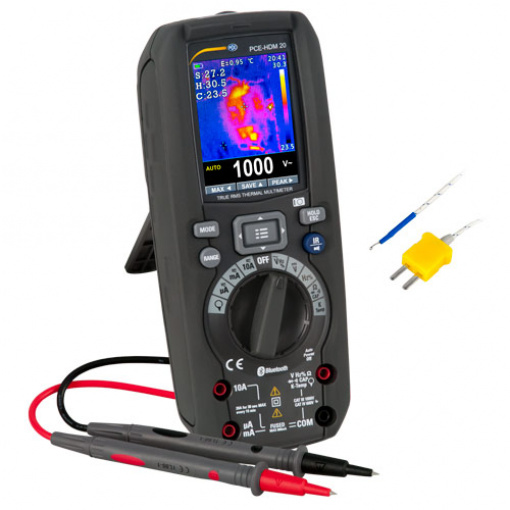

Thermal Imager PCE-HDM 20

The thermal imager PCE-HDM 20 is a universal measuring instrument. The thermal imager PCE-HDM 20 allows a variety of measurement projects. This makes it easy to investigate current, voltage, capacitance, frequency and resistances. In addition to these measurements, the PCE-HDM 20 thermal imager can also perform measurements such as duty cycle, diode test and continuity test.

In addition to the electrical parameters, the thermal imager can also be used for temperature determination. The determination of the temperature can be done in two different ways. In the first case, the temperature can be measured by plugging in a thermocouple. In the second case, the thermal imager offers non-contact temperature measurement. For this purpose, an infrared optic is installed on the thermal imager, which thus enables the temperature determination from a distance. The thermal image is then clearly shown on the display. For a closer look, there are five different colour palettes available, which can be chosen at will. To measure the temperature using the IR sensor, a lamp helps to make darkened areas brighter. In addition, the thermal imager has a laser that helps to locate the target area.

– Automatic shutdown
– 2.8″ LC Display
– Built-in thermal imaging camera
– Heat measurement via IR or thermocouple
– Resistance measurement and continuity test
– Diode test and capacitance measurement

Temperature measurement with thermal imaging camera
Sampling rate		3 times per second
Field of view (FOV)		21° x 21°C / 0.5 m / 1 ft 7.6″
Spatial resolution (IFOV)		4.53 mrad
Resolution infrared camera		80 x 80 Pixel
Thermal sensitivity / NETD		<0.1°C (0.18°F) at 30°C (86°F) / 100 mK
Frame rate		50 Hz
Focal length		7.5 mm
Sensor type		uncooled microbolometer
Spectral range		8 … 14 µm
Measuring range object temperature		-20 … 260°C / -4 … 500°F
Measurement accuracy		± 3°C / 5.4°F or 3% of the measured value, at 10 … 35°C /  50 … 95°F ambient temperature and > 0°C / 32°F object temperature
General Technical Data
Display		Colour TFT, 6000 points with status display
Conversion		TRMS
Reference standards		IEC/EN61010-1, IEC/EN61326-1
Isolation		Double
Pollution degree		2
Overload category		CAT IV 600 V, CAT III 1000 V
Battery type		1 x 7.4V Li-Ion battery, 2300-mAh
Power supply charger		100 / 240V AC, 50/60 Hz, 10V DC, 1 A
Battery level indicator		Yes
Automatic shutdown		After 15, 30 or 60 minutes of inactivity (deactivatable)
Fuses		F10A/1000V, 10 x 38 mm (Input 10 A) F800mA/1000V, 6 x 32 mm (Input mA, µA)
Test temperature		18 … 28°C / 64 … 82°F
Operating conditions		5 … 40°C / 41 … 104°F, <80% r.H.
Storage conditions		-20 … 60°C / -4 … 140°F, <80% r.H.
Maximum operating height		2000 m / 2187 yd
Dimensions		175 x 85 x 55 mm / 6.9 x 3.3 x 2.1 in
Weight		540 g / 1 lb 3oz
Technical Data DC Voltage
Measuring range	Resolution	Measurement accuracy	Input resistance	Overload protection
600 mV	0.1 mV	± (0.2% of measurement value + 5 Dgt)	>10 MΩ	1000V DC / ACrms
6V	0.001V	± (0.2% of measurement value + 5 Dgt)	>10 MΩ	1000V DC / ACrms
60V	0.01V	± (0.2% of measurement value + 5 Dgt)	>10 MΩ	1000V DC / ACrms
600V	0.1V	± (0.2% of measurement value + 5 Dgt)	>10 MΩ	1000V DC / ACrms
1000V	1V	± (0.2% of measurement value + 5 Dgt)	>10 MΩ	1000V DC / ACrms
Technical Data AC Voltage (TRMS)
Measuring range	Resolution	Measurement accuracy (50 … 60 Hz)	Measurement accuracy (61 Hz … 1 kHz)	Overload protection
6V	0.001V	± (0.8% of measurement value +5 Dgt)±	(2.4% of measurement value +5 Dgt)	1000V DC / ACrms
60V	0.01V	± (0.8% of measurement value +5 Dgt)	± (2.4% of measurement value +5 Dgt)	1000V DC / ACrms
600V	0.1V	± (0.8% of measurement value +5 Dgt)	± (2.4% of measurement value +5 Dgt)	1000V DC / ACrms
1000V	1V	± (0.8% of measurement value +5 Dgt)	± (2.4% of measurement value +5 Dgt)	1000V DC / ACrms
Technical Data DC and AC voltage (TRMS)
Measuring range	Resolution	Measurement accuracy	Input resistance	Overload protection
6V	0.001V	± (2.4% of measurement value +20 Dgt)	>10 MΩ	1000V DC / ACrms
60V	0.01V	± (2.4% of measurement value +20 Dgt)	>10 MΩ	1000V DC / ACrms
600V	0.1V	± (2.4% of measurement value +20 Dgt)	>10 MΩ	1000V DC / ACrms
1000V	1V	± (2.4% of measurement value +20 Dgt)	>10 MΩ	1000V DC / ACrms
Technical Data Direct Current
Measuring range	Resolution	Measurement accuracy	Overload protection
600 µA	0.1µA	± (0.9% of measurement value +5 Dgt)	Protection 800-mA / 1000 V
6000 µA	1 µA	± (0.9% of measurement value +5 Dgt)	Protection 800-mA / 1000V
60-mA	0.01-mA	± (0.9% of measurement value +5 Dgt)	Protection 800-mA / 1000V
600-mA	0.1-mA	± (0.9% of measurement value +8 Dgt)	Protection 800-mA / 1000V
10 A	0.01 A	± (1.5% of measurement value +5 Dgt)	Protection 10 A / 1000V
Technical Data Alternating Current (TRMS)
Measuring range	Resolution	Measurement accuracy	Overload protection
600 µA	0.1 µA	± (1.2% of measurement value +5 Dgt)	Protection 800-mA / 1000V
6000 µA	1 µA	± (1.2% of measurement value +5 Dgt)	Protection 800-mA / 1000V
60-mA	0.01-mA	± (1.2% of measurement value +5 Dgt)	Protection 800-mA / 1000V
600-mA	0.1-mA	± (1.2% of measurement value +5 Dgt)	Protection 800-mA / 1000V
10 A	0.01 A	± (1.5% of measurement value +5 Dgt)	Protection 10 A / 1000V
Technical Data Coil Current
Measuring range	Resolution	Measurement accuracy (50 … 60 Hz)	Measurement accuracy (61 Hz … 1 kHz)	Overload protection
30 A	0.01 A	± (0.8% of measurement value +5 Dgt)	± (2.4% of measurement value +5 Dgt)	1000V DC / ACrms
300 A	0.1 A	± (0.8% of measurement value +5 Dgt)	± (2.4% of measurement value +5 Dgt)	1000V DC / ACrms
3000 A	1 A	± (0.8% of measurement value +5 Dgt)	± (2.4% of measurement value +5 Dgt)	1000V DC / ACrms
Technical Data Diode Test
Test current	<1.5-mA
Maximum voltage at the open circuit	3.3V DC
Resistance and continuity test
Measuring range	Resolution	Measurement accuracy	Acoustic warning sound	Overload protection
600 Ω	0.1Ω	± (0.5% of measurement value +10 Dgt)	>50 Ω	1000V DC / ACrms
6 Ω	0.001 kΩ	± (0.5% of measurement value +5 Dgt)	>50 Ω	1000V DC / ACrms
60 kΩ	0.01 kΩ	± (0.5% of measurement value +5 Dgt)	>50 Ω	1000V DC / ACrms
600 kΩ	0.1 kΩ	± (0.5% of measurement value +5 Dgt)	>50 Ω	1000V DC / ACrms
6 MΩ	0.001 MΩ	± (0.5% of measurement value +5 Dgt)	>50 Ω	1000V DC / ACrms
60 MΩ	0.01 MΩ	± (2.5% of measurement value +10 Dgt)	>50 Ω	1000V DC / ACrms
Technical Data Frequency
Measuring range	Resolution	Measurement accuracy	Overload protection
40 Hz … 10 kHz	0.01 Hz … 0.001 kHz	± (0.5% of measurement value)	1000V DC / ACrms
60 Hz	0.01 Hz	± (0.09% of measurement value +5 Dgt)	1000V DC / ACrms
600 Hz	0.1 Hz	± (0.09% of measurement value +5 Dgt)	1000V DC / ACrms
6 kHz	0.001kHz	± (0.09% of measurement value +5 Dgt)	1000V DC / ACrms
60 kHz	0.01kHz	± (0.09% of measurement value +5 Dgt)	1000V DC / ACrms
600 kHz	0.1 kHz	± (0.09% of measurement value +5 Dgt)	1000V DC / ACrms
6 MHz	0.001 MHz	± (0.09% of measurement value +5 Dgt)	1000V DC / ACrms
10 MHz	0.01 MHz	± (0.09% of measurement value +5 Dgt)	1000V DC / ACrms
Technical Data Duty Cycle
Measuring range	Resolution	Measurement accuracy
5 … 95%	0.1%	± (1.2% of measurement value +2 Dgt)
Technical Data Capacitance
Measuring range	Resolution	Measurement accuracy	Overload protection
60 nF	0.01 nF	± (1.5% of measurement value +20 Dgt)	1000V DC / ACrms
600 nF	0.1 nF	± (1.2% of measurement value +8 Dgt)	1000V DC / ACrms
6 µF	0.001 µF	± (1.5% of measurement value +8 Dgt)	1000V DC / ACrms
60 µF	0.01 µF	± (1.2% of measurement value +8 Dgt)	1000V DC / ACrms
600 µF	0.1 µF	± (1.5% of measurement value +8 Dgt)	1000V DC / ACrms
6000 µF	1 µF	± (2.5% of measurement value +20 Dgt)	1000V DC / ACrms
Technical Data Temperature (Thermoelement Type K)
Measuring range	Resolution	Measurement accuracy	Overload protection
-40 … 600°C / -40 … 1112°F	0.1°C / 0.18°F	± (1.5% of measurement value 3°C / 5.4°F)	1000V DC / ACrms
600 … 1000°C / 1112°F … 1832°F	1°C / 1.8°F	± (1.5% of measurement value 3°C / 5.4°F)	1000V DC / ACrms
