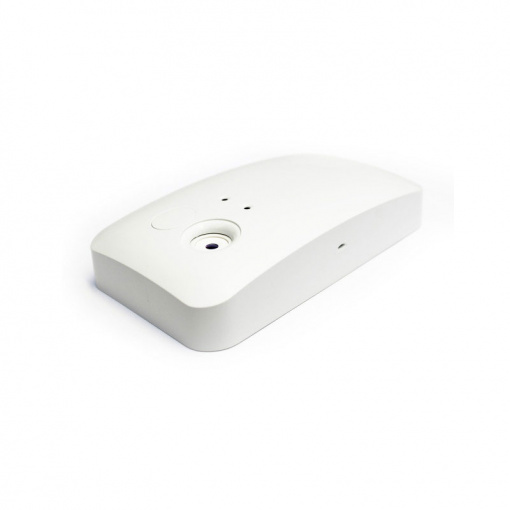

People Counter Thermal Imager IRC 5104-NW Node/Slave unit

The people counter IRC 5104-NW is used as an additional people counter for the master unit. The people counter is used for wide entrances or if several entrances and exits are to be monitored.

The people counter is based on infrared and records people through their heat signature as soon as they step on the sensor field. A counting process is triggered when one of the up to 16 freely definable counting lines is exceeded.

An integrated web server makes it possible to configure the sensor from the browser and to query the recorded data directly via the network. In addition, an API documented completely in English is made available for many systems.

This is the slave unit of the people counter that is connected to the master unit. Up to eight slave / node units can be connected to a master people counter. The node units have the same technical data but do not have an integrated web server.

– 40° field of view
– Mounting height: 3.5 m … 7.5 m
– Detection range: 2 … 4.5 m
– Detection speed: 0.5 m/s … 3 m/s
– Data protection-compliant people counting
– Node / slave unit (a master unit is required)

Technical Data
Mounting height	3.5 m … 7.5 m
Detection area	2 … 4.5 m
Detection speed	0.5 m/s – 3 m/s
Temperature sensitivity	>2°C
Possible counting lines	2 … 16 with up to 32 counting registers
Working range	0°C … 40°C (non-condensing)
Power supply	12 … 28 VDC or POE
Power consumption	160mA @ 12 V 80mA @ 24 V
Connections	2 RJ45; 1x LAN 1x to node unit
Case dimensions	190 mm x 111 mm x 63 mm
Weight	0.3kg
