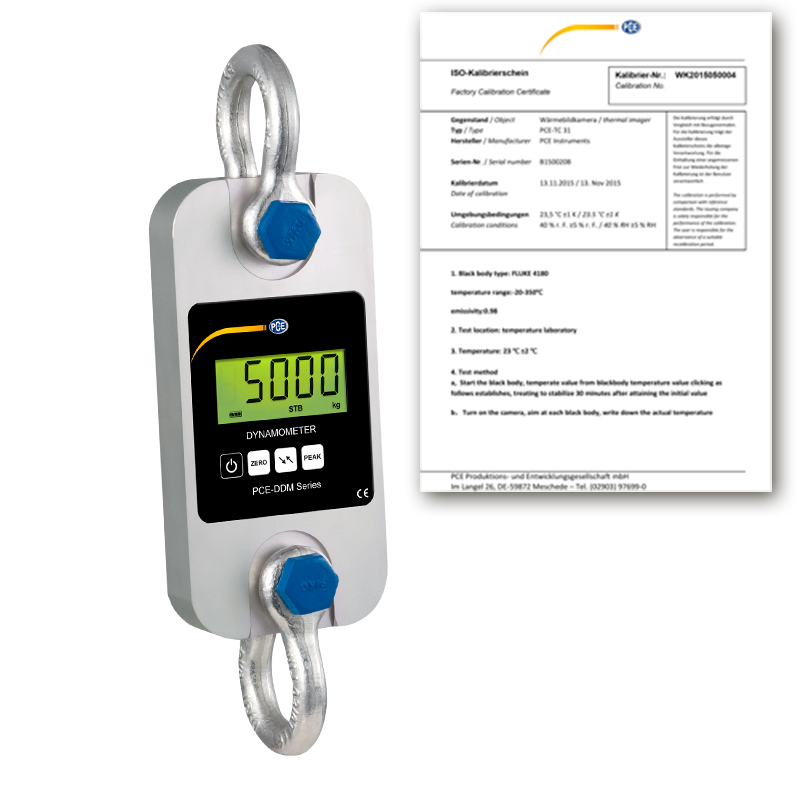

Tension Load Cell PCE-DDM 5WI-ICA Incl. ISO Calibration

The tension load cell is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension dynamometer. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension dynamometer is supplied with two shackles in a transport case.

Interesting functions of the tension load cell are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile dynamometer is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

– Measuring range up to 5,000 kg / 50 kN
– Low device weight
– Compact design
– Long battery life
– PEAK Hold function
– Summing function
– Measurement units: kg / t / lbs / N / kN
– Adjustable gravitation range
– Shackles and transport case incl.
– incl. ISO calibration certificate

Measuring range	5000 kg / 50 kN / 11023 lbs
Resolution	2 kg / 20 N / 4 lbs
Min. range	40 kg / 88 lbs
Weight (with shackle)	3 kg / 6.6 lbs (6 kg / 13 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10 °C … +40 °C / +14 °F … +104 °F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours



Technical drawing

A B C D Ø E H Material 285 mm 11.2 in 123 mm 4.8 in 57 mm 2.2 in 210 mm 8.3 in 58 mm 2.3 in 405 mm 15.9 in Aluminium
