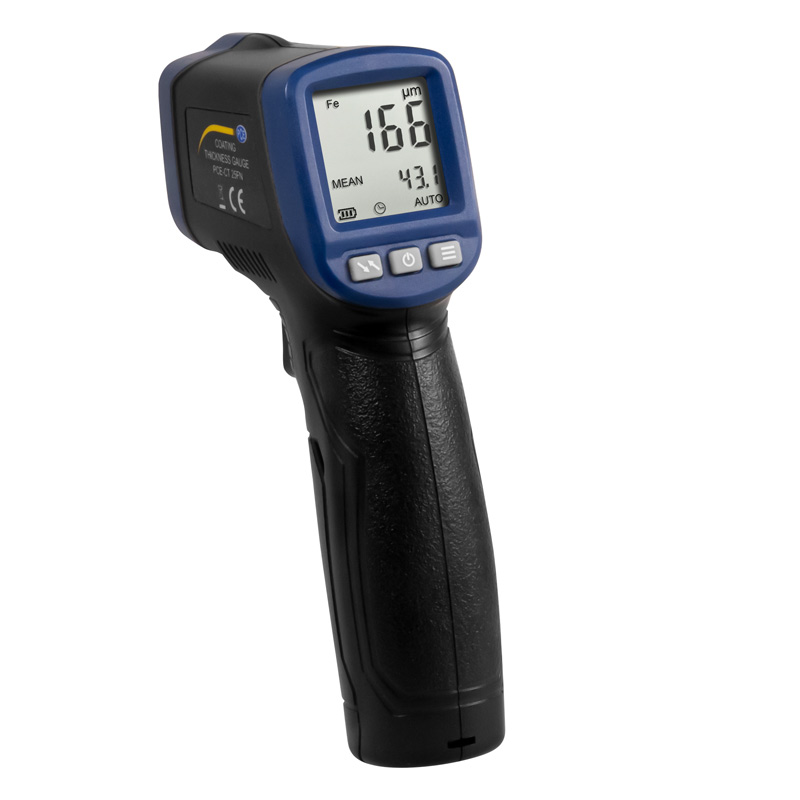

Surface Thickness Measuring Device PCE-CT 25FN

The Surface Thickness Measuring Device is used for the quick and precise detection of layer thicknesses on metals. In comparison to many other paint thickness gauges, this Surface Thickness Measuring Device does not have to differentiate between ferrous and non-ferrous metal. With the small and compact design of the Surface Thickness Measuring Device, one-hand operation is possible. Despite its small size, the Surface Thickness Measuring Device has a measuring range of 1500 µm and an accuracy of ± (3% + 1 µm).

The measured values displayed can be output in µm, mm and in mils on the Surface Thickness Measuring Device. In addition to measuring the layer thickness, the Surface Thickness Measuring Device can determine the smallest, the largest and also the mean value from a series of different measurements. The Surface Thickness Measuring Device also has an automatic switch-off function.

– small and compact design

– fast measuring frequency

– Calibration set included

– Different units can be selected

– also for continuous measurements

– comfortable one-hand operation

Measuring range	0 … 1500 µm
Measurement accuracy	± (3% + 1 µm)
resolution	0.1 µm in the measuring range 0 … 100 µm
	1 µm in the measuring range> 100 µm
units	µm, mm, mils
Smallest curvature	convex 5 mm, concave 25 mm
Smallest measuring area	Ø 20 mm
Minimum thickness of the substrate	Fe: 0.3 mm
	NFe: 0.05 mm
Measuring rate	Max. 2 Hz
Power supply	9 V block battery
Operating conditions	-10 … 50 ° C, 20 … 90% RH non-condensing
Storage conditions	-10 … 60 ° C, 20 … 90% RH non-condensing
Dimensions	143 x 85 x 39 mm
Weight	approx. 100 g
Housing material	SECTION
