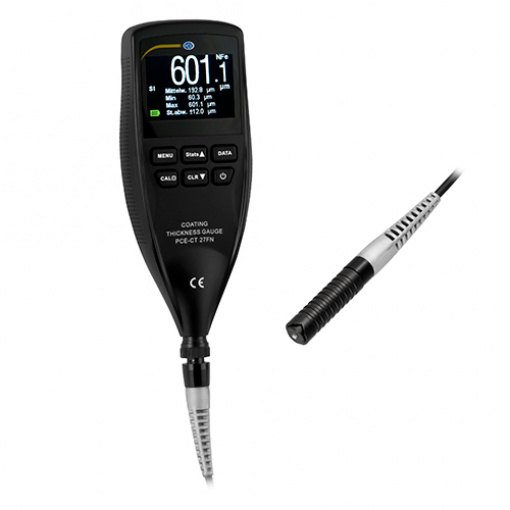

PCE-CT 27FN Surface Testing – Coating Thickness Gauge

PCE-CT 27FN is a Surface Testing – Coating Thickness Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum.

Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Surface Testing – Coating Thickness Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.

– Features an external sensor with v-groove for reliable measurement on small cylindrical parts
– Includes a set of calibration standards for ferrous and non-ferrous metals
– Comes with a set of plastic shims or foils

Measuring range	0 … 1250 µm / 0 … 50 mils
Accuracy	±(2 % + 2 µm) / ±(2 % + 0.1 mils)
Resolution	0.1 µm / 0.1 mil
Operating temperatures	-10° C… +50° C / +14° F … +122° F
Power	2 x 1.5 V batteries
Dimensions	166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in
Weight	0.180 kg / 0.40 lb
