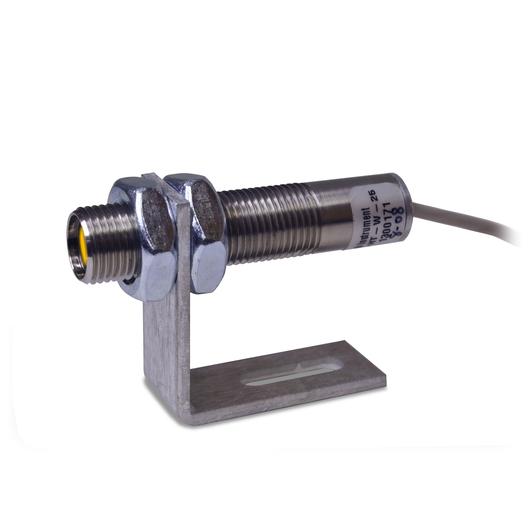

ROS-HT-W-25 Remote Optical Sensor High Temperature

หมวดหมู่: Stroboscope

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

DESCRIPTION

1-50,000 RPM. Threaded stainless steel remote optical sensor with a visible incandescent white light source. Ideal for automotive and truck cooling system testing up to 125°C (257°F).

SPECIFICATIONS*

	CE marked
Operating Distance	2 feet [61 cm] and 45° offset from reflective tape target
Speed Range	1-50,000 RPM
Operating Temperature	-13° to 257°F [-25° to 125°C]
Power Required	6 to 24VDC @ 40mA
Output Signal	TTL same as the source
Standard Cable	25 feet [7.6 m]
Dimensions	0.625 in. diameter x 2.90 in. length [16 x 74 mm]
