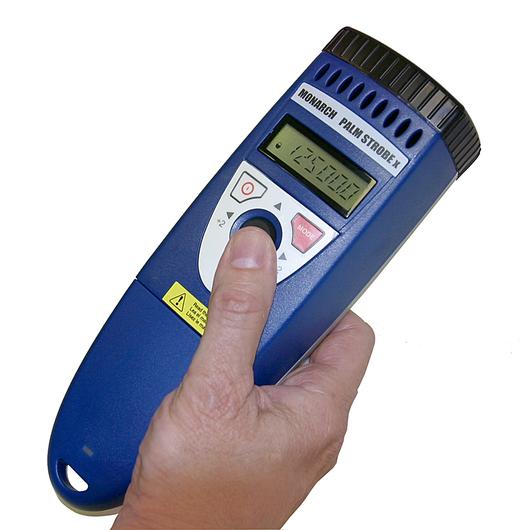

Palm Strobe x Pocket-Size Portable Stroboscope

หมวดหมู่: Stroboscope

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

The Palm Strobe x offers excellent brightness, exceptional features, and extra-long battery life. The unique one-touch joystick-type button allows single-hand operation for fast fractional RPM tuning. Select the mode of operation for internal tuning, external TTL input, tachometer display, and x2/÷2 functions. Eight (8) memory positions provide rapid recall of user-defined frequencies. (US Patent D492,805)

Removable, rechargeable battery pack (US Patent 6,945,666)
Unique joy-stick tuning button for single-hand operation
Lightweight
Flash rates to 12,500 FPM
Tachometer Mode from remote sensors
TTL compatible input/output
NIST Calibration included

SPECIFICATIONS

	Palm Strobe x
Display	6-digit alphanumeric backlit LCD
Light Power	7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM
Flash Duration	10-30 µsec typical
Flash Lamp Life	100 million flashes typical
Internal Mode	Flash Range: 100-12,500 FPM
	Resolution: 0.1 FPM
	Accuracy: greater of ± 0.01% of reading or ± 0.5 FPM
External Mode	Range & Display: 0-12,500 FPM
	Display Update Rate: 1 second typical
	FPM Accuracy: +/-0.2 FPM
	Trigger to Flash Delay: <5 µsec
	External Output: 0-volt TTL compatible (+12V pk max 20 µsec min pulse width; positive edge triggered
Tachometer Mode�	Range: 5-250,000 RPM
	Accuracy: +/-0.01% or 0.1 RPM
	Display Update Rate: 1 second typical
	External Input: 0 to 5 volt TTL compatible (+12V pk max) 20 micro-sec min pulse width; positive edge triggered
Run Time	2 hours typical @1800 FPM > 1 hour typical @ 6000 FPM
Adjustment	Four-quadrant tuner button with blinking decade select for flash rate up and down, multiply by 2 and divide by 2
Output Pulse	0 to 5VDC typical – 350 μsec positive pulse (2.5 mm) 1/8″ phone plug
Power	Removable 6VDC rechargeable NiMH battery pack
Weight	1.2 lbs. (0.55 kg) including battery
Strobe Dimensions	3.04 x 9.34 in. [77 x 237 mm]
