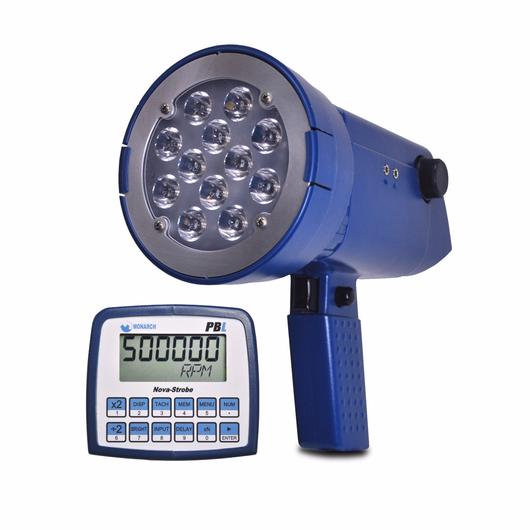

Nova-Strobe PBL LED Portable Stroboscope

หมวดหมู่: Stroboscope

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

The Monarch Nova-Strobe LED family of rugged industrial stroboscopes provides an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications.

The PBL has all the features of the DBL and adds external phase delay, time delay, and virtual RPM mode. The PBL will also run continuously, 24/7 with the power supply/recharger. The PBL is available stand-alone or as a kit.

To see the latest in portable stroboscope technology, take a look at the Nova-Pro 500!

FEATURES

Flash rates from 30 to 500,000 flashes per minute
Diagnostic inspection and RPM checks
Digital LCD backlit display
Tripod mounting bushing (1/4-20) in the handle
CE marked and RoHS compliant
Flash rate may be displayed in Flashes Per Minute (FPM) or Flashes per Second (Hz)
Adjustable brightness control
Lightweight industrial design
12-button keypad makes entering flash rates extremely quick
Individual input and output TTL jacks (1/8 inch phone) provides power to remote sensors and allows “daisy-chaining” of multiple strobes
Tachometer mode allows accurate speed measurement up to 500,000 RPM using external sensors
Brightest portable LED strobes available
NIST Certificate of Calibration�included
Continuous 24/7 operation

Benefits of LED

Energy efficient with long battery life (8-10 hours typical)
Extremely bright, uniform light output
Completely silent
Cool operation
No lamp replacements
Extremely high flash rates (up to 500,000 FPM)

SPECIFICATIONS*

Compare:	BBL Basic	DBL Deluxe	PBL Phaser
Flash Range (FPM/RPM)	30-500,000	30-500,000	30-500,000
Display	6-digit numeric and 5-digit alphanumeric LCD	6-digit numeric and 5-digit alphanumeric LCD	6-digit numeric and 5-digit alphanumeric LCD
Accuracy/Resolution	0.01%	0.004% of setting or +/- 1 lsd/0.01 FPM	0.004% of setting or +/- 1 lsd/0.01 FPM
Light Output	4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max, light output: 27,000 Lux	4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max, light output: 27,000 Lux	4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max, light output: 27,000 Lux
Flash Duration	Adjustable to 14 degrees/3000µsecs max	Adjustable to 14 degrees/3000µsecs max	Adjustable to 14 degrees/3000µsecs max
Light Source	12 LED array	12 LED array	12 LED array
Color Temperature	Approx. 6200°K	Approx. 6200°K	Approx. 6200°K
External Trigger (in/out)		TTL (24Vdc max) input; provides 3.3 Vidc TTL output	TTL (24Vdc max) input; provides 3.3 Vidc TTL output
Tachometer Mode	N/A	5-500,000 RPM (use with optional remote sensor)	5-500,000 RPM (use with optional remote sensor)
Programmable Memory	Yes	Yes	Yes
Internal Phase Shift	N/A	Yes	Yes
Phase Delay�		0.1 to 359.9 degrees	0.1 to 359.9 degrees
Time Delay	N/A	0.01 to 1000 msec.	0.01 to 1000 msec.
Virtual RPM (slow motion)	N/A	0-200 VRPM	0-200 VRPM
Operating Time	8-10 hours typical @ 1800 FPM	8-10 hours typical @ 1800 FPM	8-10 hours typical @ 1800 FPM with batteries or continuous using power supply
Power Supply	Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger	Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger	Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger or continuous using 115/230 50/60HZ Vac power supply/recharger
Weight	1.9 lbs. (860g)	1.9 lbs. (860g)	1.9 lbs. (860g)
Size ( LxWxH)	Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90mm); Reflector Housing: 4.8″ (122mm) dia.; Handle: 4.254″ (108mm long)	Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90mm); Reflector Housing: 4.8″ (122mm) dia.; Handle: 4.254″ (108mm long)	Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90mm); Reflector Housing: 4.8″ (122mm) dia.; Handle: 4.254″ (108mm long)
