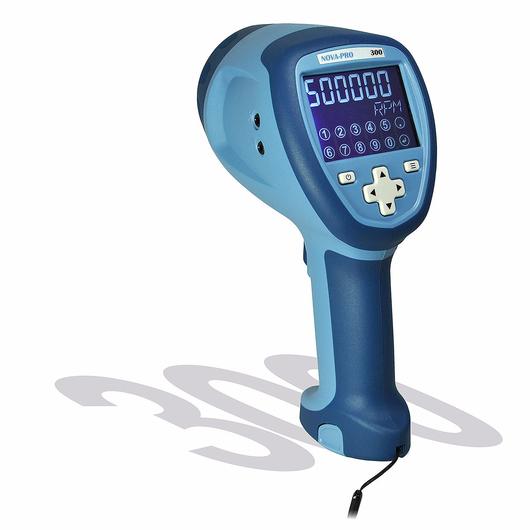

Nova-Pro® 300 LED Stroboscope/Tachometer

NOVA-PRO 300

หมวดหมู่: Stroboscope

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

DESCRIPTION

We have combined all the features of our handheld LED with a full-function laser tachometer to create a compact, ergonomic, and extremely powerful two-in-one predictive maintenance tool. The twelve (12) LEDs stroboscope light source is extraordinarily bright yet extremely efficient allowing cool, continuous operation and long battery life (up to 9.5 hours on a single charge); continuous operation is also possible with the optional AC adapter.

Nova-Pro 300 AC and AC Kit do not include a battery or recharging station; however, they can be purchased separately.

The Nova-Pro 100�is designed for simple stroboscopic stop motion inspection and RPM measurement applications. The patented integral laser module is an optional item that can be added to make the 100 a full-featured tachometer.

The Nova-Pro 300�has all the features of the 100 and includes the patented integral laser module for tachometer mode or strobe trigger mode plus adds a high-contrast inverse blue LCD with backlight and touch-sensitive number pad for setting flash rates quickly. Other features include ultra-high intensity LEDs for more light output, memory for up to 10 preset flash rates, input/output jacks for external sensors or pulse repeater output, and NIST calibration certificate.

The Nova-Pro 300 is available as a stand-alone battery-powered or AC-powered device. It can also be purchased in kit form which ships in a protective die-cut foam-lined carry case. Select the model (above) to view the contents and price of each available model.

Note: Integral optical sensor and flash trigger protected under US Patent 10,080,268.

KEY FEATURES

Stroboscope & Tachometer in one!
Super bright LEDs
Splash resistant IP54 enclosure
1/4″ x 20 tripod mount
Ergonomic one-handed operation
Removable rechargeable Li-ion battery
Continuous AC operation available
TTL compatible input/output jacks (300, 500)
NIST Certificate of Calibration�included on designated models

BENEFITS OF LED

Energy efficient with long battery life (9 hours typical)
Extremely bright, uniform light output
Completely silent
Cool operation
No lamp replacements
Extremely high flash rates (up to 999,999 FPM)

TYPICAL USES

Visual running inspections of fan blades, motors, shafts, gears, rollers, webs, belts, chains, sprockets, and much more without having to shut down your process
Diagnose alignment issues
Determine the speed of rotating equipment using strobe or built-in laser tachometer
Troubleshoot high-speed automation processes by placing them in virtual slow motion
Print quality inspection
Textile processing inspection
Phase reference balancing

Compare:	100	300	500
Flash Range (FPM/RPM)	30-999,999	30-999,999	30-999,999
Display	6-digit numeric and 5-digit alphanumeric LCD reflective	6-digit numeric and 5-digit alphanumeric LCD with touch keypad; high-contrast blue background/white characters with backlight	6-digit numeric and 5-digit alphanumeric LCD with touch keypad; high-contrast blue background/white characters with backlight
Accuracy/Resolution	0.001% of setting or +/-1 Lsd/6 digits to 0.001	0.001% of setting or +/-1 Lsd/6 digits to 0.001	0.001% of setting or +/-1 Lsd/6 digits to 0.001
Light Output	3400 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max., light output: 24,000 Lux	5500 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max., light output: 30,000 Lux	5500 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max., light output: 30,000 Lux
Flash Duration	Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs)	Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs)	Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs)
Light Source	12 LED Array	12 high-output LED Array	12 high-output LED Array
Color Temperature	Approx. 6200 K	Approx. 6200 K	Approx. 6200 K
External Triggers (in/out)	N/A	TTL (12VDC max) input; provides 3.3 Vdc TTL output	TTL (12VDC max) input; provides 3.3 Vdc TTL output
Tachometer Mode	0-999,999 RPM with **integral laser (optional)	0-999,999 RPM with **integral laser or external input	0-999,999 RPM with **integral laser or external input
Programmable Memory	N/A	Yes (10 set-points)	Yes (10 set-points)
Internal Phase Shift:	N/A	N/A	Yes
Phase Delay	N/A	N/A	-360.0 to 345.0 degrees
Time Delay�	N/A	N/A	-50.000 to 50.000 msec
Virtual RPM (slow motion)	N/A	N/A	-60.0 to 60.0 VRPM
Power Supply (battery)	Removable/rechargeable Li-Ion battery pack with 115/230 50/60 Hz recharging station		Removable/rechargeable Li-ion battery packs (qty. 2) with 115/230 50/60 Hz recharging station
Operating Time	Battery pack – 9.5 hours typical (6000 FPM, 2 deg. duty cycle); AC Power adapter (optional) – continuous
Power Supply A/C	15/230 Vac 50/60Hz AC Adapter with 6 ft. (3m) cable and interchangeable outlet adapters (optional)
Weight	1.4 lbs. [635 grams] with battery
Size ( LxWxH)	9.5 x 3.75 x 5.5 in. [241 x 95 x 140mm]
Housing Material/Rating	ABS/IP54
