SPL Meter PCE-SLT

Name: SPL Meter PCE-SLT
SKU: 17265
Availability: BackOrder

PCE-SLT

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: SPL Meter

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

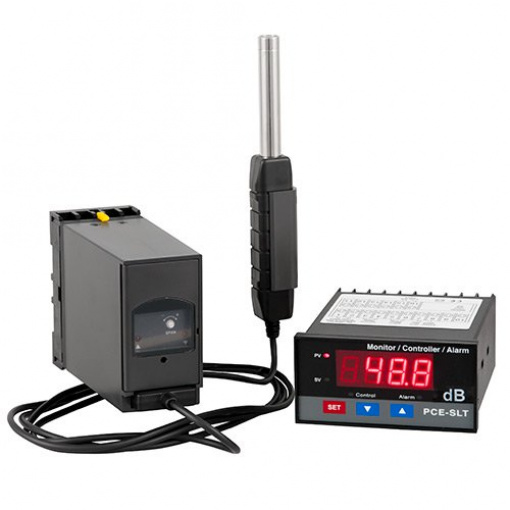

PCE-SLT is a class II (type 2) sound level, sound pressure level (SPL), decibel (dB) or noise meter with audible or visual alarm output capability. PCE-SLT is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92′ long cable and a transmitter.

***Includes digital indicator with IP 65 rating***
– Measuring range: 30 … 130 dB in 3 ranges
– Resolution: 0.1 dB
– Accuracy: ± 1.5 dB
– IP 54 ingress protection rating on transmitter offers limited protection against dust ingress (no harmful deposit) and protection against splashed water from any direction
– IP 65 ingress protection rating on digital indicator offers total protection against dust ingress and protection against low-pressure water jets from any direction. Limited ingress permitted.

Measuring range	30 … 130 dB in 3 ranges: I. 30 … 80 dB(A) II. 50 … 100 dB(A) III. 80 … 130 dB(A)
Resolution	0.1 dB
Accuracy	±1.5 dB
Frequency weighting	A
Power supply	Via transmitter
Cable length (sensor to transmitter)	1.5 m / 4.92′
Operating conditions	0 … 50°C / 32 … 122°F, max. 85% RH
Microphone	1/2″ precision electret
Standard	IEC 61 672 (Class II)
Transmitter
Housing	ABS plastic
Power supply	90 … 260 AC V
Calibration	Adjustable by set screw
Output	4 … 20-mA
Protection class	IP 54 ingress protection rating
Operating conditions	0 … 50°C / 32 … 122°F, max. 85 % RH
Digital indicator
Transmitter input signal	4 – 20-mA
Indicator	– 1999 … 9999 (1 … 3 decimals, according to the measurement value / chosen by the user)
Programming data (decimals, limit value ..)	Saved in the unit
Regulation output	3 points (Com, NO, NC)
Alarm output	Relay output: 5 A / 240V AC
Power	90 … 260 AC V / 50 … 60 Hz
Dimensions / Switchboard according to DIN	92 (+ 0.8) mm x 45 (+ 0.5) mm
Weight	Approx. 250 g / 0.56 lb
Operating conditions	0 …+50°C / 32 … 122°F, max. 85% RH
Protection class	IP 65 ingress protection rating
