Class 2 Data-Logging SPL Meter PCE-SDL 1

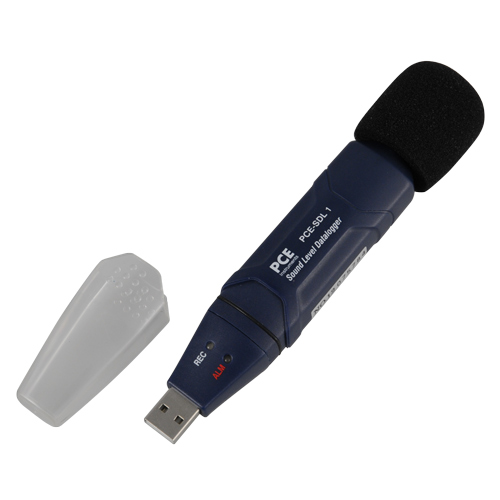

PCE-SDL 1 Data-Logging SPL Meter
Class 2 data-logging noise meter with USB interface and Windows-compatible software

PCE-SDL 1 is a class 2 (type 2) data-logging sound level meter, sound pressure level (SPL) meter, noise meter or decibel (dB) meter used for long-term acoustic measurements.

The Windows-compatible software included with the meter allows for the display of a progressive graph of the data collected. The software also enables the user to set alarm limits indicated on the meter via flashing LEDs.

– Measuring range: 30 … 130 dB
– Memory: Stores up to 129,920 data sets or 36 hours at 1-sec interval
– Includes USB interface and Windows-compatible software for data transfer to PC
– NORM (normal) and PEAK modes
– Adjustable alarm limits
– LED alarm indicators
– A and C frequency weighting
– Frequency range: 31.5 Hz … 8 kHz
– Adjustable measurement interval
– Date- and time-stamped data collection
– Manual and auto-start modes
– Standard: IEC 61672-1 (Class 2)

Measurement range	30 … 130 dB
Standard	IEC 61672-1 (Class II)
Accuracy	± 1.4 dB
Time weighting	Fast and slow
Frequency	31.5 Hz … 8 kHz
Storage capacity	129,920 data sets
Frequency weighting	A and C
Measuring rate	1 sec … 24 hrs
Operating conditions	0 … 40 °C / +32 … +104 °F , 10 … 75 % RH
Power supply	3.6 V battery
System requirements	Windows 2000 and up
Dimensions	Approx. 130 x 25 x 30 mm / 5.12 x 0.98 x 1.18″
Weight	Approx. 20 g / 0.05 lb
See user manual for complete technical specifications.
