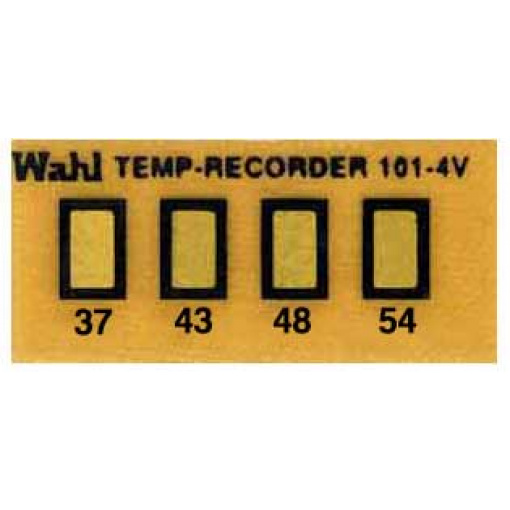

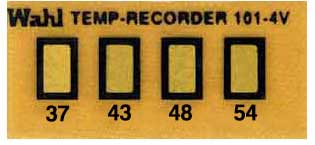

Mini Four Position IC Batch/Vacuum Chamber Temp-Plates
37-43-48-54°C
Model Number 101-4-037VC

This specialized Four-Position Temp-Plate is for monitoring overheat conditions directly on the surface of integrated circuits during wafer fabrication. Designed to withstand exposure to high heat, vacuums and corrosive gases when used in the demanding semiconductor industry. IC Batch / Vacuum Temp-Plates are priced, sold, and shipped in reclosable storage boxes of 10 labels of the same part number. Unit of measure is box. Temp-Plate cover material is Kapton only, reverse printed for vacuum Chamber use. .38″ x .82″ (10 x 21 mm).

All labels 120F/48C and below are considered low temperature and are shipped with an ice pack to prevent the labels from turning in transit. They are shipped by Fed Ex Express Overnight. These labels should be refrigerated upon receipt or they could turn before their intended use.

” No Minimum Order is Required”
