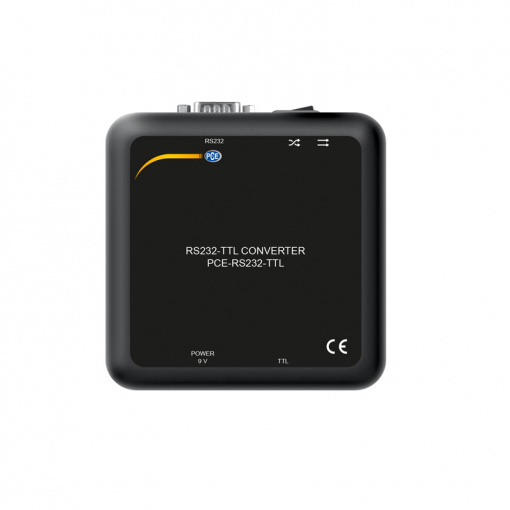

Interface Converter PCE-RS232-TTL

The RS232 TTL interface converter is a device-independent solution for converting an RS232 signal into a TTL signal. The RS232 TTL interface converter can also be used to convert a TTL signal into an RS 232 signal. If, for example, the RS232 TTL interface converter is to be used to evaluate the data output of a scale, which communicates via RS232, with the help of a microprocessor, the RS232 TTL interface converter can now be interposed between the transmitter and receiver.

When converting the signals, the RS232 TTL interface converter enables a transmission speed of up to 115,200 baud. The baud rate itself does not have to be set for the RS232 TTL interface converter. This is set by the RS232 TTL interface converter itself. In addition to converting a parallel signal, the signal can be switched to a crossed signal via the RS232 TTL interface converter by setting the switch. Thus the RS232 TTL interface converter can be used universally and quickly.



– for parallel and crossed connections
– transmission speed up to 115,200 baud
– low power consumption
– ready for use after applying the restoration
– 3.5 mm jack and SUB D 9 interface
– to adjust the signal level





Power supply	9 V DC via power pack
Max. current consumption	20 mA
Max. transmission speed	115,200 baud
Interface RS232	SUB D 9 (male)
Interface TTL	3.5 mm jack, 3 pin
Ambient conditions	-10 … +60 °C, <90 % r.H.
	not condensing
Dimensions W x H x D	100 x 35 x 100 mm / 3.9 x 1.3 x 3.9″
Weight	ca. 147 g / 5.1 oz
