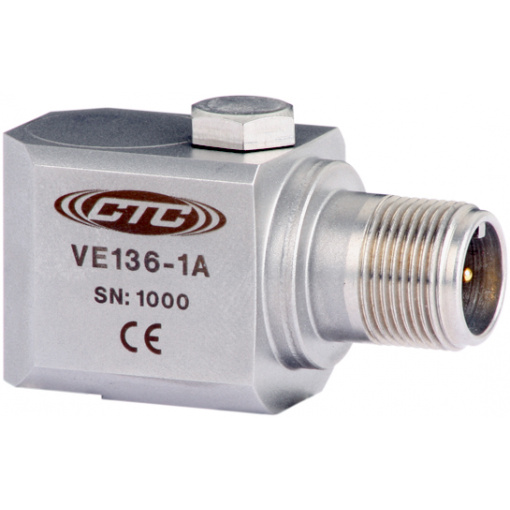

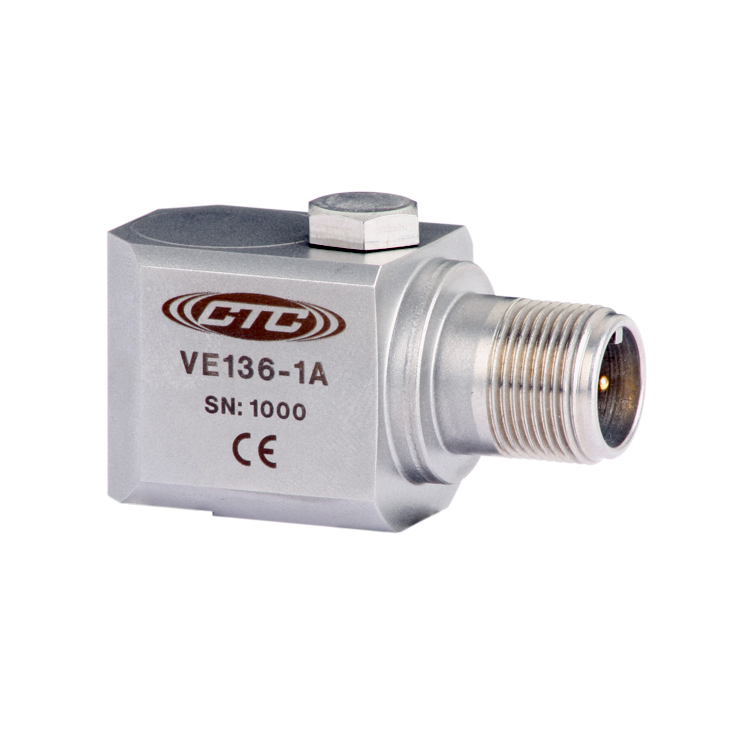

VE136 – Piezo Velocity Sensor, Side Exit Connector / Cable, 500 mV/in/sec

• Sensitivity: 500 mV/in/sec
• Frequency Response (±3dB): 90-420,000 CPM
• Dynamic Range: ± 10 in/sec. pk
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 2 Pin MIL-C-5015
• Max Temp: 250°F (121°C)

Options

VE136-1A�
Piezo velocity sensor, 500 mV/in/sec, side connector

VE136-2C�
Piezo velocity sensor, 500 mV/in/sec, side exit integral polyurethane cable

VE136-3C�
Low frequency piezo-velocity sensor, 500 mV/in/sec, side exit armor jacketed integral cable

VE136-6C
Low frequency piezo-velocity sensor, 500 mV/in/sec, side exit stainless steel armor protected integral cable, yellow Teflon® jacket, .190″ diam
