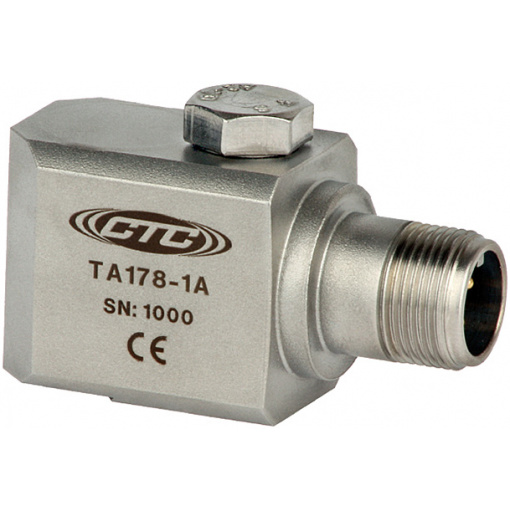

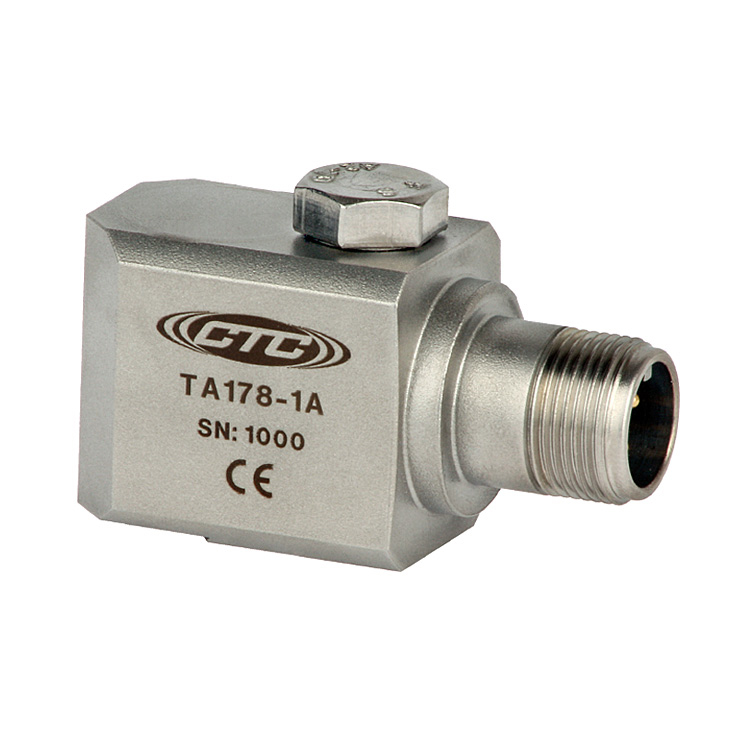

TA178 – Dual Output Temperature / Acceleration, M8 Captive Bolt, Side Exit Connector / Cable, 100 mV/g, 10 mV/K

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 30-600,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -40 to 250°F (-40 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 3 Pin MIL-C-5015
• Max Temp: 250°F (121°C)

Options

TA178-1A
Commtest compatible dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/K, side connector, with M8 captive bolt

TA178-2C�
Commtest compatible dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/K, side exit cable,10 ft., M8 captive bolt

TA178-3C
Commtest compatible dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/K, side exit cable, armor integral cable, M8 captive bolt
