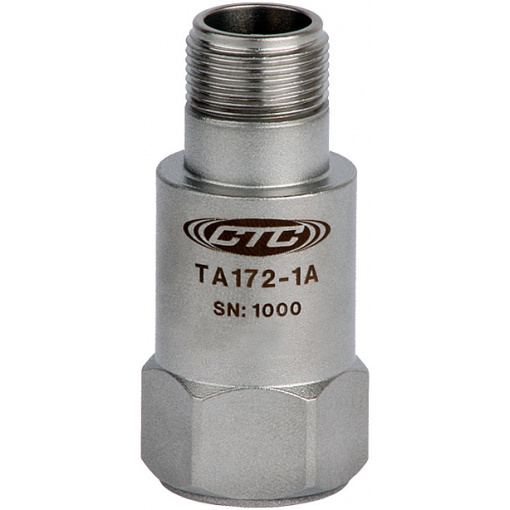

TA172 – Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 100 mV/g, 10 mV/K

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 30-900,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -40 to 250°F (-40 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 3 Pin MIL-C-5015
• Max Temp: 250°F (121°C)

Options

TA172-1A
Commtest compatible dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/K, top connector;

TA172-2C
Commtest compatible dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/K, top exit integral cable

TA172-3C
Commtest compatible dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/K, top exit, armor integral cable
