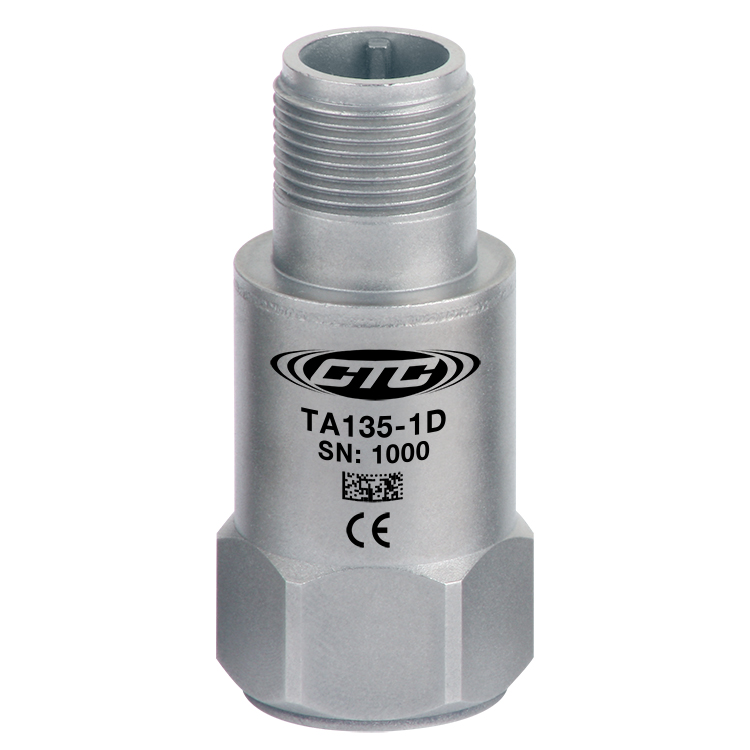

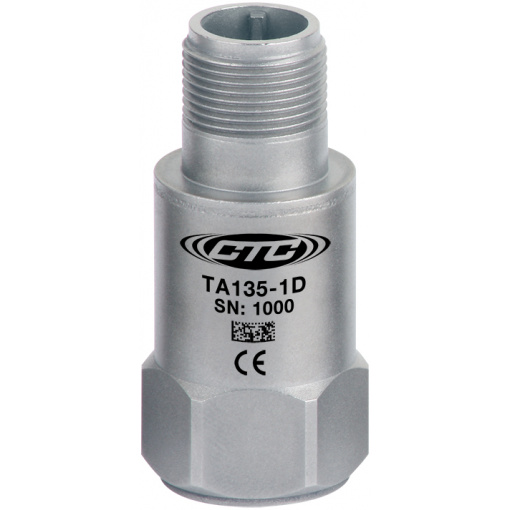

TA135 – Dual Output, Temperature / Acceleration, Top Exit Connector / Cable, 500 mV/g, 10 mV/°C

• Sensitivity: 500 mV/g
• Frequency Response (±3dB): 12-180,000 CPM
• Dynamic Range: ± 10 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -40 to 250°F (-40 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 3 Pin MIL-C-5015
• Max Temp: 250°F (121°C)

Options

TA135-1D
Dual Output, Temperature / Acceleration, 500 mV/g, 10 mV/°C, Top Exit Connector;

TA135-2D
Dual Output, Temperature / Acceleration, 500 mV/g, 10 mV/°C, Top Exit Integral Cable

TA135-3D
Dual Output, Temperature / Acceleration, 500 mV/g, 10 mV/°C, Top Exit Armor Jacketed Integral Cable
