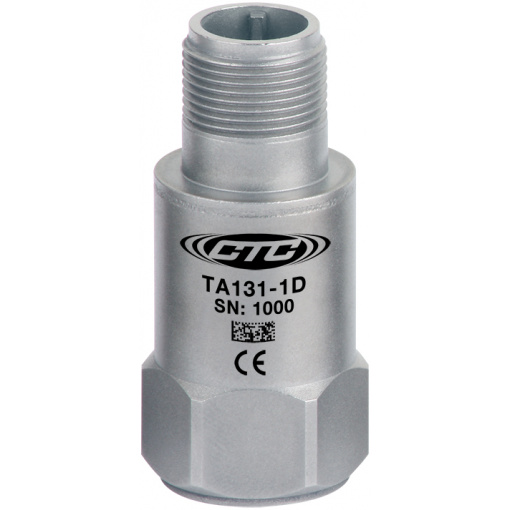

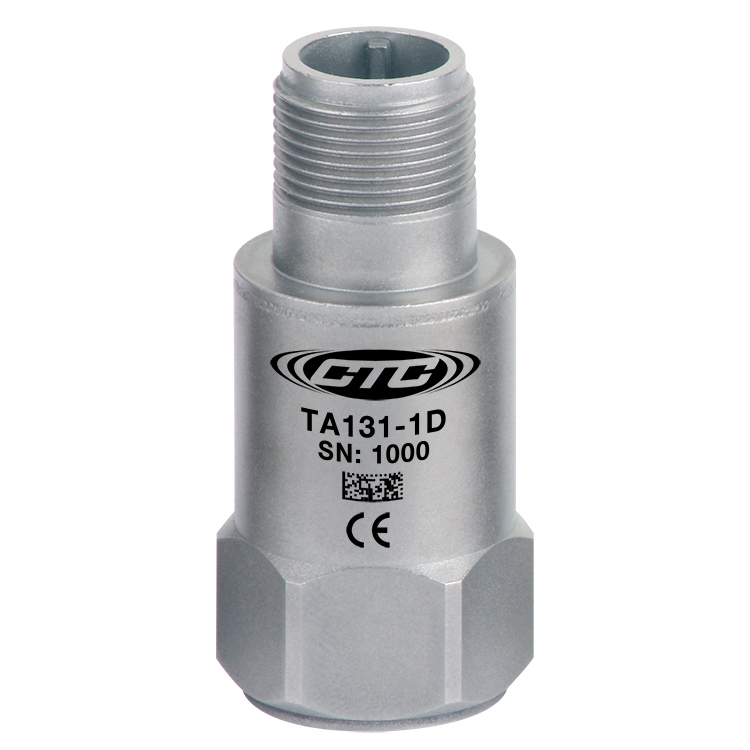

TA131 – Dual Output High g Accelerometer, Temperature / Acceleration Top Exit Connector / Cable, 10 mV/g, 10 mV/°C

• Sensitivity: 10 mV/g
• Frequency Response (±3dB): 72-900,000 CPM
• Dynamic Range: ± 500 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -40 to 250°F (-40 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 3 Pin MIL-C-5015
• Max Temp: 250°F (121°C)

Options

TA131-1DDual output sensor, Acceleration and Temperature, 10 mV/g, 10 mV/°C, 3 pin top exit connector

TA131-2D�
Dual output sensor, Acceleration and Temperature, 10 mV/g, 10 mV/°C, top exit integral cable

TA131-3D
Dual output sensor, Acceleration and Temperature, 10 mV/g, 10 mV/°C, top exit armor jacketed integral cable
